Simplex 4100ES Installation & Maintenance

4-8
The 4100 NIC, shown in Figure 4-5 below, inserts into its motherboard as follows:
 If the 565-274 Master Motherboard is being used, the NIC daughter card is
inserted into connector J1.
 If the 566-227 Master Motherboard or 565-275 Motherboard is used, the NIC
daughter card is inserted into connector J2.

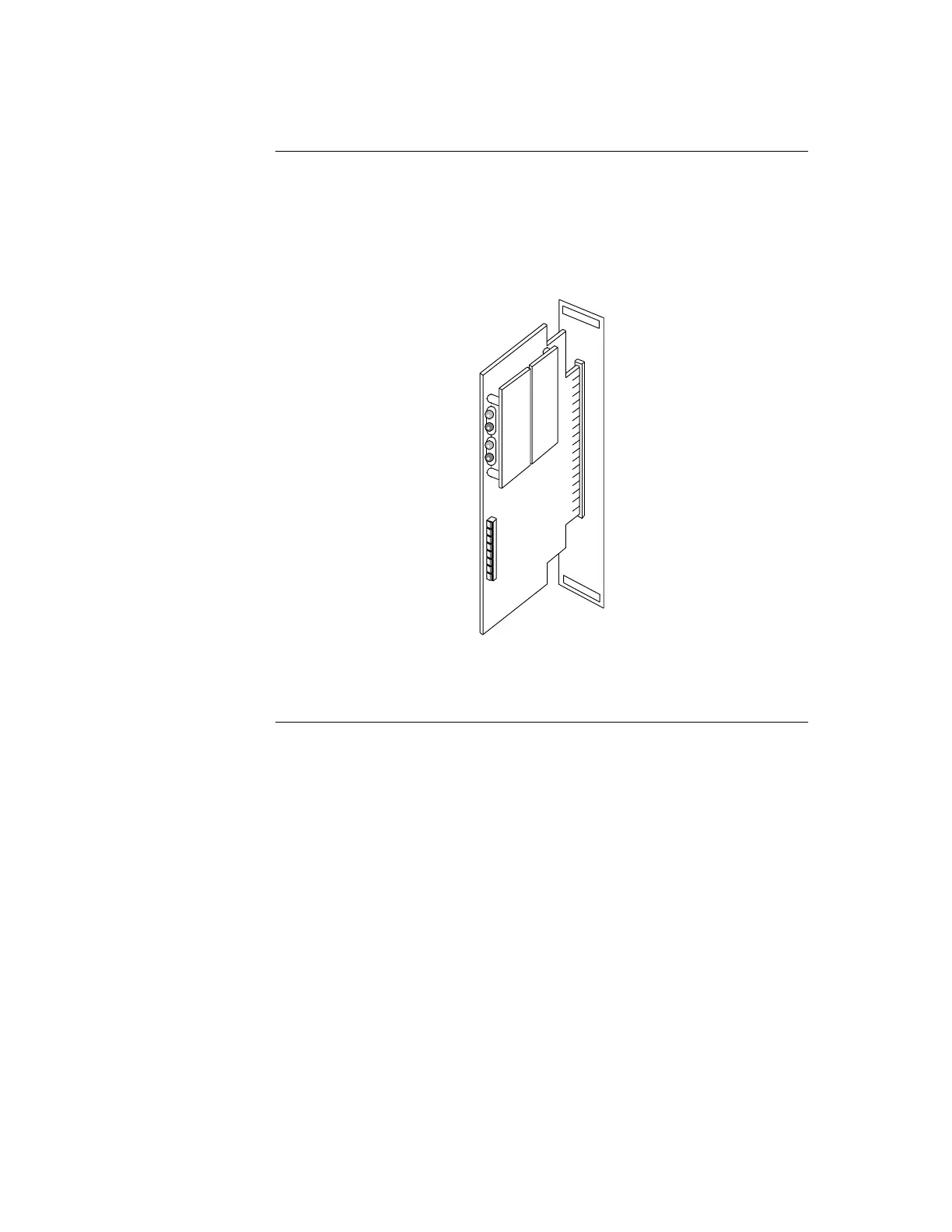

Figure 4-5. Installing the NIC
{xe "network interface card (NIC): mounting to motherboard"}{xe "mounting: NIC card
to motherboard"}
Step 3. Mounting Network Cards

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
