16
Chapter 2. 4100ESi Compact Panel
Mounting the cabinet
Mount the 15U cabinet vertically on four M8 studs or screws. Space the screws or studs 415 millimeters
horizontally and 450 millimeters vertically.

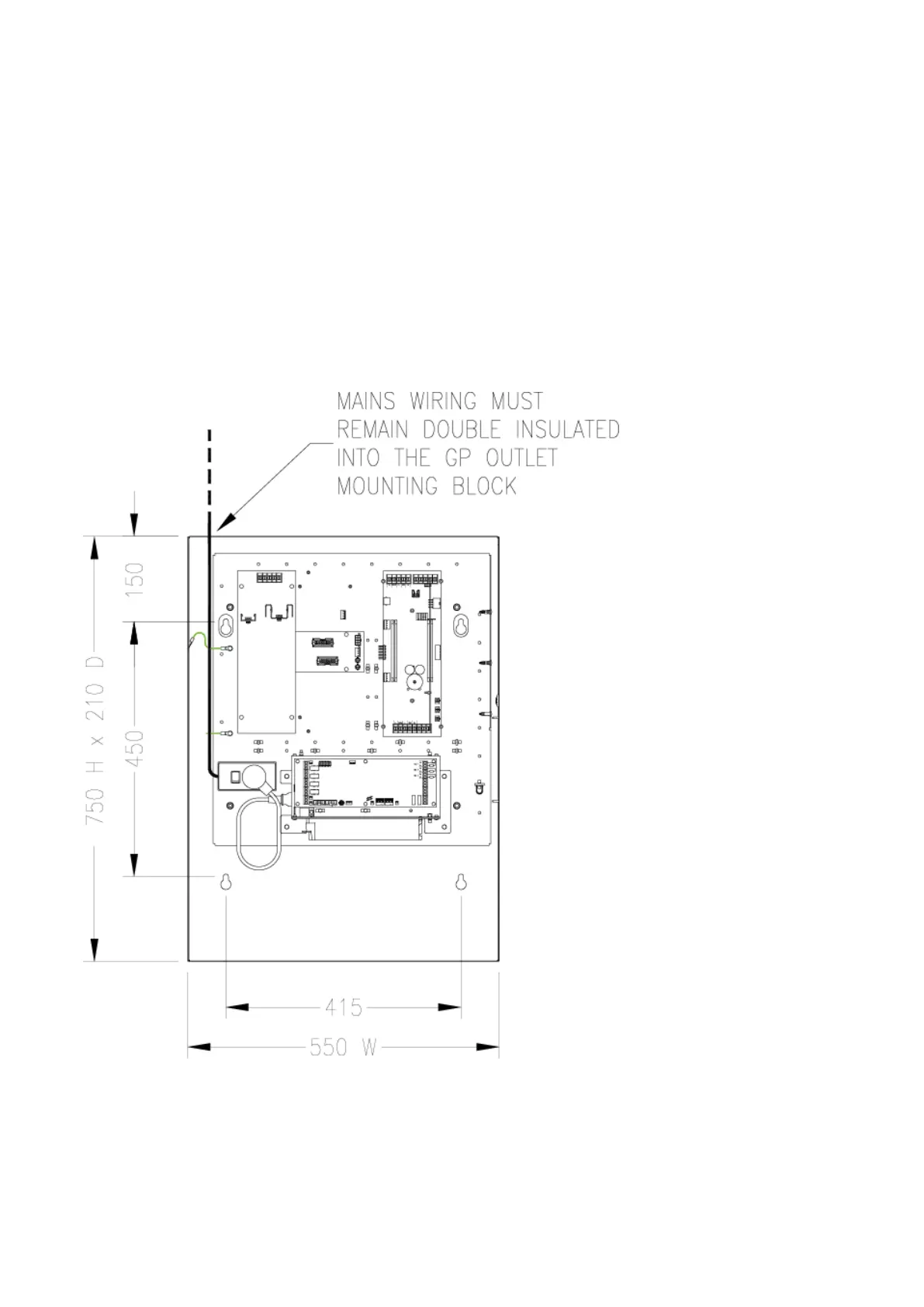

Figure 3. 15U compact cabinet mounting and mains wiring
AS1670.1 requires a clear space of 1 meter in front, and 0.5 meters on each side of all cabinets that are to be
used by emergency personnel. AS 1670.1 requires that the main touchscreen display (FBP), and all fan
controls are between 750 millimeters and 1850 millimeters above the floor.
