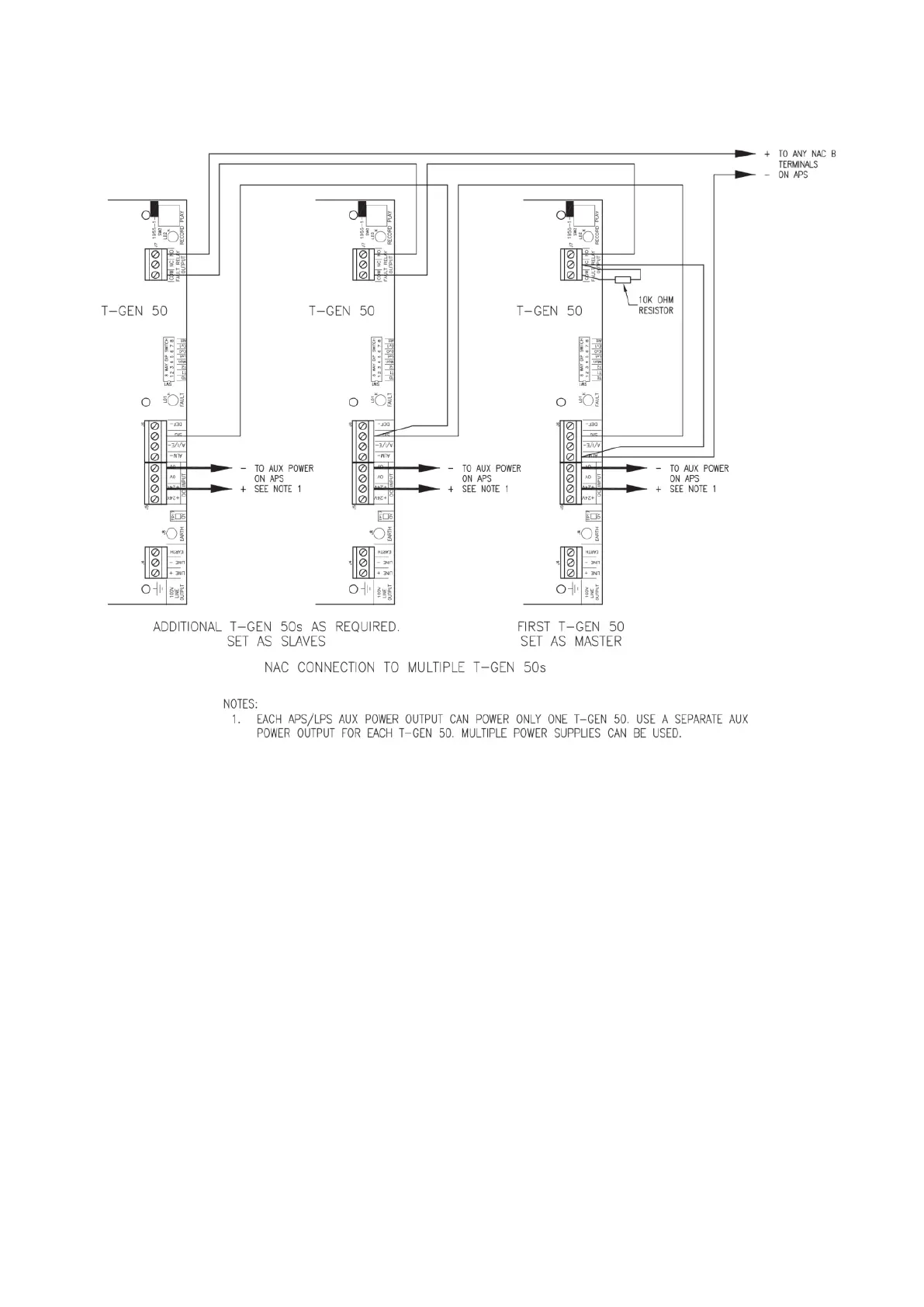

Figure13. Multiple T-GEN 50 wiring to the NAC
Adding fan controls or displays
General
The 4100ESi 15U Compact panel is supplied with one 7U display door, in addition to the touchscreen
interface. The door is supplied fitted with 8 blank plates which completely fill the opening in the display door.
These blank plates can be replaced with alternative modules for various functions, such as:
⋅ Switch/LED indicator modules for displaying the alarm and disable status for eight zones. These can also be
used for other display or control functions.
⋅ AS1668 fan controls for four fan systems.
⋅ Mounting plates for the ASE brigade transmission equipment and PA microphone.
The Switch/LED indicator modules are configured using the ES Programmer. Each display module contains
between 8 and 24 switches and LEDs that are configured individually. See Appendix F for a list of available
display modules.
