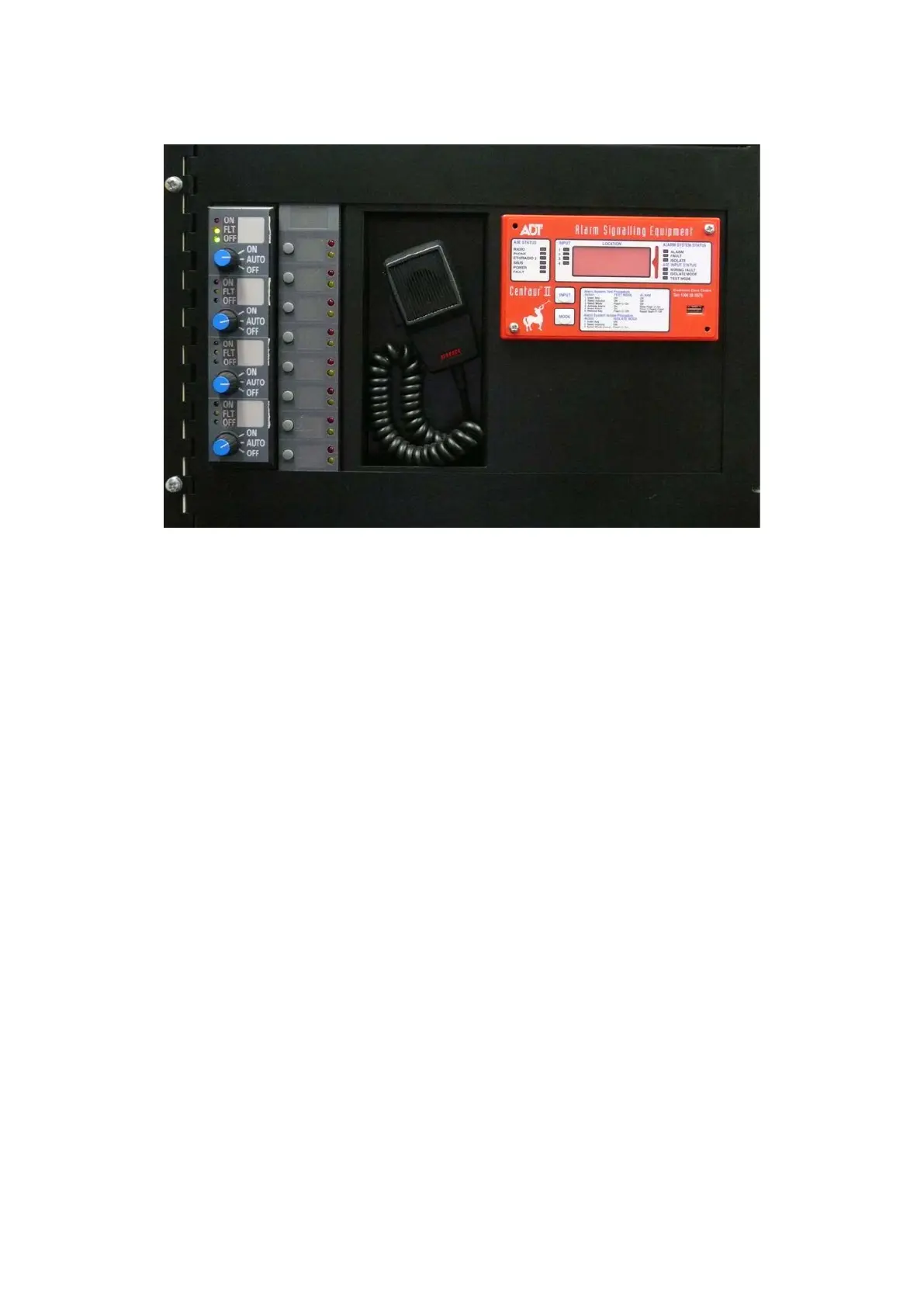

Figure 9 4100-ME0513K Brigade Kit with ME0490 Microphone
Wiring
The T-GEN 60 must be powered from the LPS VAUX+ outputs. All three VAUX+ outputs must be paralleled up
to provide the peak current needed by the T-GEN 60 at full load. If the T-GEN 60 load (including strobes) is less
than 20W, one VAUX output is sufficient, if it is between 20W and 40W (including strobes) two VAUX outputs
in parallel will be sufficient. No special programming of the VAUX outputs is required.
The Alarm Devices NAC output (normally NAC 1) is wired to the T-GEN 60 as shown here.
To Next Page
