Chapter 7. Remote Fire Brigade Panel
The Remote Fire Brigade Panel is a specialised Remote Transponder Unit (RTU). The remote Fire Brigade Panel
provides one or more remote user interfaces to a 4100ESi system for use by Fire Brigade members, local
building supervisors, or service personnel.
Mounting the cabinet
Mount the 8U cabinet on a wall using four M8 screws or studs. Space the screws or studs 430 millimeters
horizontally and 280 millimeters vertically.

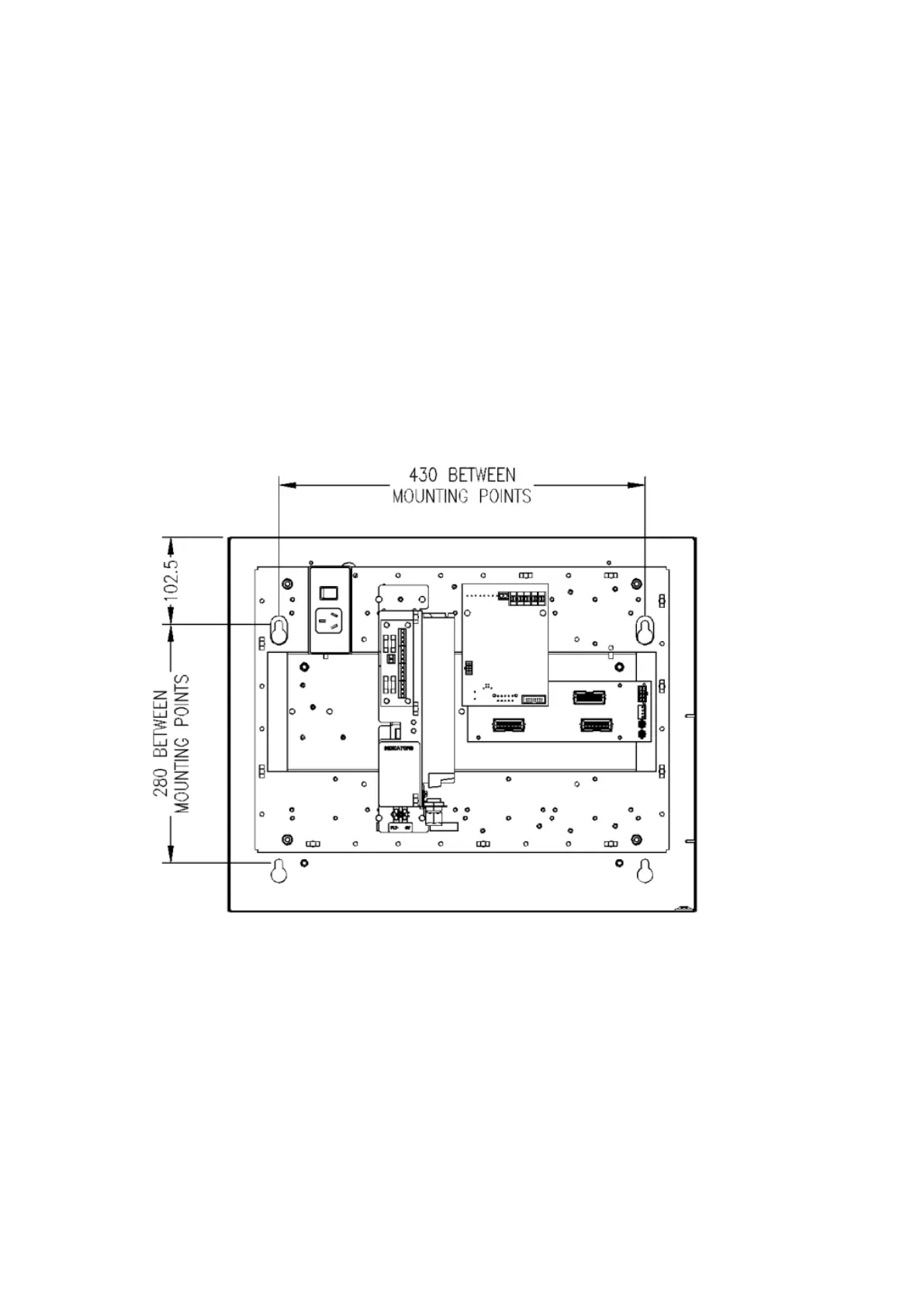

Figure 52. Mounting the remote Fire Brigade panel cabinet
Cabinet connections
Mains power
Wiring the FP1048 Remote Fire Brigade Panel to the mains outlet must be installed by a suitably qualified
person. Ensure the 4100ESi is wired with a dedicated current limited mains supply, complying with the
requirements outlined in AS/NZS 3000 Wiring Rules. Ensure the outer sheath of the mains cable extends into
the mounting block of the mains outlet. The earth wire connects to the earth terminal on the gear plate.
