Appendix E Card configuration DIP
switch
Overview
Addressable cards include a bank of eight DIP switches. From left to right see Figure 61, these switches
are designated as SWx-1 through SWx-8. The function of these switches is as follows:
⋅ SWx-1. This switch sets the baud rate for the internal 4100 communications line running between
the card and the CPU. Set this switch to ON.
⋅ SWx-2 through SWx-8. These switches set the card’s address within the 4100 FIP. Refer to Table
A-1 for a complete list of the switch settings for all of the possible card addresses.
You must set these switches to the value assigned to the card by the ES Programmer.

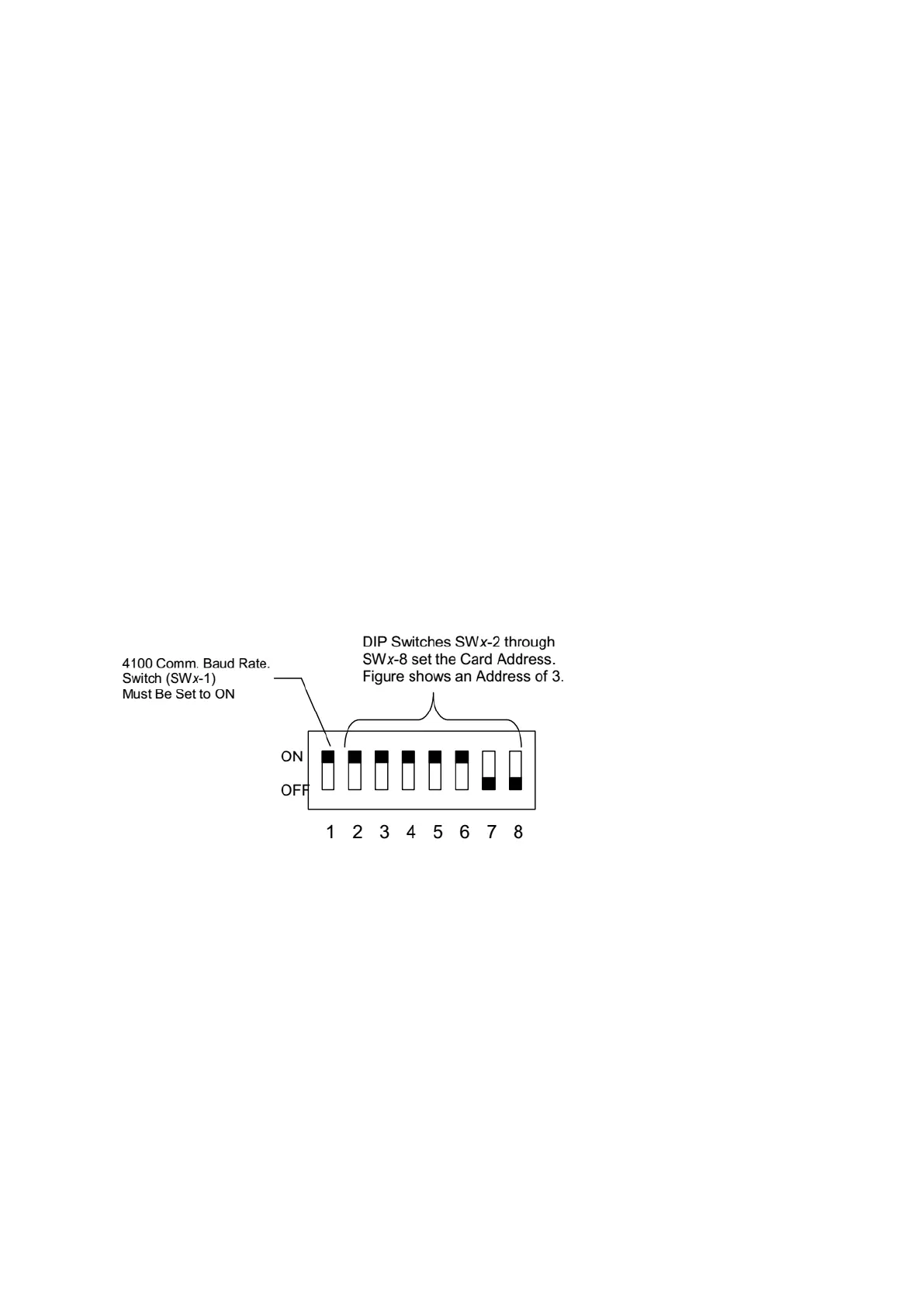

Figure 61. Setting the DIP switches
