23

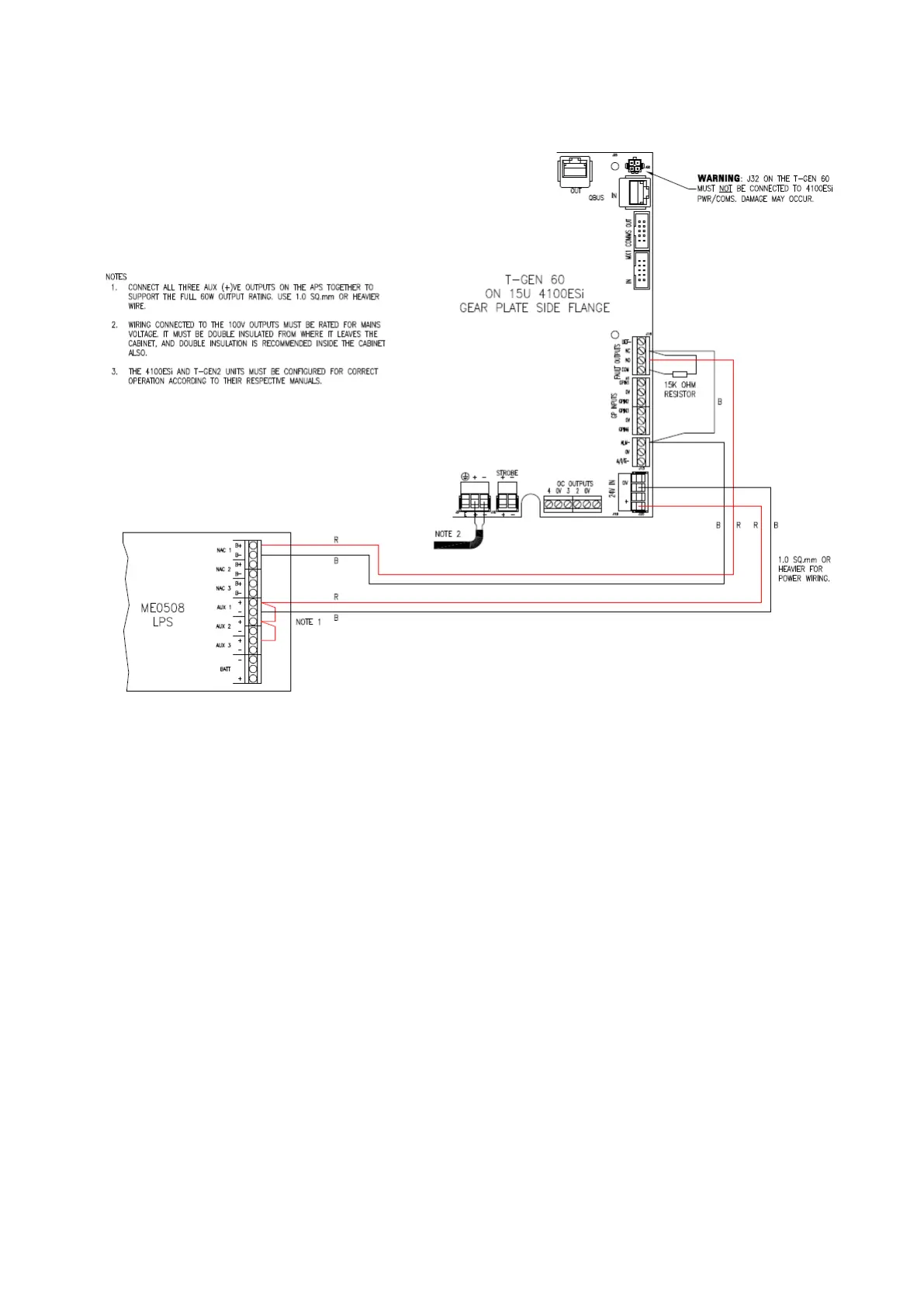

Figure 10 Wiring diagram for T-GEN 60 in 15U Panel
Wiring for the FP1117 100V Switching Module is covered in its supplied Installation Instructions (LT0668).
Wiring for the FP1118 100V Splitter Module is covered in its supplied Installation Instructions (LT0671).
Configuration
The T-GEN 60 must be configured with the 4100ESi default configuration using the SmartConfig tool, to select
the appropriate alarm input for connection to the 4100ESi LPS. The T-GEN 60 Installation Instructions
(LT0667) describe how to change the default configuration in the T-GEN 60.
If preparing a specific configuration using SmartConfig, use the 4100ESi default template as the starting point.
If more power output is required, an additional cabinet and PSU will be required to house extra T-Gen2 units,
PSUs and batteries. Refer to section Adding a T-GEN 60 in an Expansion Cabinet.
