17
Mains wiring
Ensure the 4100ESi is wired with a dedicated current limited mains supply, complying with the requirements
outlined in AS/NZS 3000 Wiring Rules. Install the incoming mains cable entering the cabinet top or bottom on
the left side as shown in Figure 3. To meet the Australian electrical safety requirements, the outside sheath of
the mains cable must continue into the body of the mains outlet mounting block.
Batteries
Up to 33Ah batteries fit in the 4100ESi Compact panel, without restricting the option to fit additional displays
or other hardware on the lower display door.
If a larger battery is required to meet standby requirements, mount an expansion cabinet, part code FP1029,
below the 15U cabinet to house this battery. This expansion cabinet can hold a battery of up to 80Ah. Figure 4
shows the battery installation for this situation.

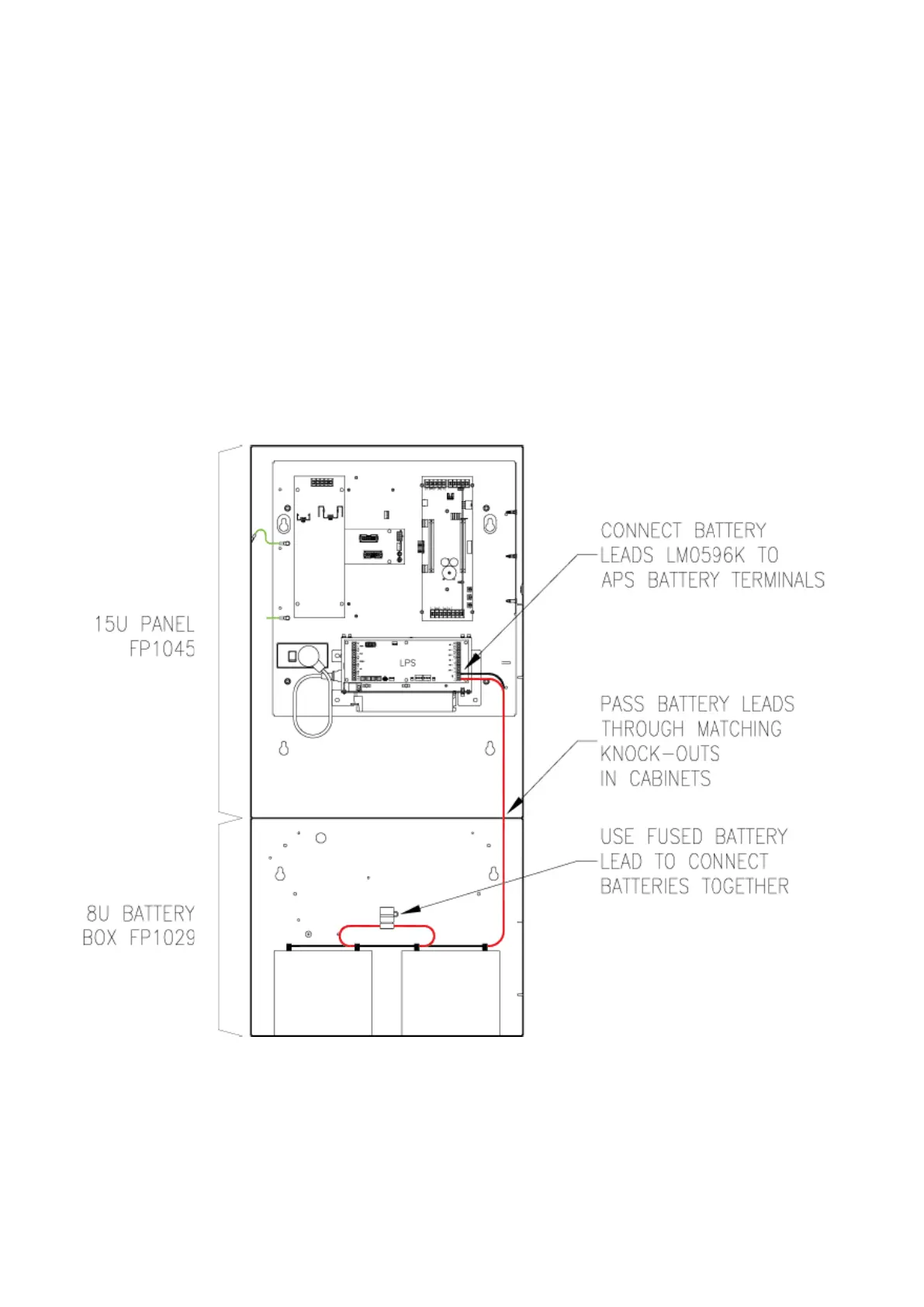

Figure 4. Connection of batteries in the expansion cabinet
