34

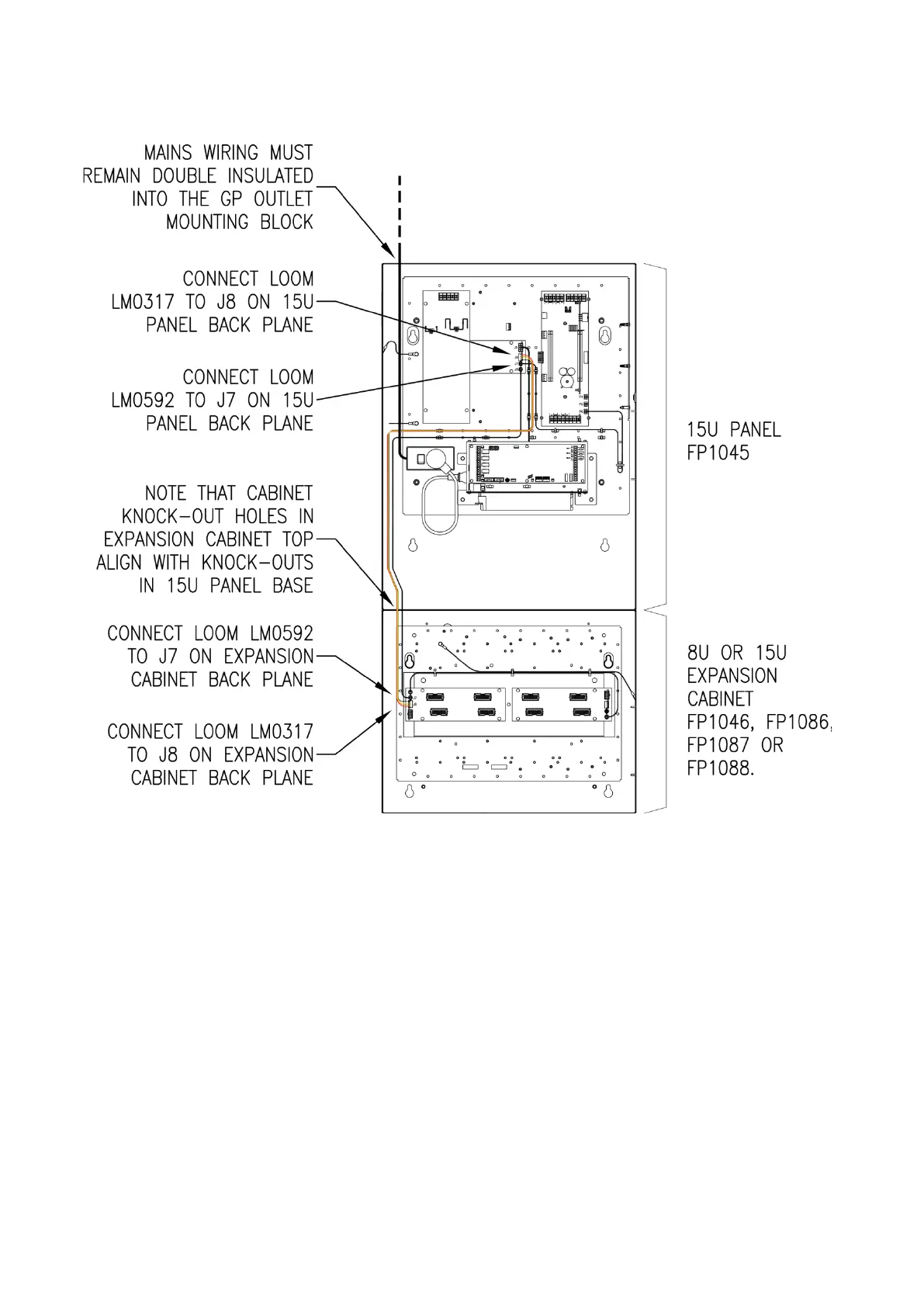

Figure 19. Installing the looms
Use LM0596K battery leads to connect the APS Battery Terminals to the batteries in a battery box. Pass the
leads through matching knockouts in the battery box and 15U cabinet. Use the fused battery lead to connect
the batteries together.
Adding a MX Loop Card
It is possible to add additional MX Loop Cards to the expansion cabinets.
Purchase additional loop cards using part number 4100-6077AU.
Flat mounting
Flat mount up to two MX loop cards in an expansion cabinet. Mount the MX Digital Loop Card, in either
orientation, on the PDI backplane that has the LM0317 power interconnection loom connected. Fasten it to the
support pillars with the screws supplied in the MX Digital Loop Card kit. The MX Loop Card requires card power
and signal power for operation. The signal power is from the LM0317.
