Mounting a T-GEN User Interface
The FP1123 T-Gen2 User Interface provides a Grade 3 User Interface for controlling T-GEN 2, and a
microphone for making paging or emergency speech announcements. It is connected to the master T-GEN 2
via the cables included.
If only the PA microphone is needed, then either of the 4100-ME0512K or 4100-ME0513K brigade kits can
be fitted in a 7U display door (see Adding an ASE), or an FP0935 / FP0937 4U Brigade Door can be fitted to
the cabinet. From each of these options, the ME0490 microphone is wired to the master T-Gen2.
Adding a bay
Use part number 4100-KT0446 to order additional bays to fit to an existing cabinet.
For the 4100ESi panel, mount the bays to the rear of the cabinet. Fit the four M4 screws supplied to the correct
holes in the mounting rails on the back of the cabinet. Hang the expansion bay on the screws and tighten.

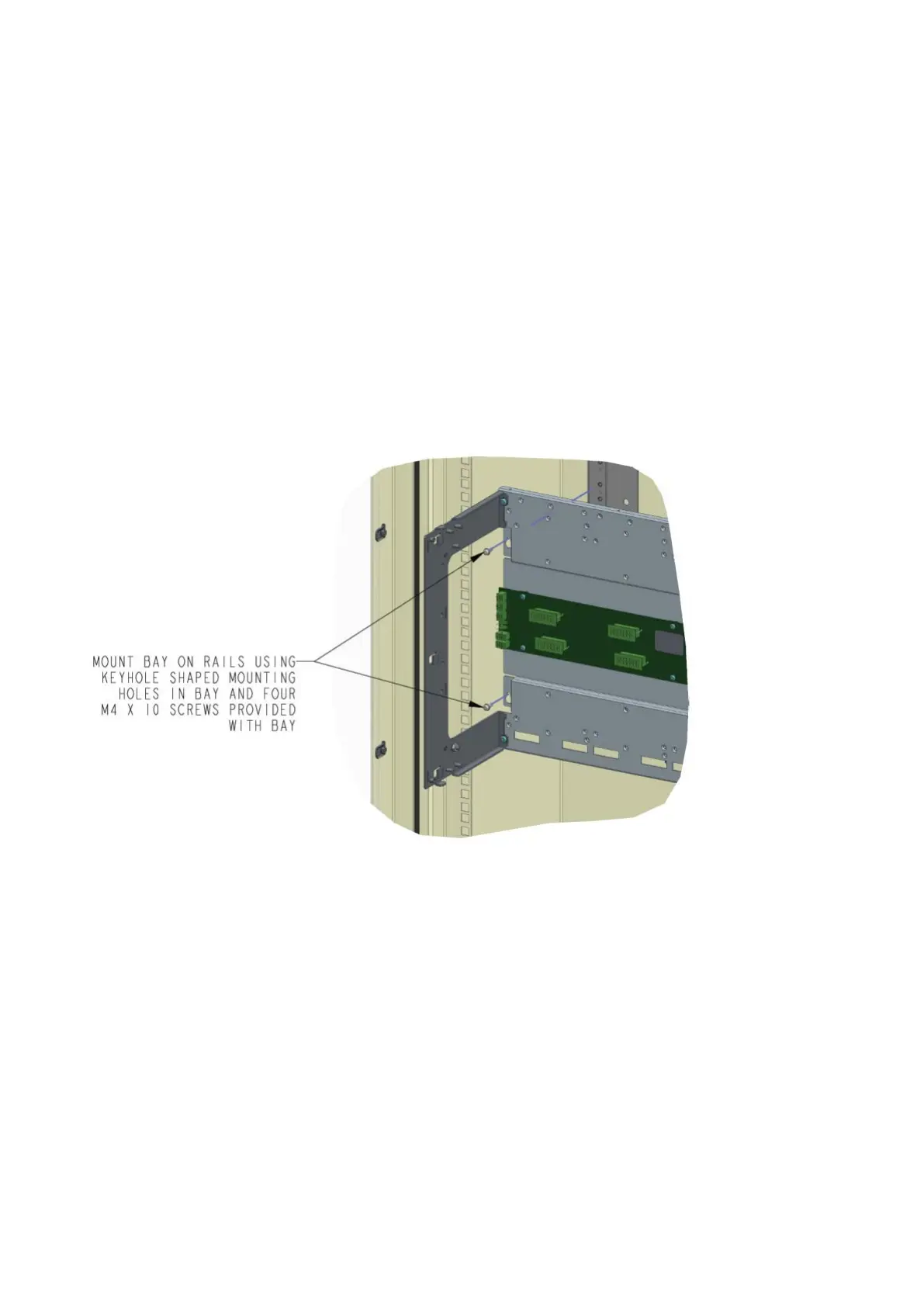

Figure 45. Mounting the expansion bay in a BTO cabinet
Network card installation
Multiple 4100ESi and other 4100 series panels can be interconnected to form a networked fire alarm system.
The connections between panels are paired copper cable or multimode fibre. The panels contain a
4100-6078 NIC, and each NIC has two media cards matching the connection types between the panels.
For information about mounting and configuring the network card see Chapter 6, Network card installation.
Adding fan controls or displays
4100ESi panels are supplied with one or more 7U display doors, in addition to the touchscreen interface.
These additional doors are supplied fitted with 8 blank plates, filling the opening in the display door. These blank
plates can be replaced with other modules with indicators or controls.
