2.4 Follow-Up steering (FU)
When both the PORT and STBD push buttons are pressed
simultaneously the autopilot is set to Follow-Up mode and
rudder commands can be set by the course knob. One revolution
of the knob equals 44° rudder command. The commanded rudder
angle is shown on the display and the rudder will move to the
commanded angle and stop.
Note ! The maximum rudder angle is limited to the LO rudder limit
setting. Refer to paragraph “View parameters” on page 104.

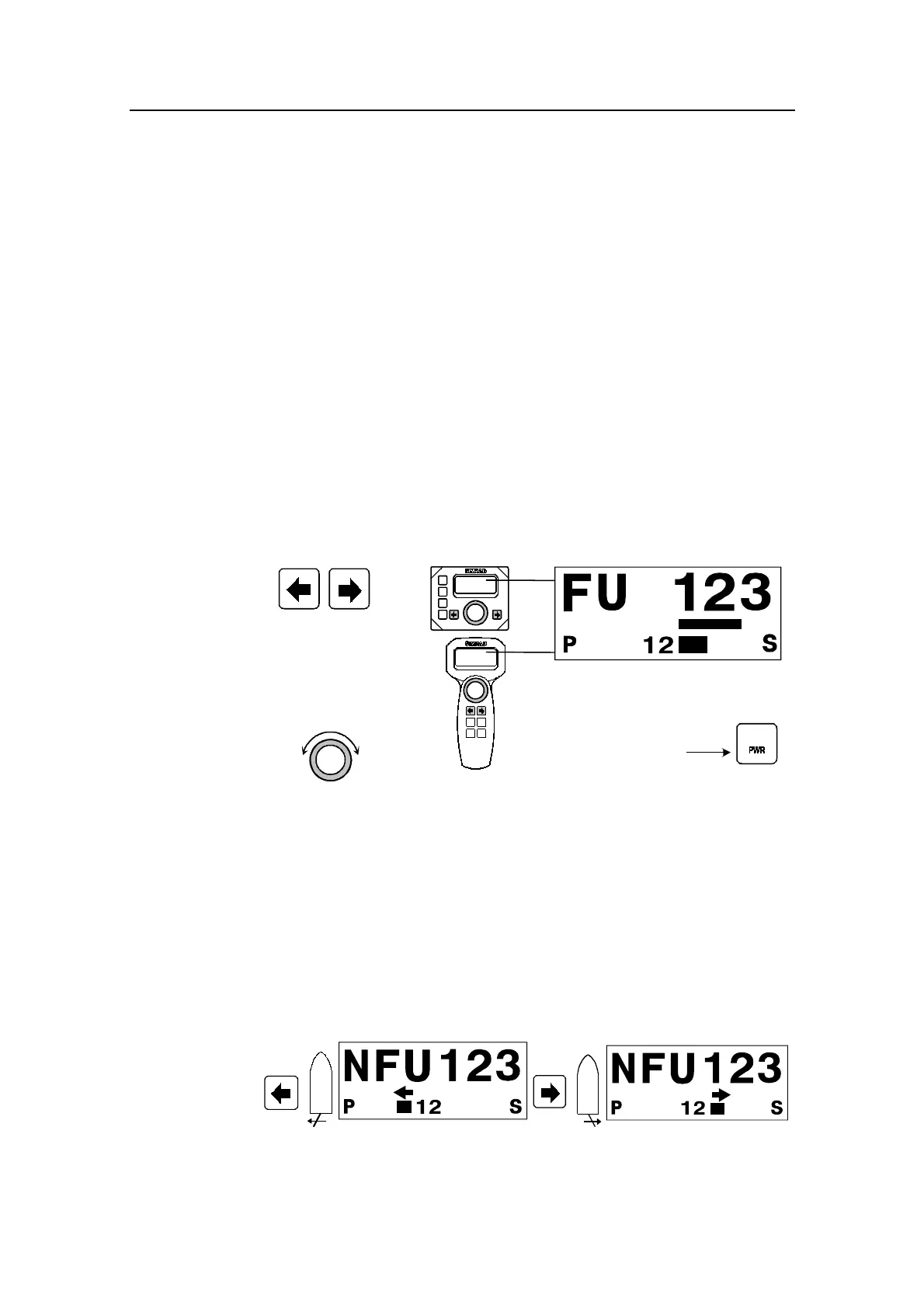

Follow-Up mode. Current heading.
Commanded rudder angle 22° to stbd.
Rudder angle: 12° to stbd.
22
Press both buttons
simultaneously to
activate Follow-Up
Use course knob to
command rudder angle
P
S
STBY
Return to manual control
in STBY by pressing:
WARNING ! While in Follow-Up mode, you cannot take manual control
of the wheel.
2.5 Non-Follow-Up steering (NFU)
When PORT or STBD push button is pressed in STBY mode the
NFU display is presented. The rudder will move as long as the
button is pressed and the actual rudder angle is shown on the
display.
PORT Rudder Command STBD Rudder Command
To Next Page
