Simrad AP21 and AP22 Autopilots
40 20220596G
3.3 AP21 Control Unit
Dimensions:............................... See Figure 3-2
Weight: ...................................... 0,57 kg (1,25 lbs)
Power consumption ................... 3 W
Display:
Type: ................................. Backlit LCD matrix display
Resolution:........................ 80 x 32 pixels
Colour:....................................... Black
Illumination: .............................. Adjustable in 10 steps
Environmental Protection:......... IP56.
Safe distance to compass:.......... 0.3 m (1’)
Temperature:
Operating: ......................... 0 to +55 °C (+32 to +130 °F)
Storage:............................. –30 to +80 °C (–22 to +176 °F)
Mounting: .................................. Handheld or mounted in a fixed, bracket mount.
Cable.......................................... 7m (23’) special Robnet cable with air tube.

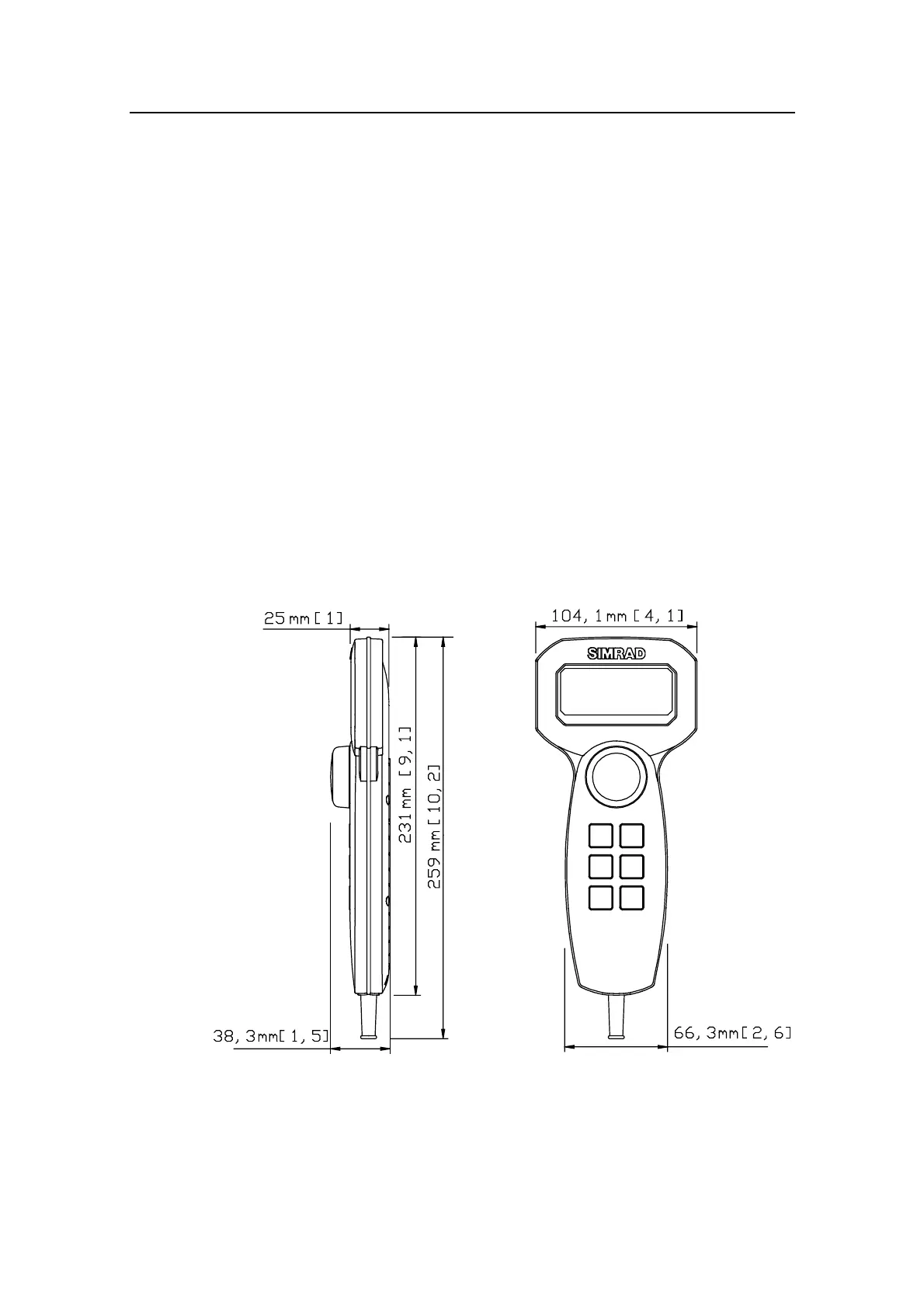

Figure 3-2 AP21 Control Unit - dimensions
