Installation
20220596G 73
4.17 S35 NFU Lever installation
The unit is mounted to bulkhead or panel by two screws from the
front. The cable is connected to the junction unit according to
Figure 4-17. Interchange the port and stbd wires to the screw
terminals in the junction unit if necessary to make the direction
of the lever movement coincide with the direction of the rudder
movement.
TB6
J3000X/J300X JUNCTION UNIT
POWER PCB
TB3
TB4
TB5
TB7
S35
STEERING LEVER
TB1 TB2
Lamp
Stbd
Port
Gnd
Brn/Wh
Pnk/Gry
Yel
Grn
NOTE!
Disregard the color code
on the terminal label.
REMOTE

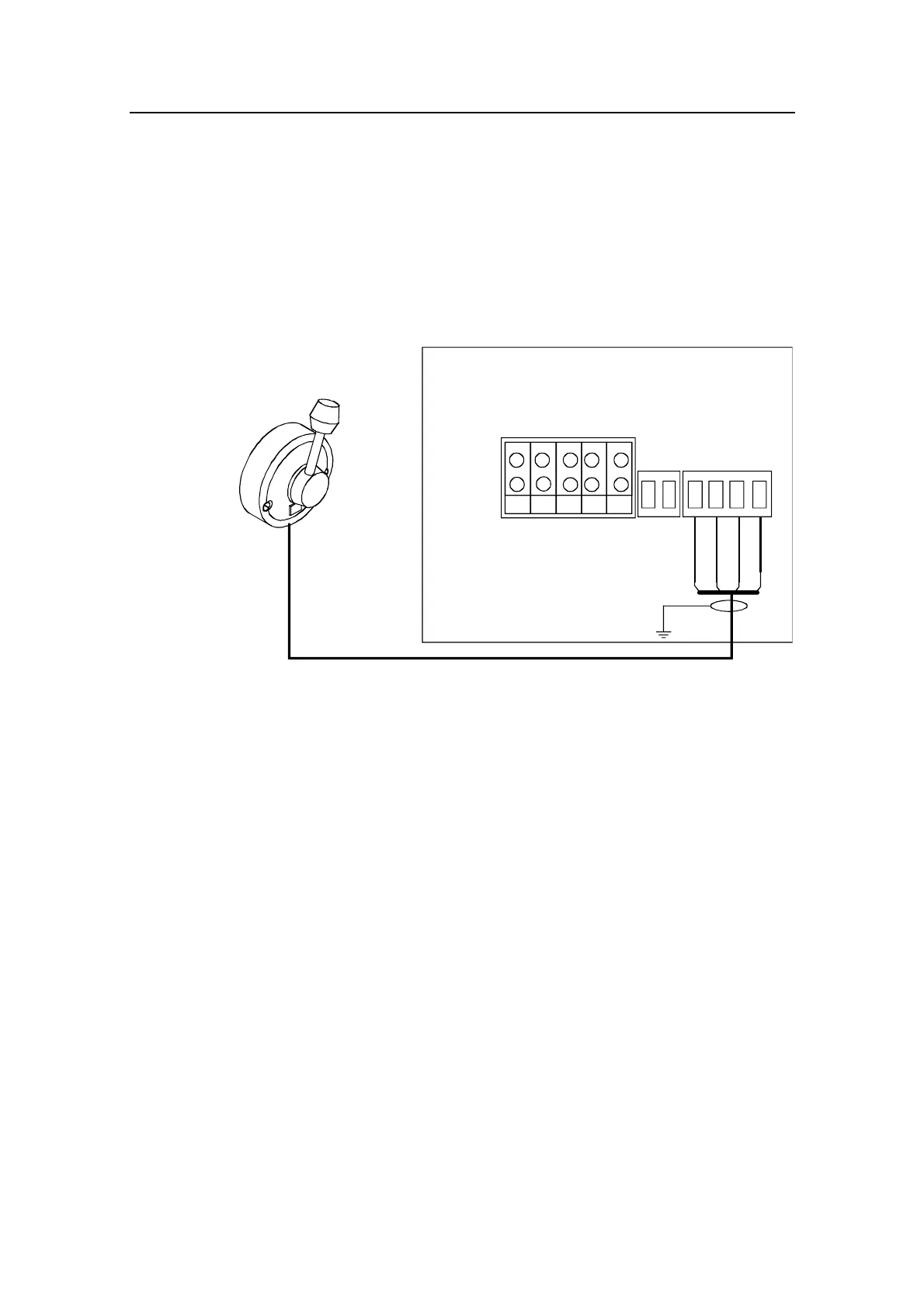

Figure 4-17 S35 connection
The unit is opened by removing the three screws on the back
cover. Inside are two sets of micro-switches, a printed circuit
board with a plug-in terminal and a jumper strap.
