Simrad AP21 and AP22 Autopilots
70 20220596G
Use the supplied mounting kit and drill the holes through the
centre of the slots in the sensor or the mounting brackets.
Note ! The compass face plate on the RFC35 is the TOP. Never mount it
upside down! Level the sensor as close to horizontal as possible.
RFC35
FLUXGATE
COMPASS
JUNCTION UNIT
MAIN PCB
Heading
Sensor
*
* NON POLARIZED
(COLOR INDEPENDENT)
HS+
HS-

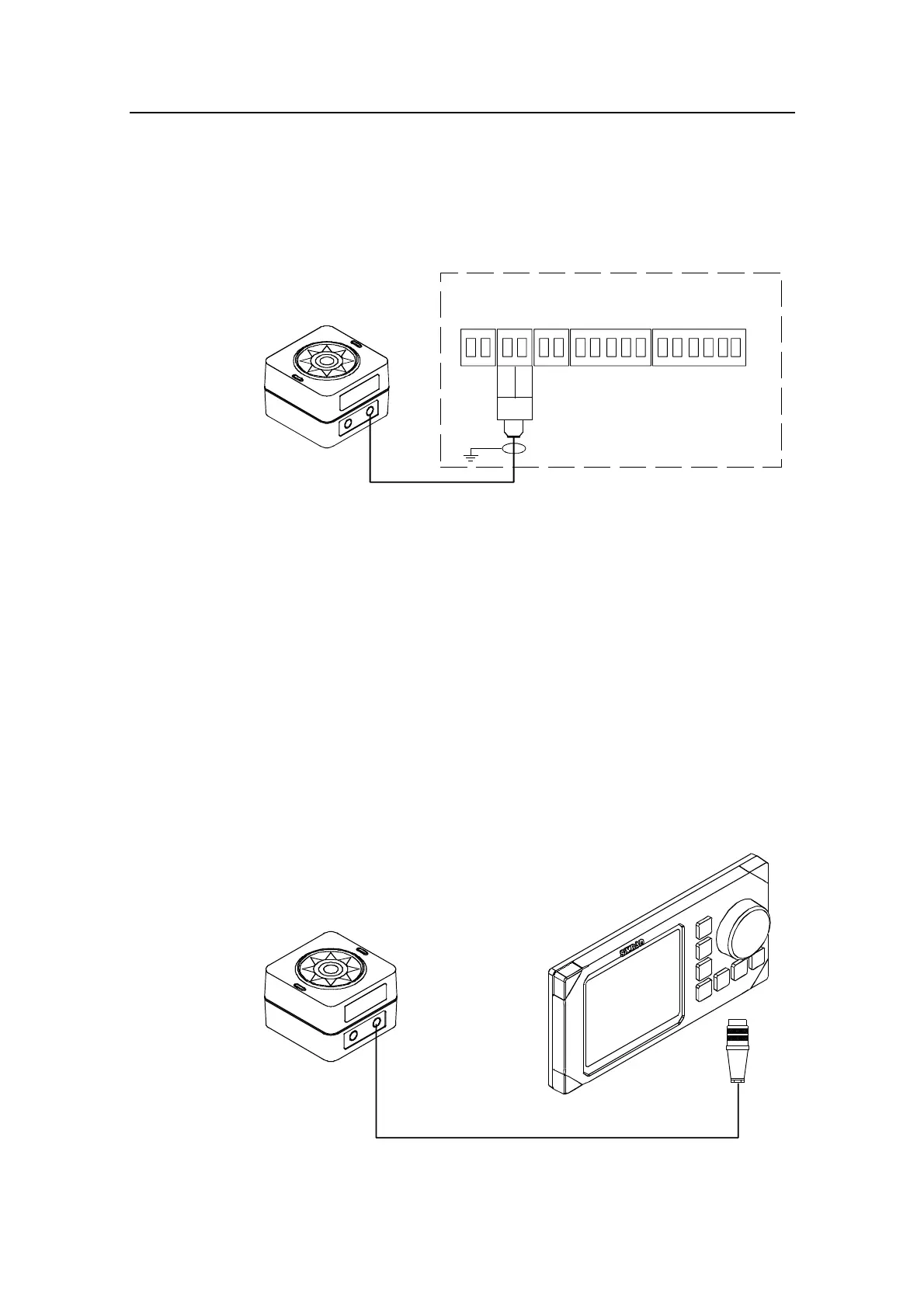

Figure 4-13 RFC35 connection
• Select RFC = J300X in the Installation Interface Set-up
• Select RFC as compass in the User Set-up menu
4.15 RFC35R Rate Compass installation
The RFC35R Rate Compass also contains a magnetic fluxgate
sensor, which means you have to take the same precautions at
installation as for the standard RFC35 (see previous page). On
steel hull boats, however, it should be installed 0,75-1 meter
(2,5-3 feet) above the steel deck to obtain optimum performance.
• Connect the Robnet connector to the AP22 Control Unit (or
CI300X or NI300X if installed).
RFC35R
RATE
COMPASS
AP20
(AP22, AP35, AP300X)
Figure 4-14 RFC35R connection to autopilot control unit
