Installation
20220596G 67

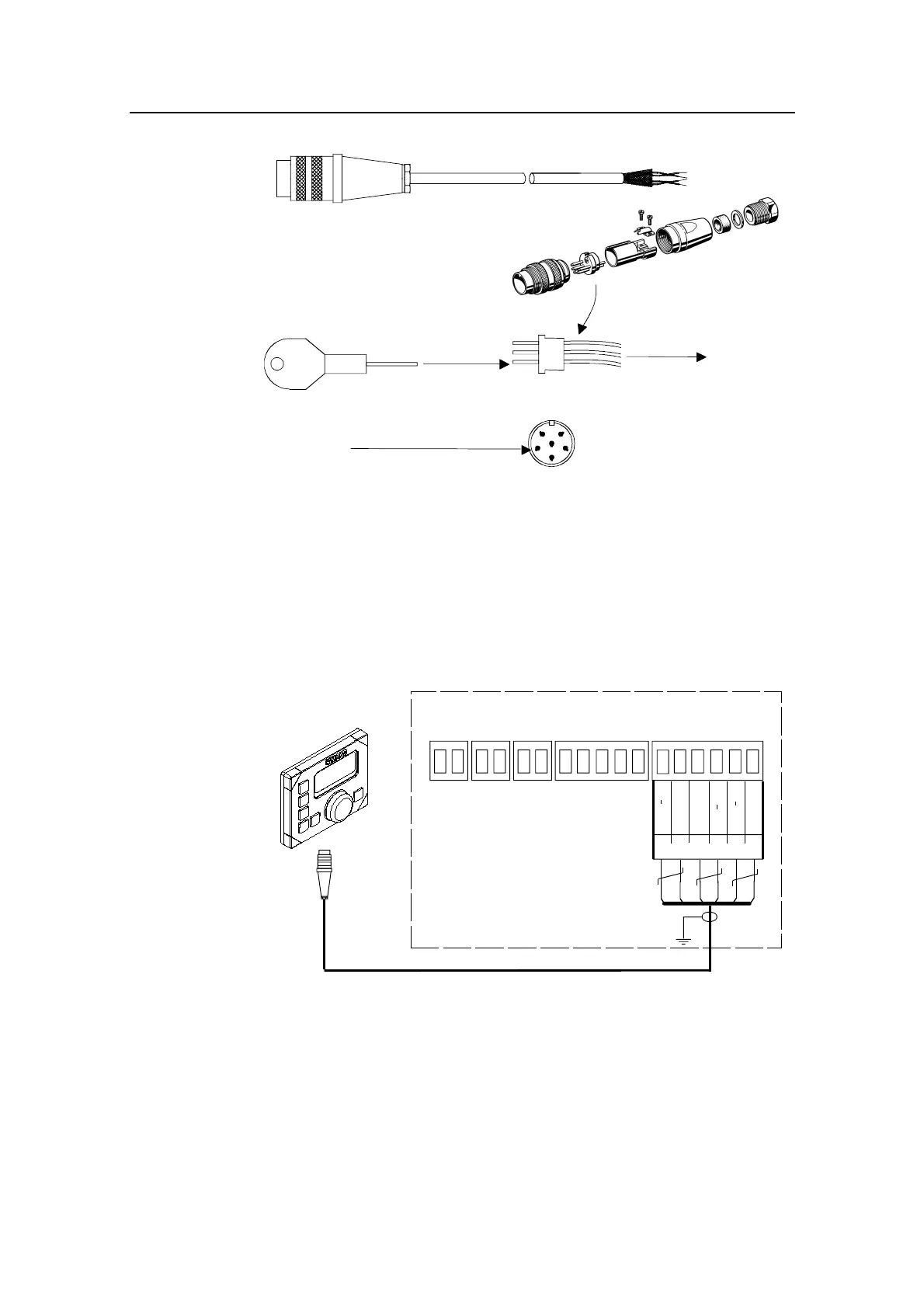

HOW TO REMOVE PINS:
Extraction tool
Pull the wire
Insert tool in slot
Note ! For installations that require special cable length, contact your
Simrad distributor for information.
4.13 Control unit connection
AP22 connection
On-Off
Vsys+
JUNCTION UNIT
MAIN PCB
ROBNET
Bus+
Vsys
Alarm
Wh
Bn Gn
Bus
Pnk Gry
Yel
AP22
CONTROL UNIT
Figure 4-10 AP22 Control unit connection
AP21 connection
If the AP21 control unit is part of the system, use the Robnet
connector in a free receptacle (see Figure 4-9). Alternatively cut
the connector from the cable and connect the wires in parallel
with the cable shown on Figure 4-10 using the same colour code.
