Technical specifications
20220596G 49

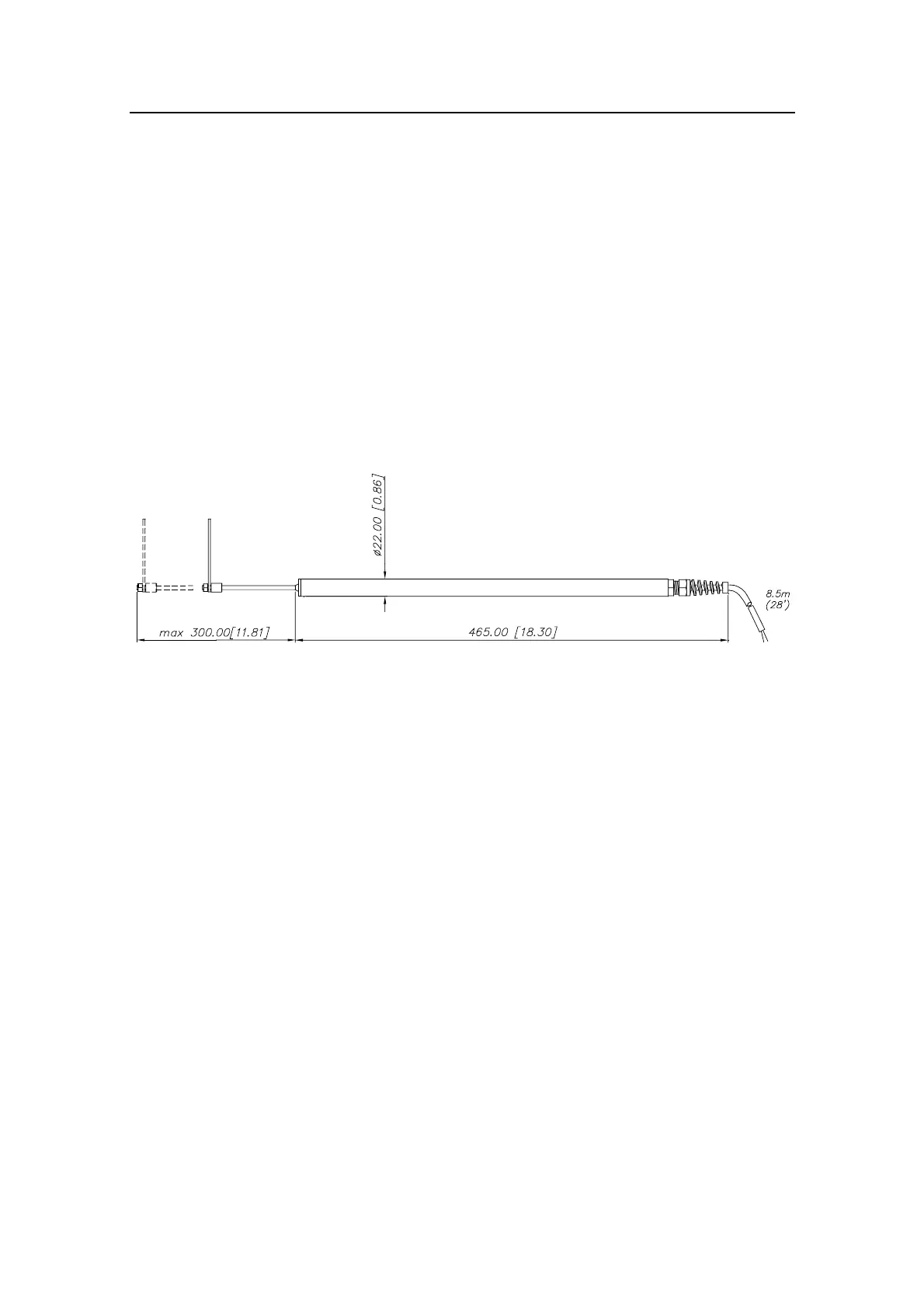

3.13 LF3000 Linear Feedback
Stroke:...........................300 mm
Operating principle:...... Variable differential transformer, excitation and signal
conversion by separate LFI3000 Mk2 Interface unit
Power:........................... Supplied by LFI3000 Mk2
Dimensions:.................. 465 mm (18,3") x 22 (0,86") dia.
Mounting: ..................... Clamped to hydraulic ram
Material:........................ Rod: Stainless
Tube: Epoxy coated seawater resistant aluminium
Environmental protection: IP67
3.14 LFI3000 Mk2 Linear Feedback Interface
Supply:..........................From Junction Unit
Output signal................. Polarity independent variable frequency
Frequency resolution ....Centre 3400Hz, ±10Hz/degree equal to 1,7 mm travel
Linearity:....................... ±3 degrees up to 45 degrees of rudder
Cable supplied: ............. 1,5 m TP shielded cable
Weight: .........................0,7 kg including cable (1,6 lbs.)
Power consumption: ..... 0,9 watts
Temperature range:
Operation:.... 0 to +70°C (+32 to + 158°F)
Storage: ....... -30 to +80°C (-22 to +176°F)
Environmental Protection:. IP56
Mounting: ..................... Deck or bulkhead
Material:........................ Black ABS
Dimensions:.................. See Figure 3-6.
