Simrad AP21 User Manual

Simrad AP21 and AP22 Autopilots
46 20220596G
Temperature range:
Operation: ......................... –10 to +55 °C (+14 to +130 °F)
Storage:............................. –30 to +80 °C (–22 to + 176 °F)
Transmission link: ..................... Stainless 350mm (13.8") with 2 ball
joints. Ball joint stud for rudder arm
requires 4.2mm dia hole and 5mm tap.

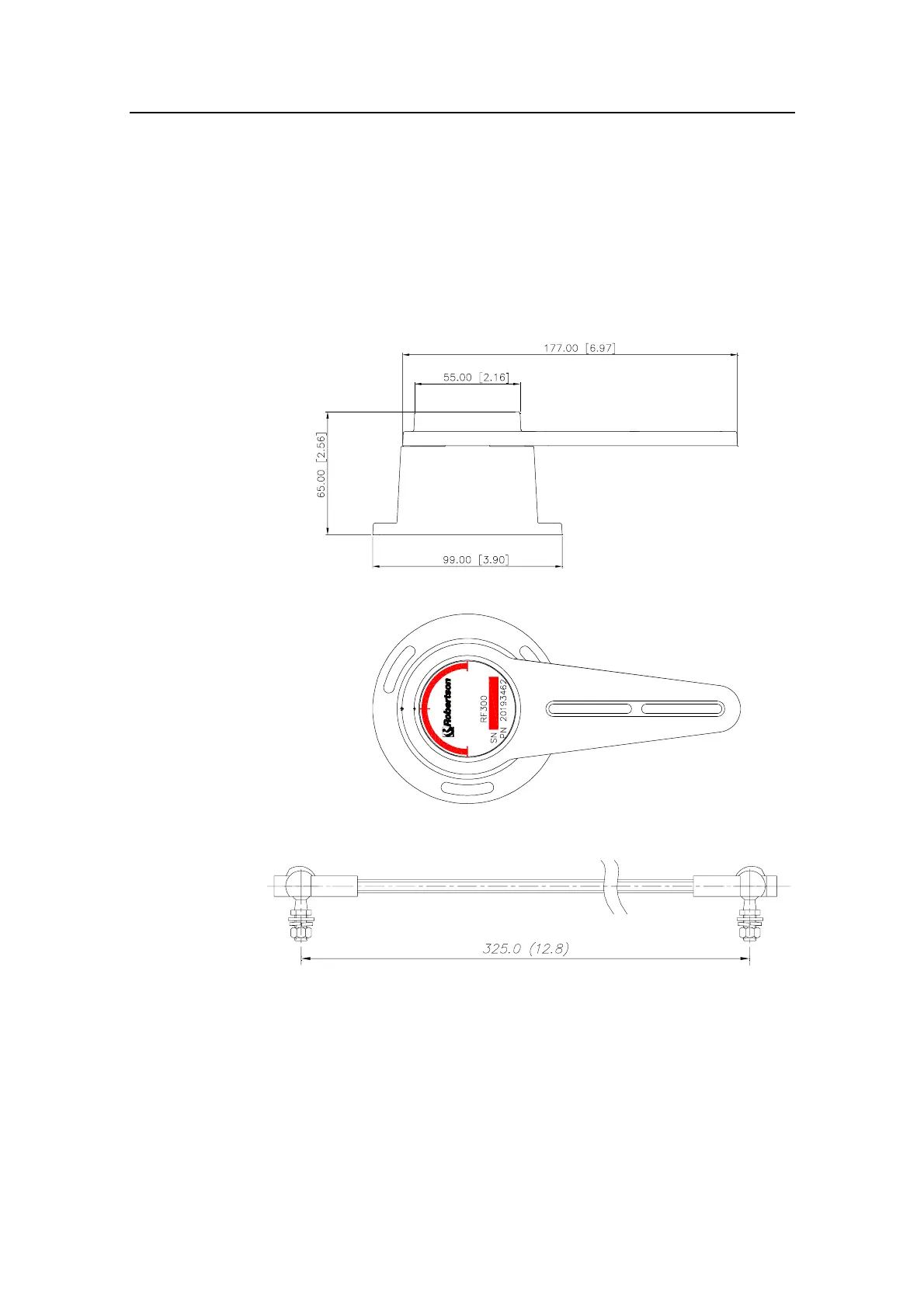

Figure 3-7 RF300 Rudder Feedback - Dimensions
Figure 3-8 Transmission link - Dimensions
3.9 CI300X Compass Interface
Dimensions:............................... See Figure 3-9
Weight: ...................................... 0,9 kg (2,0 lbs)
Power consumption: .................. 2 W
