Installation
20220596G 57
Observe the RF300 while someone turns the helm wheel through
the complete travel from full port to full stbd. rudder to verify
that the mechanical linkage to the RF300 is not obstructed.
JUNCTION UNIT
MAIN PCB
Rudder
Feedb.
*
* NON POLARIZED
(COLOUR INDEPENDENT)
RF +
RF

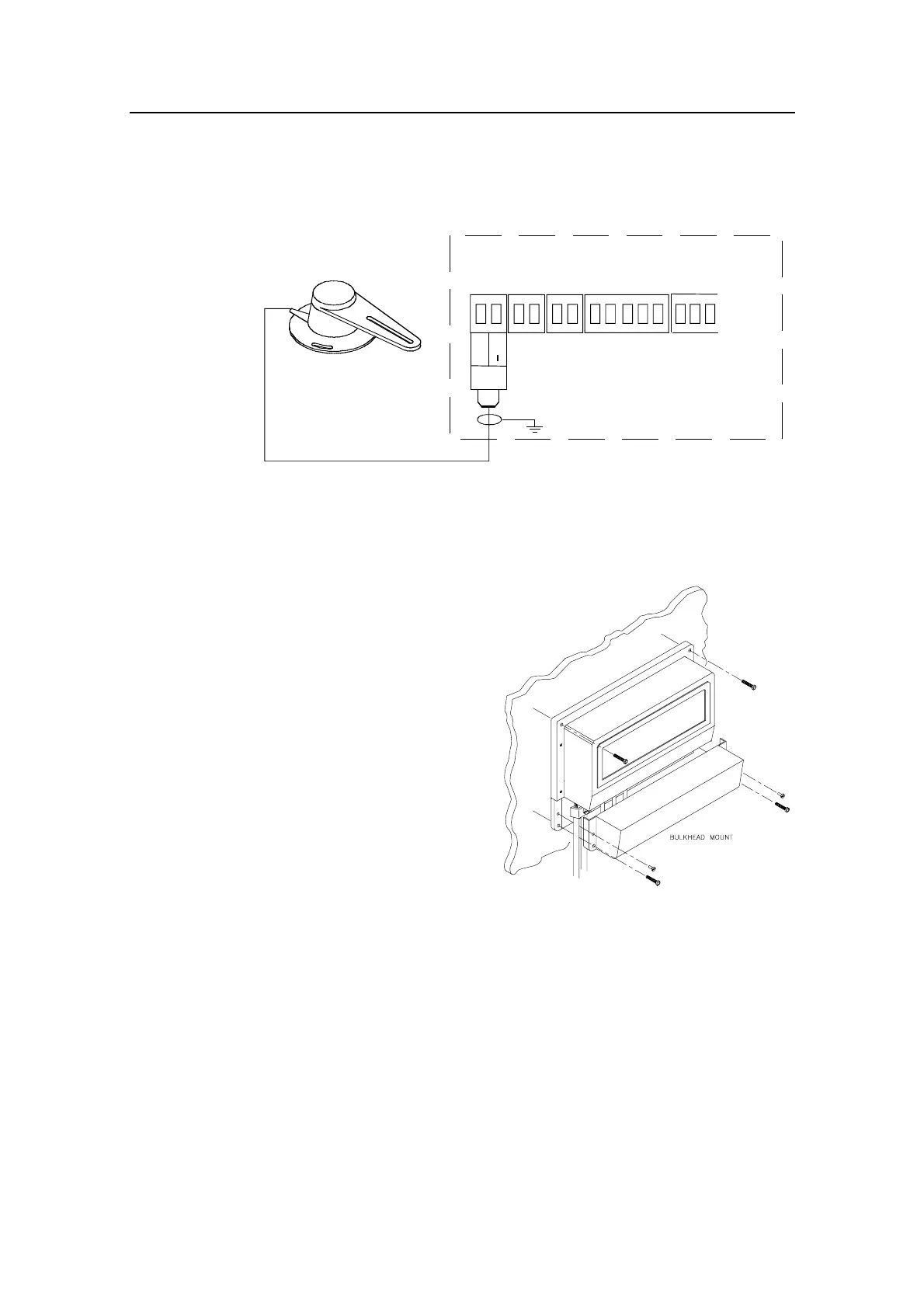

Figure 4-3 RF300 connection
4.7 Junction unit installation
The junction unit is
designed to operate in a
location that provides
ambient temperatures
below +55°C (+130°F).
Note ! The junction units (J3000X,
J300X and J300X-40) are
not weather proof and
should be mounted
vertically as shown in a dry
place between the control
unit and the drive unit.
Figure 4-4 J3XX mounting
