Simrad AP21 and AP22 Autopilots
84 20220596G
4.30 CDI35 Interface
Locate the CDI35 as close to the compass as possible so that
there will be no problem finding it in the event of a service.
Put the two fixing screws in the slots and secure the unit to the
bulkhead. Open the unit to access the screw terminals.

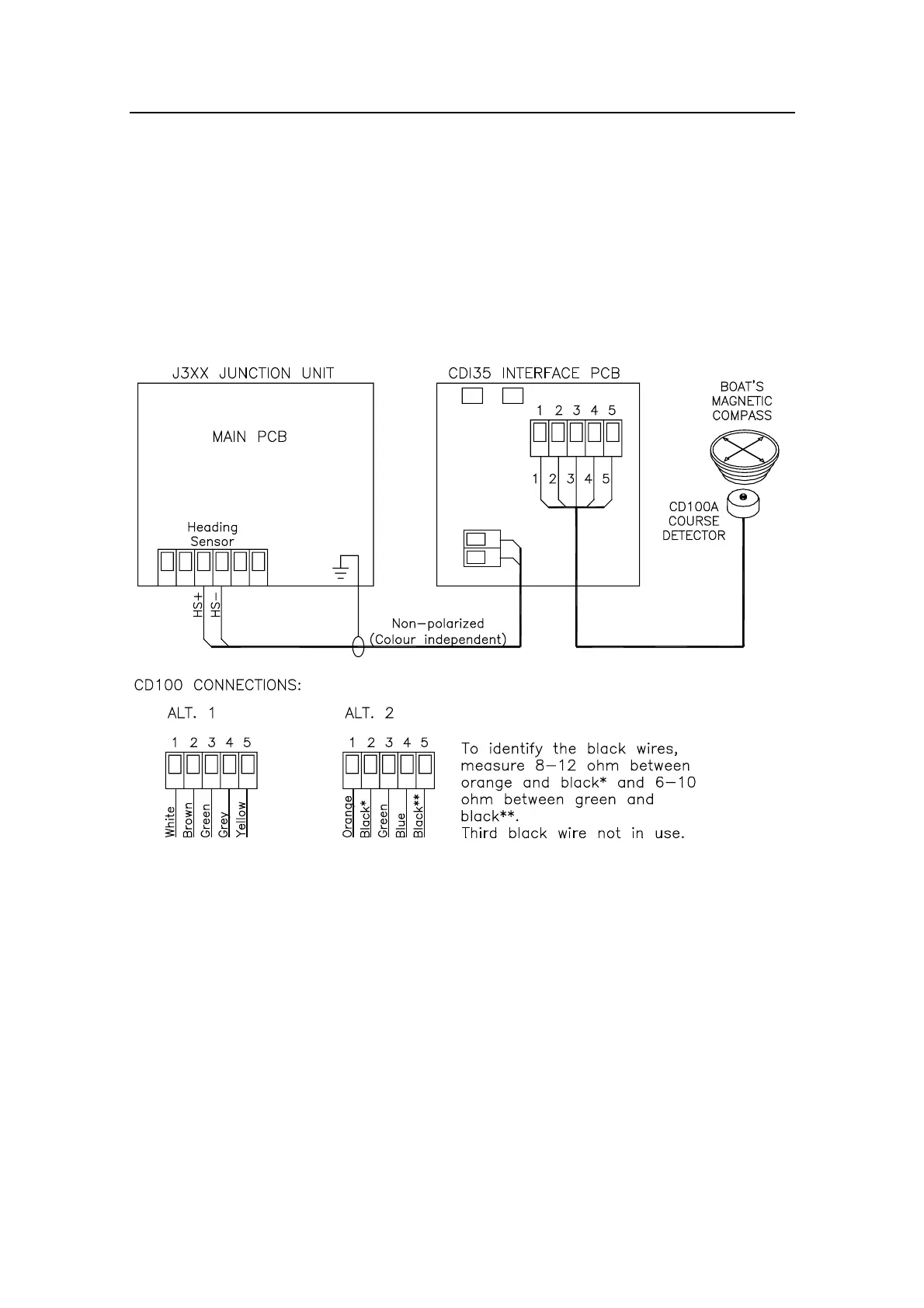

Cut the course detector cable to make a suitable length and
connect both cables as shown on the diagram below.
Figure 4-30 CDI35 connection
Note ! CD100 has a connector that has to be cut off the cable.
