Installation
20220596G 59

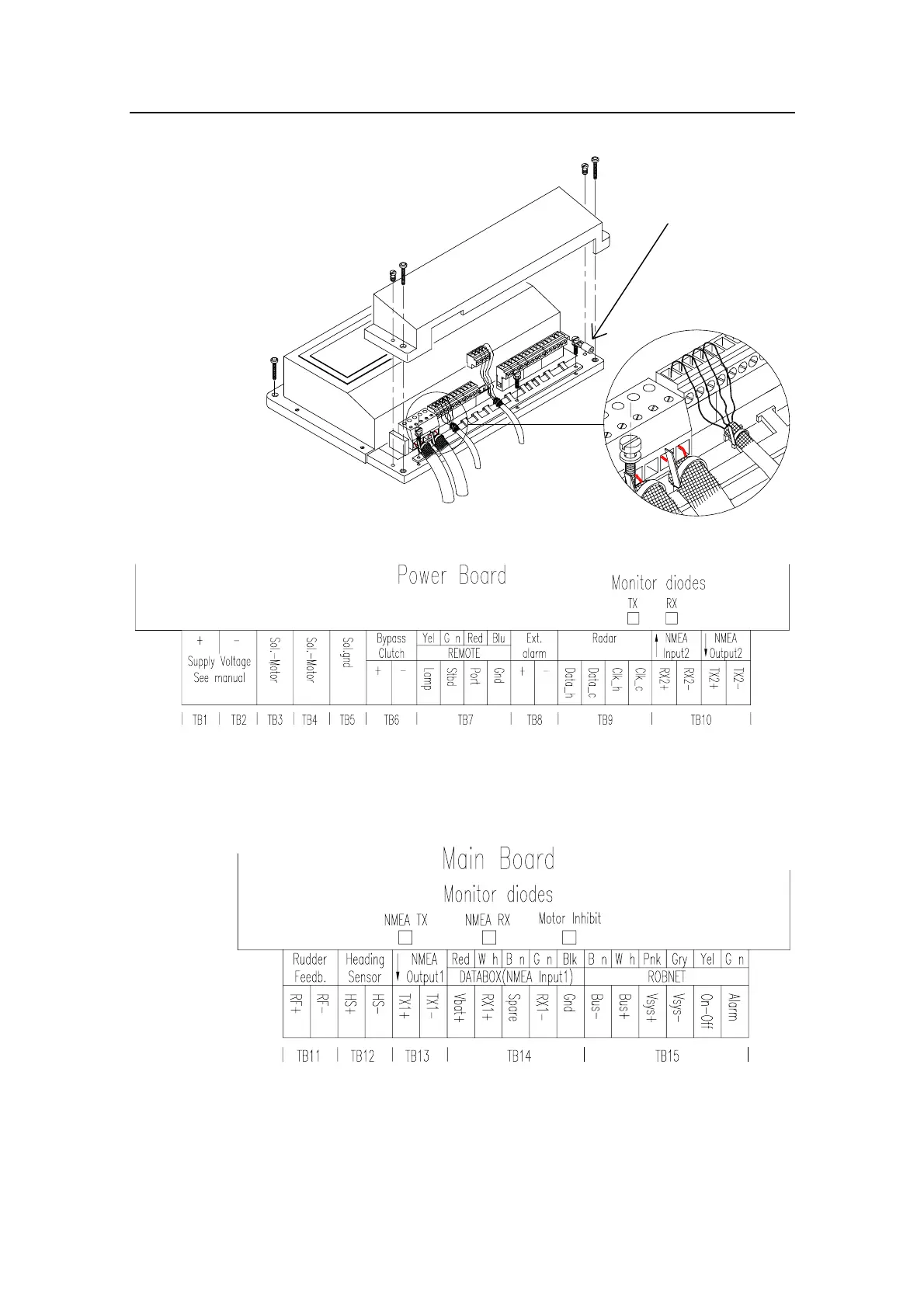

Power Board terminals
Main Board terminals
N
ote!
The Mains input
is not polarity
p
rotected on
J
300X-40.
Ground terminal
TB9 and TB10 are not on
the J3000X Power Board
