Installation
20220596G 79
J3000X Junction Unit is installed (J3000X has no radar
Clock/Data output as compared to J300X and J300X-40).
Configuration for Anritsu or Furuno is selected in the Installation
Menu.
12V out can drive max. 2 IS15 instruments (max 250mA load),
e.g. “Rudder” and “Compass”.
TB11
TB11
SIGN.
RET.
SIGN.
RET.
GREEN
WHITE (YEL)
RED
BLACK
Furuno
ANRITSU
FURUNO
RADAR
DISPLAY
+12V
EXTERNAL
STAND ALONE
IS15 INSTRUMENT
RX+
RX-
TX+
TX-
DataH
DataC
N.C.
Clk H
Clk C
RX+
RX-
TX+
TX-
RX+
RX-
TX+
TX-
TX-
IS15 INSTRUMENTS
LORAN C
OUTPUT FOR RADAR,
INSTRUMENTS ETC.
MAX 250 mA
BLACK
GPS
NMEA2
NMEA3
NMEA4
NMEA1
TB7-A
TB7-B
TERMINALS LOCATED TO THE EXTREME
LEFT AND RIGHT ON THE PCB ARE NOT IN USE
GPS OR
PLOTTER
RX-
TX+
RET.
RED
RX+
+
_
12V DC
OUT
RED
BLACK
SIGN.
SIMRAD
IS15 EXPANDER
SIMRAD SIMRAD SIMRAD

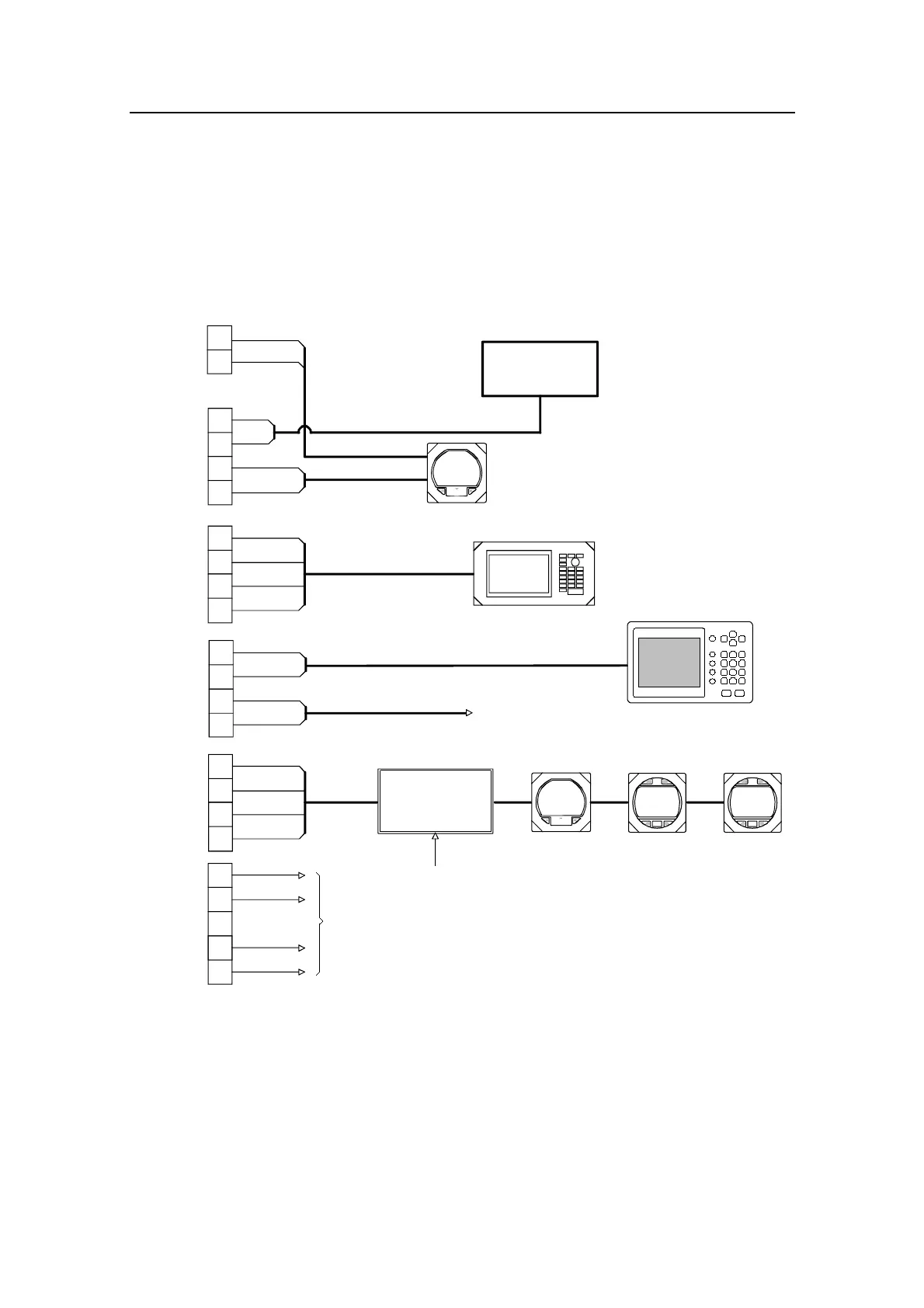

Figure 4-25 NI300X connection
The NMEA 1-4 ports are identical in HW and SW and can be
connected as desired.
