Simrad AP21 and AP22 Autopilots
82 20220596G
Center the drives. Loosely secure the LF3000 to the supplied
mounting bracket, across the center of the drive unit cylinder.
Either cylinder may be used if there is a dual set up. You may
mount the feedback in either direction, i.e. the shaft of LF3000
may point to port or starboard.
Loosen the end bolt (a) used to secure the cylinder to the drive
unit mount. Insert the rod retaining assembly (b) (end plate) and
retighten this bolt. Secure the feedback rod to the end plate using
the two washers and cap nut provided. Adjust the location of the
LF3000 Linear Feedback to allow full travel of the hydraulic
cylinder without causing the endplate of the LF3000 hitting the
end of the cylinder. Check that the outboard motor can be tilted
freely. Tighten all nuts and the mounting bracket.
Turn the helm slowly by hand to the stops on either side, making
sure that the rod does not bind up in any direction. Also, clamp
cable to allow full engine movement to port and starboard. The
mounting hardware provided with this system is meant to interface
with Teleflex HC5340 cylinders and Hynautic K7 and K10
Cylinders. If you are attempting to interface to another system the
hardware enclosed may not be appropriate!
LF3000
BRACKET
CYLINDER

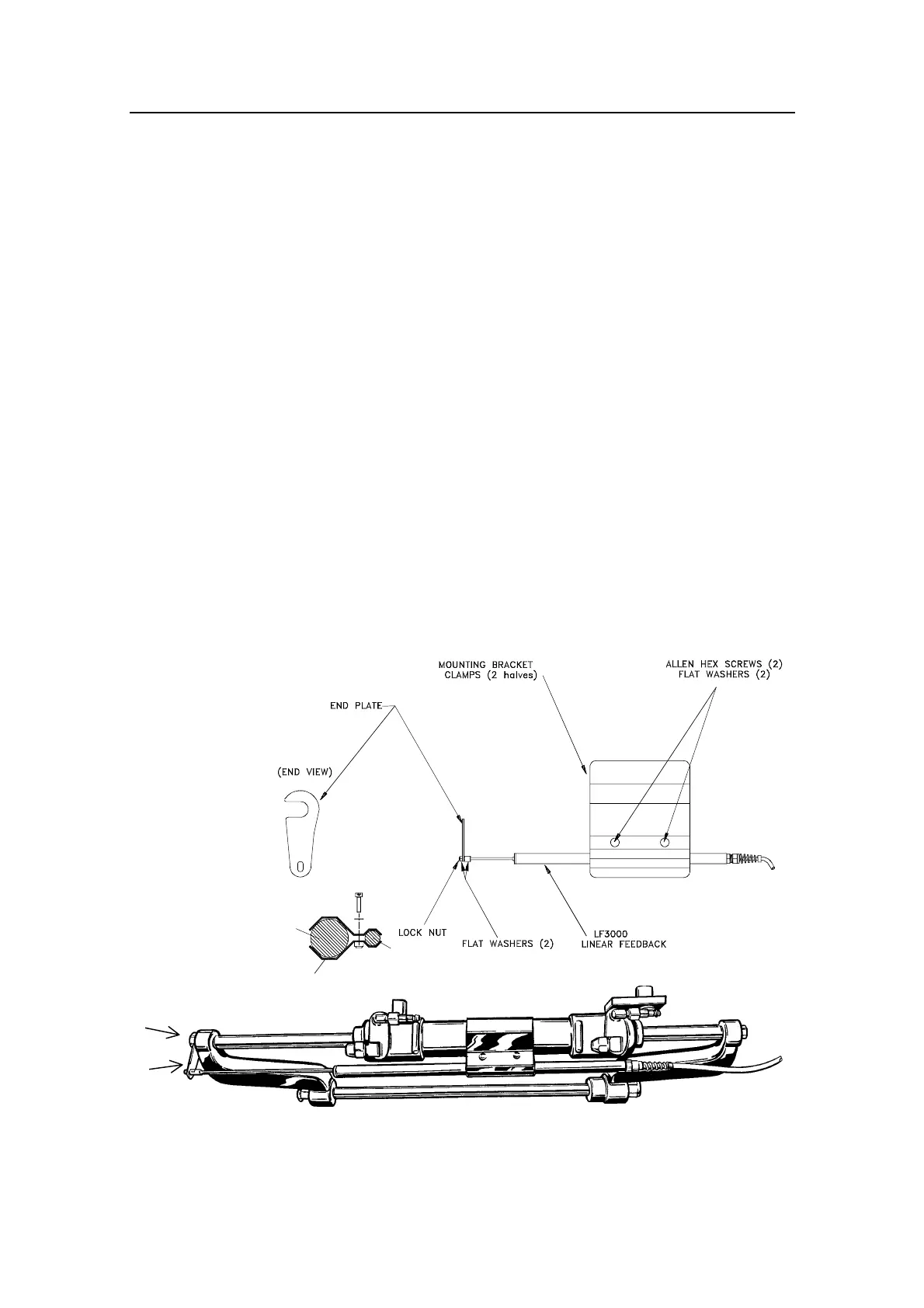

Figure 4-27 LF3000 mounting
a
b
