Activating the GC80 or GC85 Control unit
When the Gyro system is shipped from factory, all DIP switches in the
Control unit are set as a standard GC80 system.
Before the system is started, the switch settings described below have to
be changed to match a GC85 system.

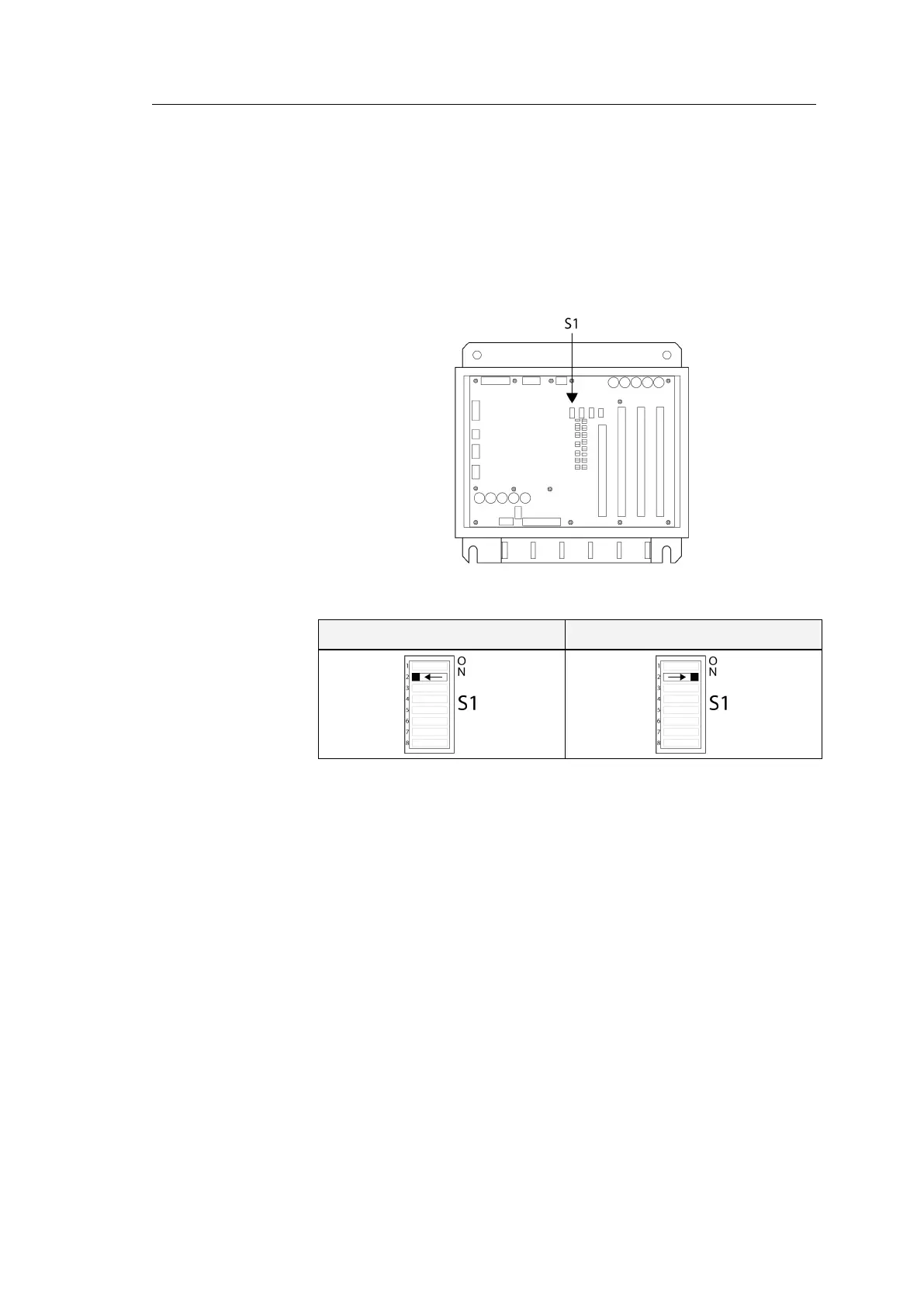

DIP switch no.2 on S1 on the ICNT board identifies the Gyro as a GC80 or
GC85 system.
GC80 system GC85 system
All outputs are selectable for 1, 5, 10 or 50 Hz.
Refer
DIP SWITCH SETTINGS
on page 101 onwards.
Note!
A GC85 system is recommended to be set for 50 Hz output!
