Simrad GC80/85 Compact MK2 Gyro Compass
49 988-12718-003
Power supply unit (option)
Refer mounting description of the Control unit above.
Dimensional drawings for the optional Power supply unit are found on
page 87.

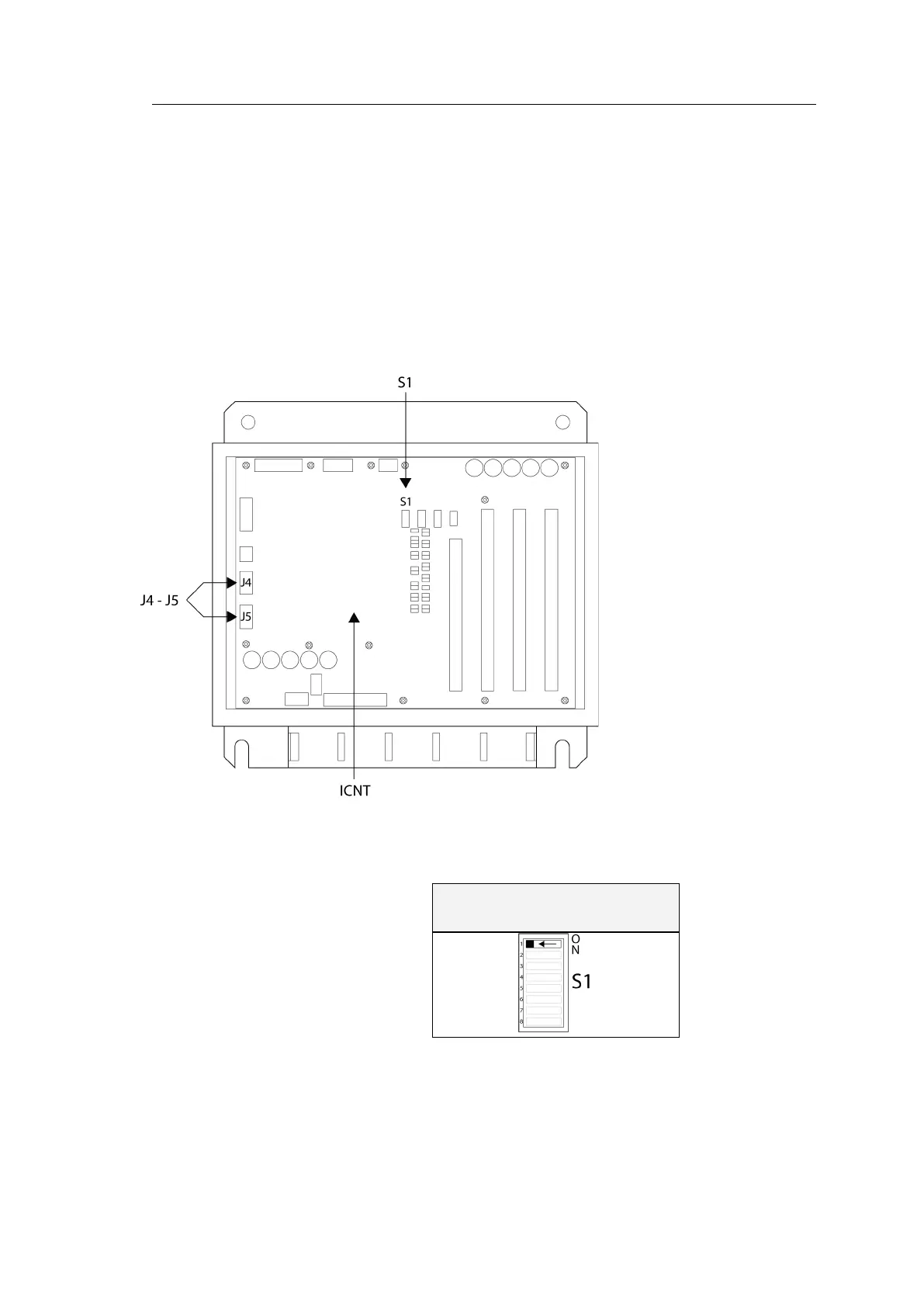

Jumper settings in Compact MK2 Control unit
When the optional Power supply unit is included in the GC80/85 Compact
Gyro system, the GC80/85 Control unit’s jumper settings have to be
modified as follows:
Optional Power supply unit
enabled
1. Disconnect connectors J4 and J5
2. Connect POWER UNIT and
COMPACT TYPE
3. Set DIP-switch S1-1 to OFF
