Simrad GC80 Compact MK2 - Replacing the Fuses; Master Compass; Compact MK2 Control Unit

Simrad GC80/85 Compact MK2 Gyro Compass
988-12718-003 42
5.8 Replacing the fuses
WARNING Before a fuse is replaced, disconnect the respective power
for the damaged fuse.
Use the procedures described on the following pages when replacing the
fuses.

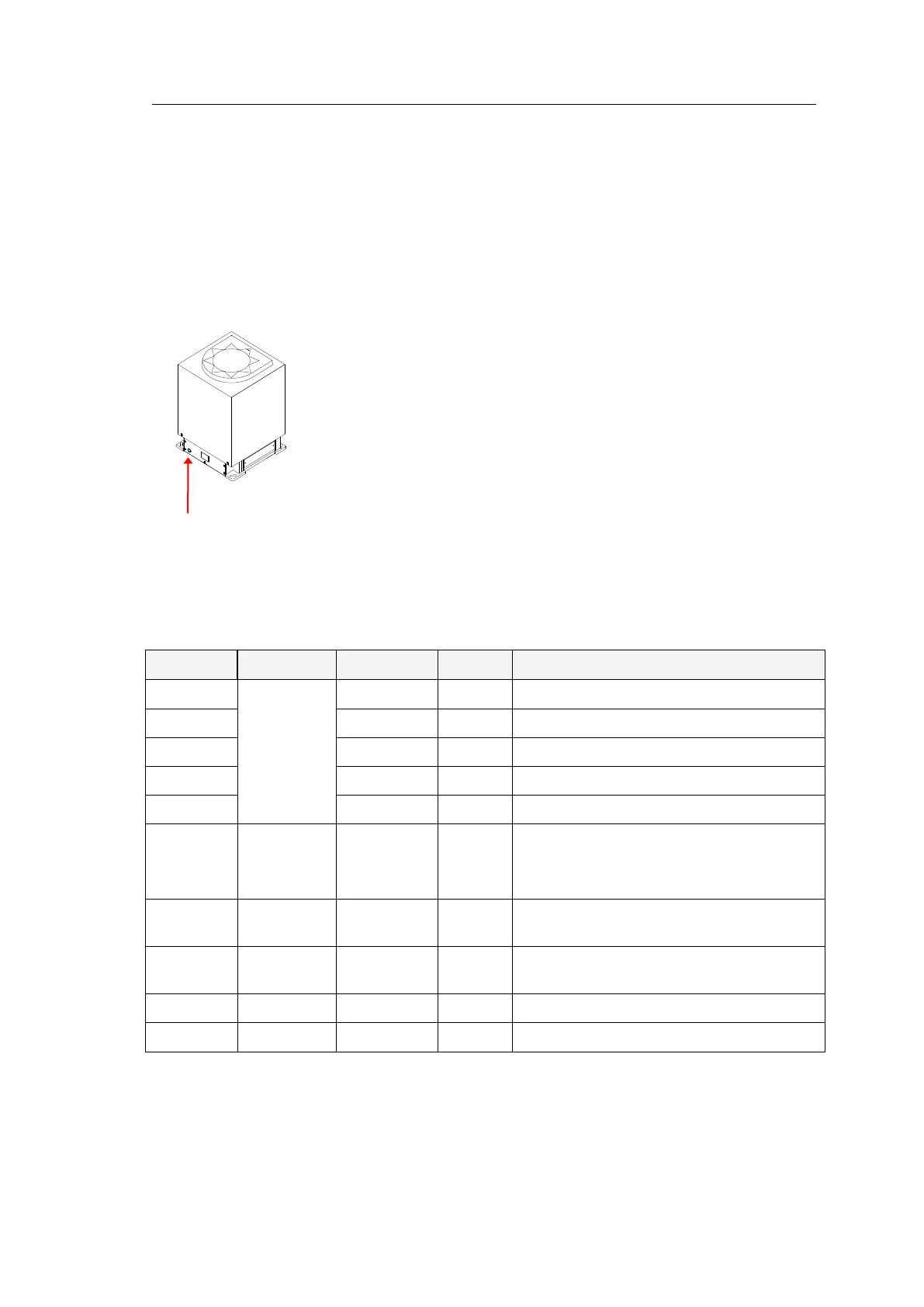

Master compass
Fuse F1 is located inside the fuse holder in the front of the Master compass.
1 Open the fuse holder by pressing and turning the fuse holder edge
counter-clockwise with a screwdriver.
2 Replace fuse F1, and close the holder by turning it clockwise.
Compact MK2 Control unit
For location of the fuses, refer to the drawing on the next page.
FUSE NO CAPACITY TB NO, PIN SIGNAL DESCRIPTION
XF1
1 A
TB1-2, 9 1R24+ Power supply for ch.1 serial repeater
XF2 TB1-2, 14 2R24+ Power supply for ch.2 serial repeater
XF3 TB1-2, 19 3R24+ Power supply for ch.3 serial repeater
XF4 TB1-2. 24 4R24+ Power supply for ch.4 serial repeater
XF5 TB1-1, 21 ST15 Power supply for ch.1 step motor repeater
XF6 10 A TB3, 1 24M+
Main power supply (standard type)
Master compass power supply (with Power
supply unit
XF7 3.15 A TB3, 5 24B+ Power supply for Control unit (with Power
supply unit)
XF8 10 A TB3, 3 24R+
Power supply for repeaters
(with Power supply unit)
XF9 10 A TB3, 7 24BT+ Emergency power supply (standard type)
XF10 1 A ??? ??? Unused
F1 (12 A)
