Control unit

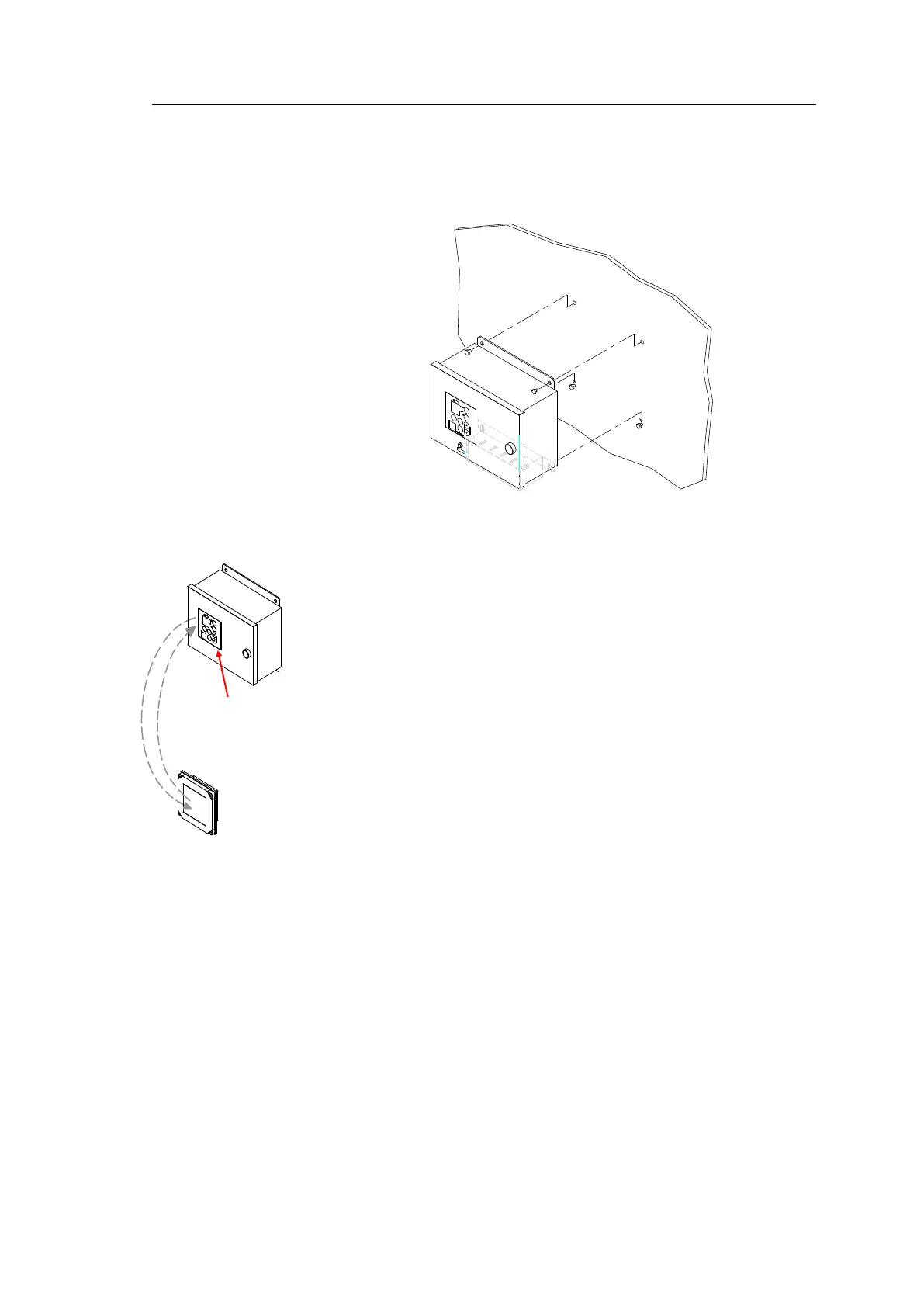

The Control unit is bulkhead mounted using 4 bolts as shown in the
illustration.
Flush mounting the Control panel
The Control panel may be removed from the Control unit and
mounted in a remote location using the optional flush mounting kit
(part number 27101757).
The flush mounting kit includes:
- 1 flush mounting panel
- 4 corners
- 4 mounting screws
- 1 blind cover
In addition to this kit, two optional Control panel cables can be
ordered.
Mandatory cable (GPANNEL-A J1 - ICNT J1) available in 3 different
lengths:
- 5 m (part no. 44170736)
- 10 m (part no. 44170744)
- 15 m (part no. 44170751)
Optional cable (GPANNEL-A J10 - ICNT J3), if BAM
communications is used, available in 3 different lengths:
- 5 m BAM (part no. 000-15835-001)
- 10 m BAM (part no. 000-15836-001)
- 15 m BAM (part no. 000-15837-001)
Use the following procedure when mounting the remote Control panel:
1 Open the Control unit and remove the wiring strips holding the
Control panel’s cables.
GC80/85
CONTROL
UNIT
GC80/85
REMOTE PANEL
CONTROL
PANEL
