Simrad GC80/85 Compact MK2 Gyro Compass
988-12718-003 58

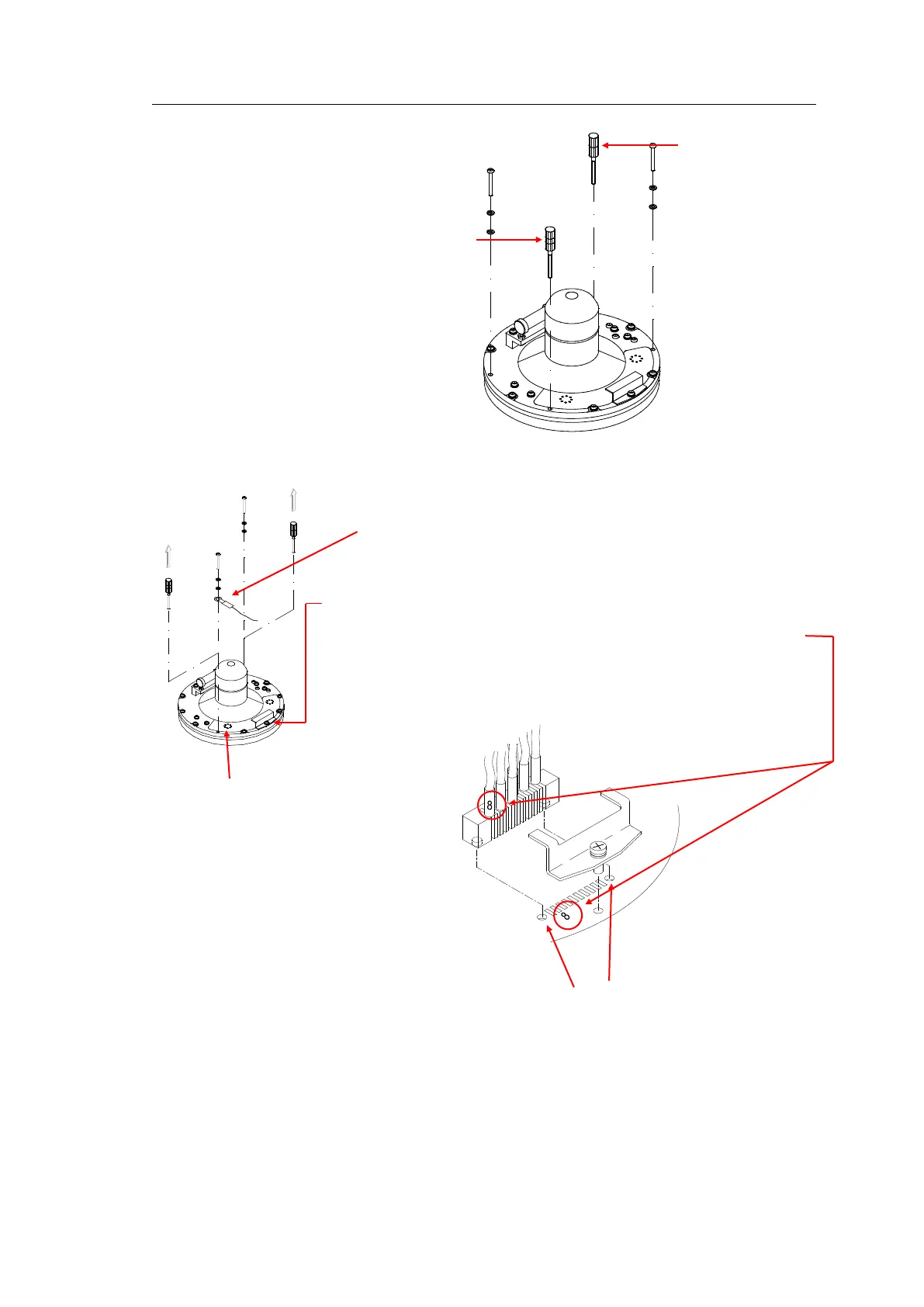

6 Replace the assembly jigs with the 2 remaining screws. Locate the
ground wire on 1 of the screws as shown in the figure.
7 Loosen the screw on the plug holder on the Sensitive element and
lift the holder 2-3 mm upwards.
8 Connect the plug to the connectors on the Sensitive element’s PCB
according to the labelling on the PCB and on the wires. Make sure
that the pin guides on the plug are properly entered, and that the
wires are not twisted.
9 Firmly tighten the screw on the holder.
Pin guides
Ground wire
connection
ASSEMBLY JIG
WITH 1 CIRCLE
ASSEMBLY JIG
WITH 2 CIRCLES
