Note: Record the PIN code and store it in a safe place.
When you establish password protection, the PIN code must be entered when any of the
following are selected. After the correct PIN code is entered, all of them can be accessed
without re-entering the PIN code.
• Settings, activated from the home page or system controls dialog.
• Alarms, activated from the toolbar.
• Storage, activated from the toolbar.
• Store, activated from the toolbar.
Power control setup
Determines unit response to signals applied to the power control wire. Refer to "Power control
connection" on page 13.
This setting is only applicable if the yellow wire is used for power control.
• Set to slave if the power control wire is connected directly to power, the ignition switch, or
to a stand-alone switch. The unit should also be set to slave if you want the unit to behave
as a slave when connected to a power control bus.
• Set to master to make this unit turn other devices connected to the power control bus on
and off.
When a master unit is turned on or off, all units connected to the same power control bus
turns on or off.
While a master unit is on, a slave unit cannot be turned off.
If no master unit is turned on, slave units can be turned on and off individually.
USB ports
By default, USB port 1 is assigned to interact with the monitor connected to HDMI out 1 and
USB port 2 is assigned to interact with the monitor connected to HDMI out 2.
If a mouse or a keyboard is used to only control one of the displays, set the USB port used to
be permanently assigned to one display.
If a mouse or a keyboard is used to control both monitors, the USB port used need to be
setup to be switchable between the monitors.
Ú
Note: A USB port should be set to switchable only when used for a mouse or a keyboard.
Advanced
Used for configuration of advanced settings and how your system displays various user
interface information.

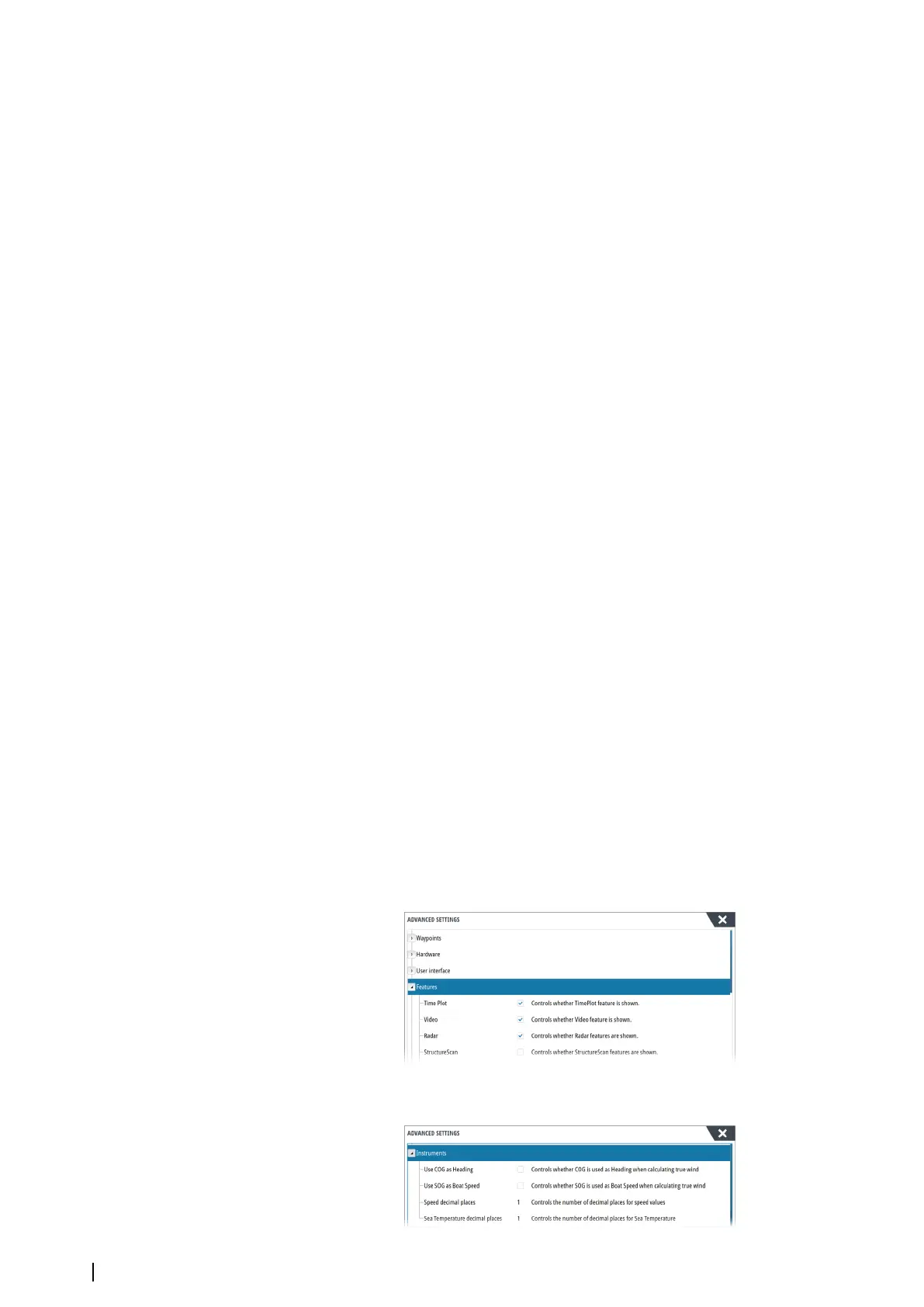

Enabling or disabling features
Use the feature option to enable or disable features that are not automatically enabled or
disabled by the system.
SOG as boat speed and COG as heading
