Introduction
System overview
The basic system consists of the processor and one or two monitors.

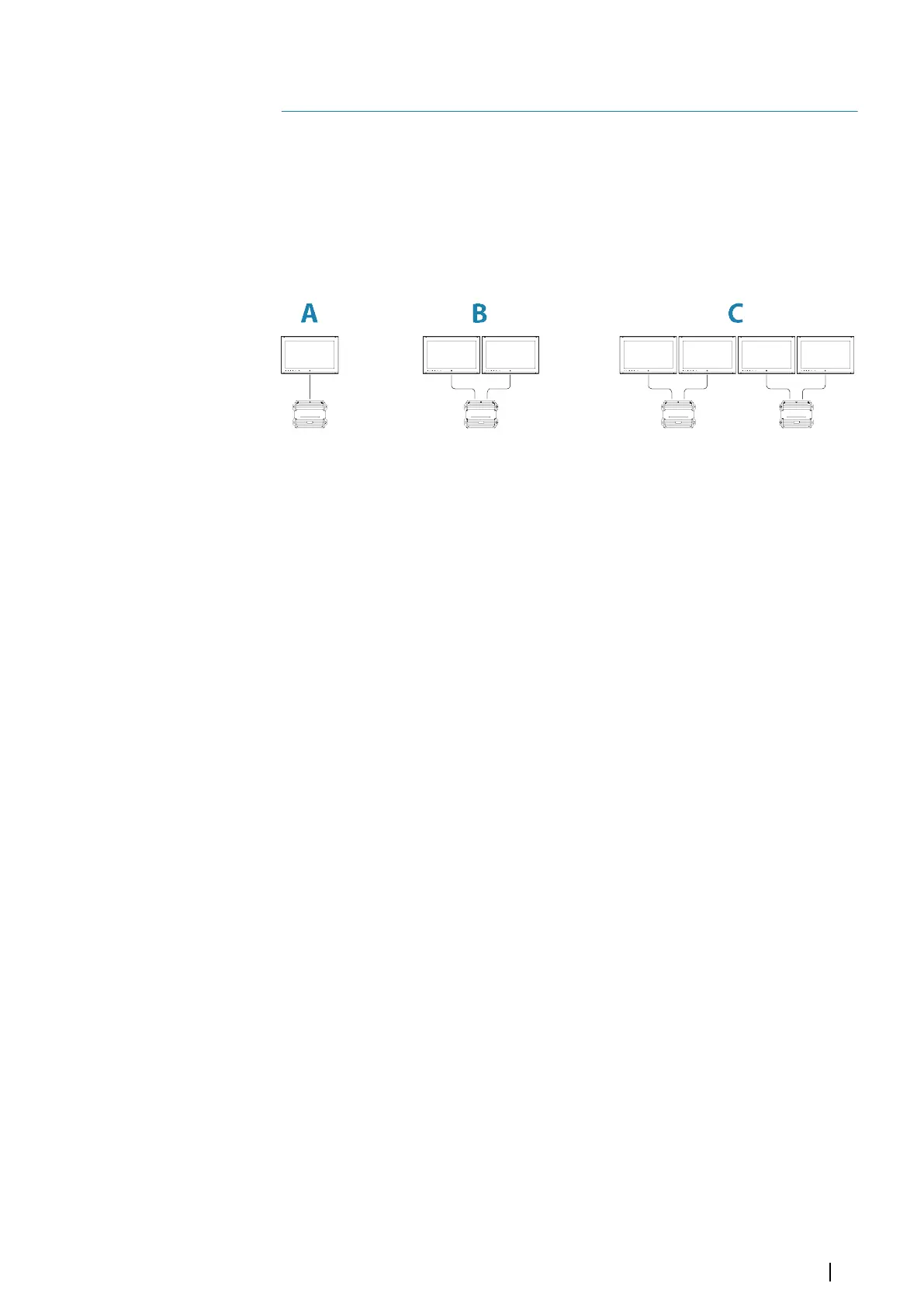

The system can be configured and installed in various configurations:
• One processor with one monitor (A)
• One processor with two independent monitors (B)
• A complex network where additional networked processors are connected to
independent monitors throughout the boat (C)
Operating the system
The system supports single and dual touch-screen operation when compatible touch
monitors are connected.
If a compatible remote controller is available on the network, this can control multiple
processors and monitors, including power control. A separate manual is delivered with the
remote controller units.
You can also use a keyboard and mouse/trackball to control the system. Once these devices
are connected to the USB ports on a processor, they can be used to control the monitors
connected to the same processor.
The active controller is indicated with an icon in the status bar.
1
Introduction | NSO evo3S MPU Installation Manual
7
