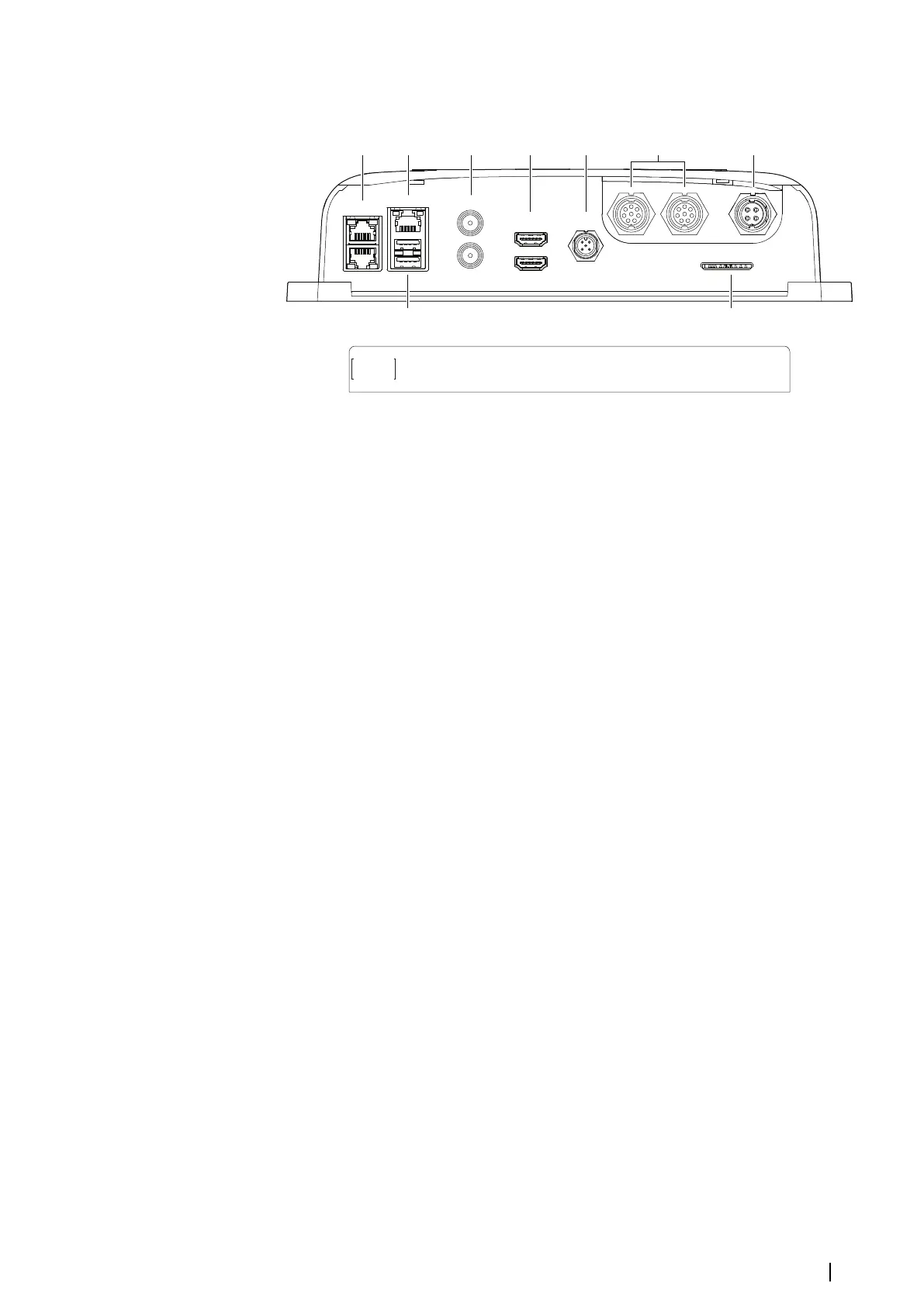

Connectors
NETWORK 1
NETWORK 3
USB 1
VIDEO 1 IN
HDMI 1 OUT
HDMI 2 OUT
SD CARD
NMEA2000
SERIAL 1 SERIAL 2
POWER
45W MAX
VIDEO 2 IN
USB 2
NETWORK 2
PoE 15W
COMBINED
A B C D E F
IH
G
A Network 1 and Network 2 ports (Ethernet with PoE)
B Network 3 (Ethernet)
C Video 1 IN and Video 2 IN
D HDMI 1 OUT and HDMI 2 OUT
E NMEA 2000
F Serial 1 and Serial 2
G Power
H USB 1 and USB 2
I SD card reader
Card reader
A memory card can be used for:
• Chart data
• Software updates
• Transfer of user data
• Logging user data
• System backup
Ú
Note: Do not download, transfer or copy files to a chart card. Doing so can damage chart
information on the chart card.
Introduction | NSO evo3S MPU Installation Manual
9
