The user interface
Main panel

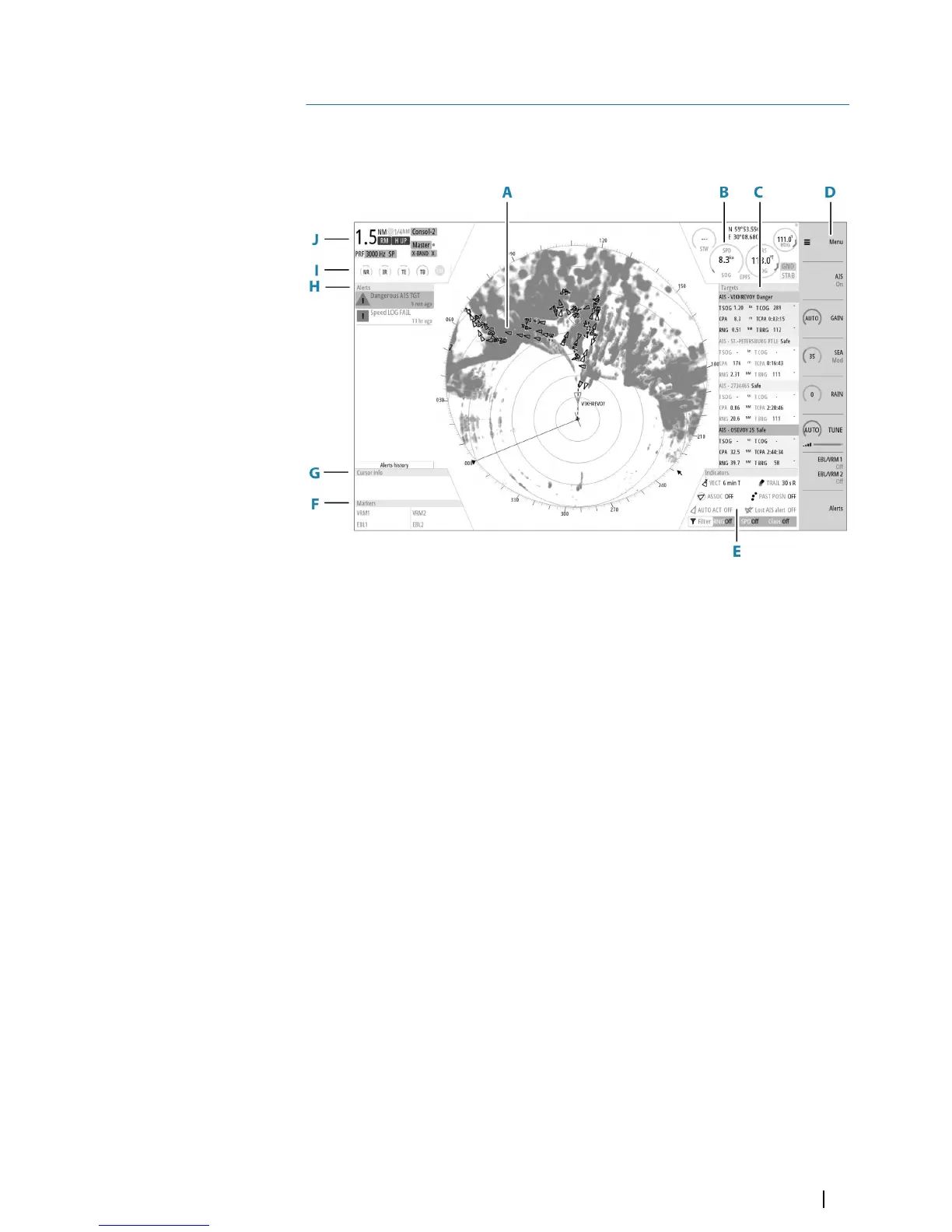

The main panel is divided into predefined areas as shown in the figure below.
A Plan Position Indicator (PPI)
Radar video area where all tracking and navigation options are performed.
B Own ship information
Stabilization mode indicator, picture freeze indicator and gauges showing primary
and secondary sensors.
C Target panel
Detailed information about selected targets and AIS targets.
D Quick access buttons
Dedicated buttons for main function.
E Target indicators
Overview of target indicator settings.
F Markers
Details for active VRM and EBL markers.
G Cursor information
Range and bearing from the vessel to the cursor position. Also including position
information if a position source is available.
H Alerts panel
List of all active alerts.
I Signal indicators
Gauges for signal processing and indicators for radar functions.
J System information
Range, mode and pulse details.
