Simrad R5000 User Manual

• Use the right key to return to previous menu level and then exit the menu system
Ú
Note: The cursor must be located over the menu to operate the menu system.

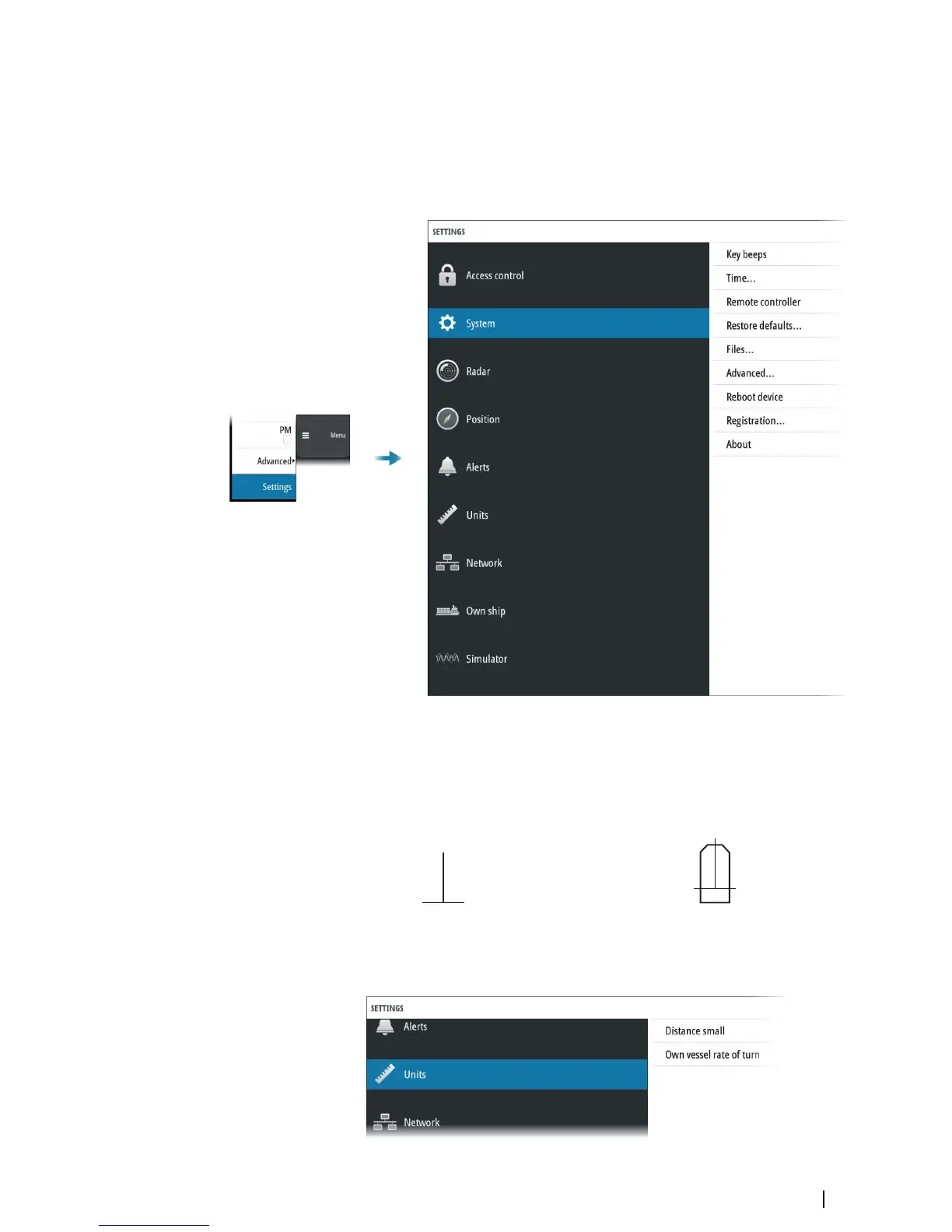

The settings dialog
The software setup is done from the settings dialog.
Own vessel symbol
At large range scales, the indication of antenna position, the CCRP and own vessel are the
same, and indicated as an own ship minimized symbol.
At small range scales, the vessel's actual size (defined in the commissioning of the radar
system) is indicated. If the antenna position deviates from the CCRP this will be shown on the
image.
Vessel symbol at large range scale Vessel symbol at small range scale
Units of measure settings
The user interface | R5000 Operator manual
17
