Trial maneuver
The trial maneuver option is used to avoid dangerous situations when planning a maneuver
in heavy traffic areas.
The trial maneuver presents a graphical view of a simulated maneuver, including the
predicted position of own vessel relative to tracked targets and AIS targets.
Ú
Note: The best trial maneuver information is available when running the radar in Relative
motion and with speed source stabilization set to Sea mode. Refer to "Relative motion" on
page 30, and to "Selecting speed source" on page 20.
Trial maneuver symbology

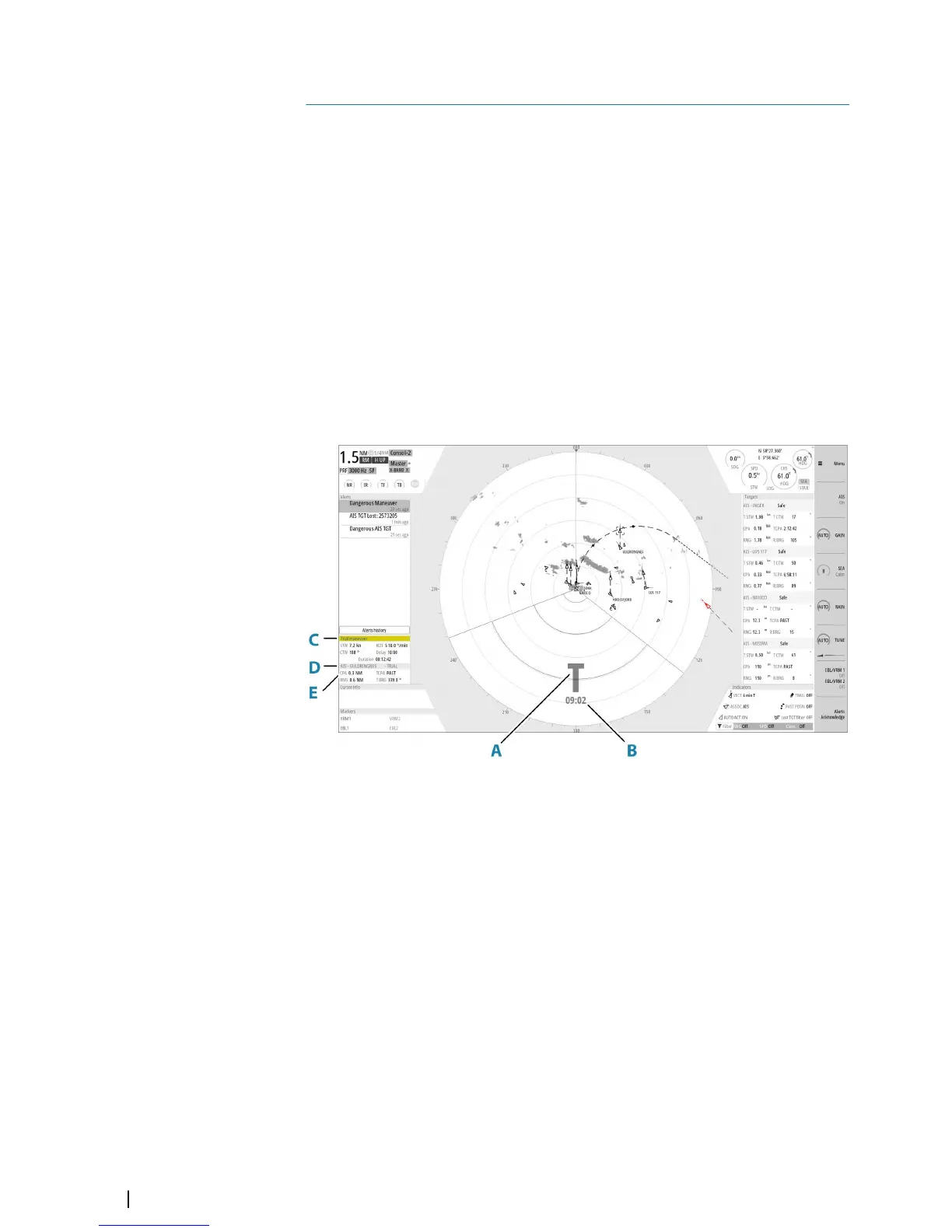

When the trial maneuver is started, the trial symbol (A) and the countdown time (B) is added
to the radar image. A Trial maneuver panel (C) is added to the radar panel.
The target indication is according to the radar view settings and speed stabilization mode.
The targets are indicated with actual position. Select a target to see its predicted position (E).
The estimated motion line (EML) is then added between the two target positions.
If you select a target's predicted position, the target name and the predicted position are
added to the panel (D).
Indication of a dangerous maneuver
The following indications are used to indicate that a target's position is a dangerous at the
end of the trial maneuver:
• flashing red target symbol
• yellow color in the trial maneuver panel
• a relevant alarm
13
56
Trial maneuver | R5000 Operator manual
