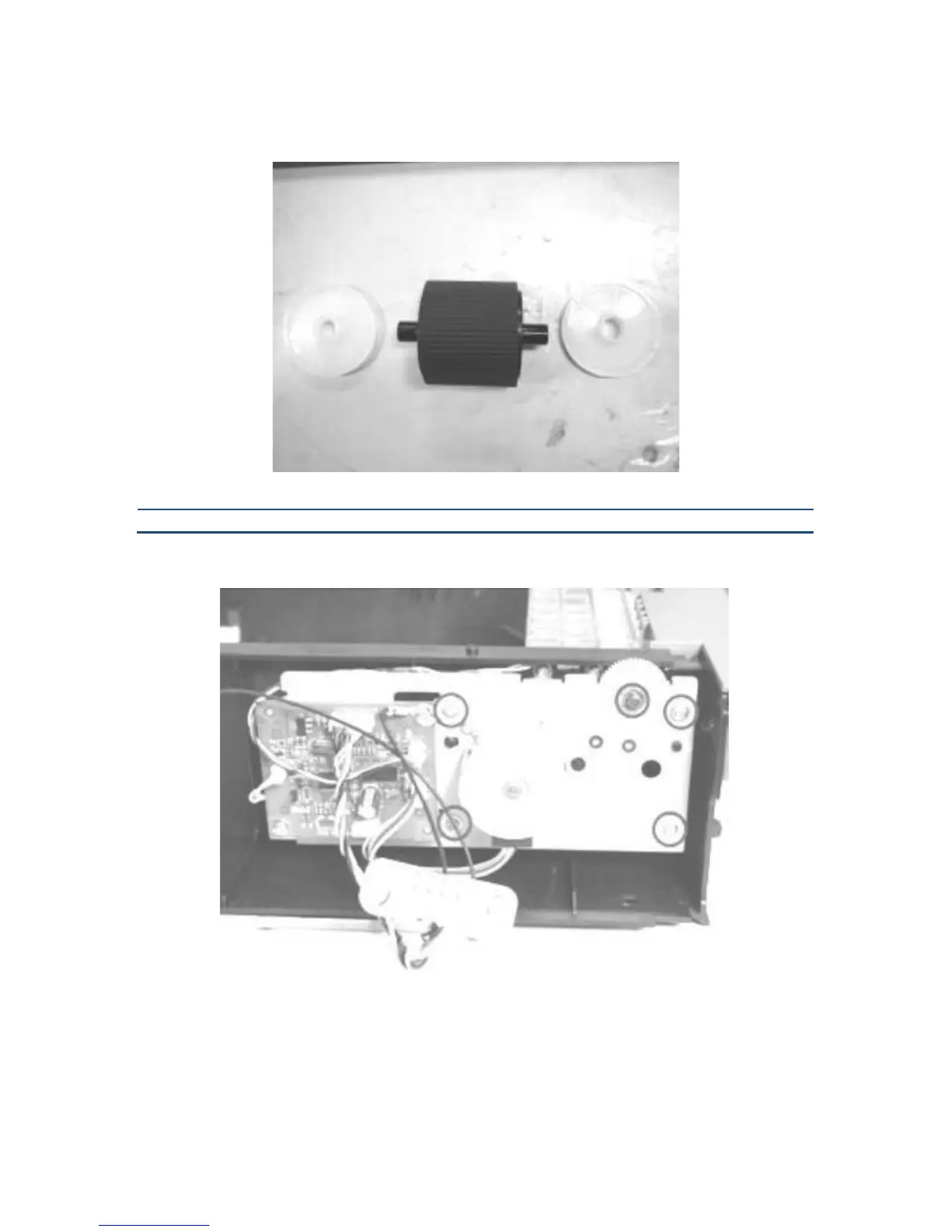

4. Disassembled Pickup Roller

Option tray Feeding Roller Removal

1. Remove one E-ring and 4 screws to separate left board and motor mounted bracket.

2. Remove the segment gear [A] and gear [B].
