Sindoh M400 - DC Connector; Standard

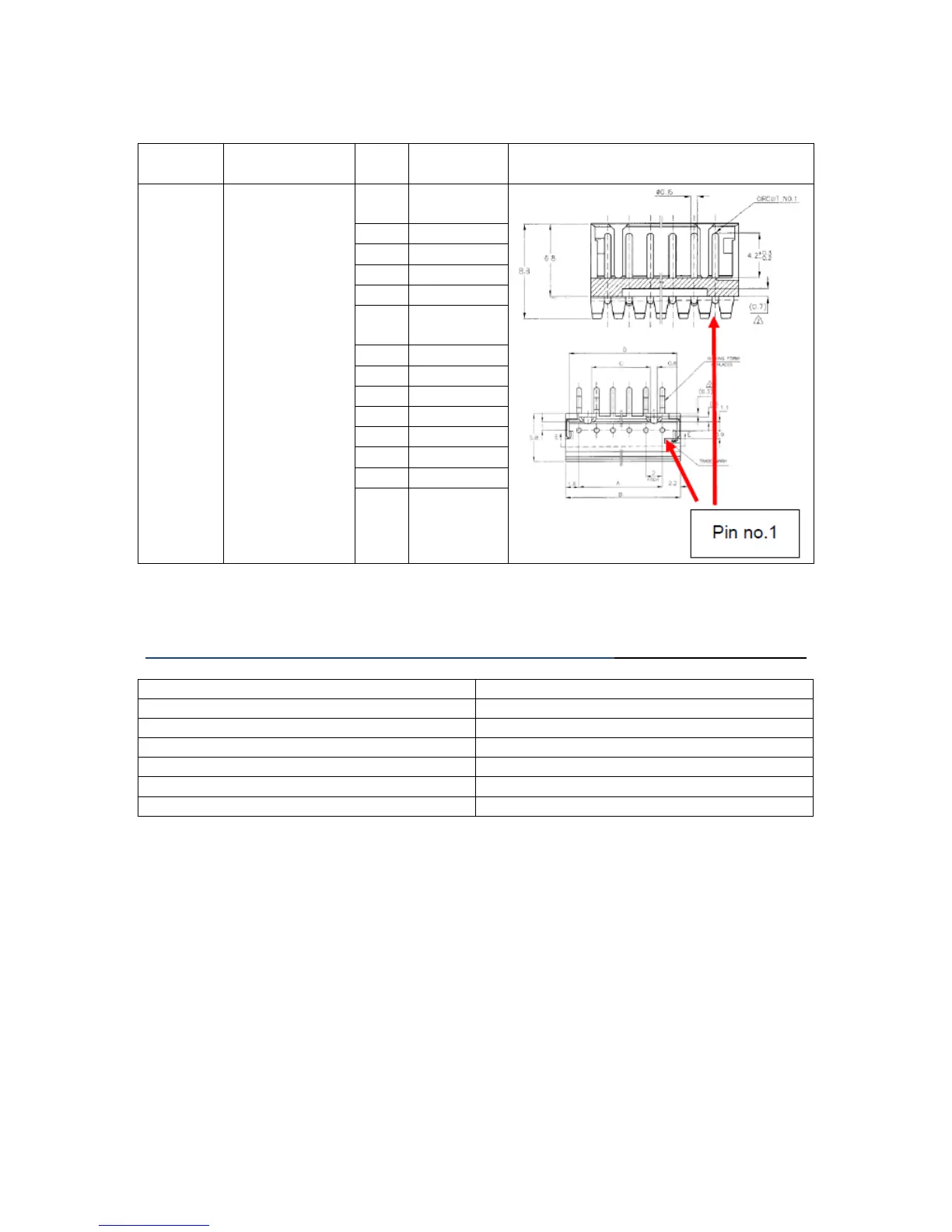

3. DC Connector
Connector
No.
Connector Name
Pin
No.
Signal
Name
CN201
DC
CONNECTOR
1-292250-4
(AMP)
1
TX
SENSING
2
TX EN
3
TX PWM
4
CHG PWM
5
DEV PWM
6
+24.5VS
7
GND
8
+24.5V
9
+24.5V
10
GND
11
GND
12
+5V
13
GND
14
HEAT ON
* Total of 14 pins composed with LVPS (7 pins) and HVPS (7 pins)
Standard
Parameter
120V
Input Frequency (nominal)
Single phase, 50/60±3 Hz
Voltage Range (nominal)
110 ~ 127Vac
Voltage (min-max)
99 ~ 135Vac
*Nondestructive Voltage
94 ~ 146Vac
Input Current
6.5A
Input Power(full option)
650w
