Sindoh M400 - Electrical Components; Motor and Switch Functions

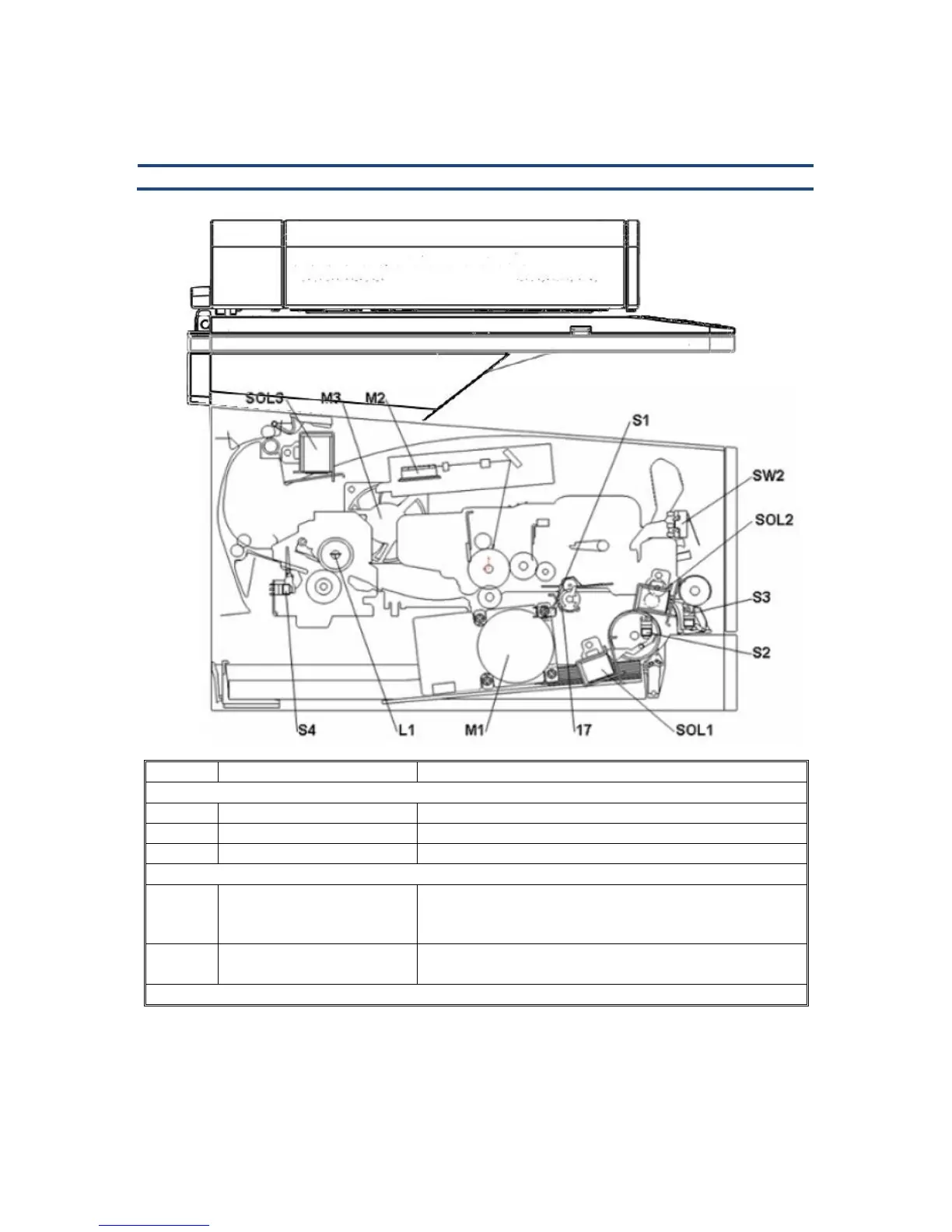

Electrical Components
Symbol
Name
Function
Motor
M1
Main
Operates main body
M2
Polygon mirror
Rotates polygon mirror motor
M3
Exhaust fan
Cools the heat around Fusing unit.
Switch
SW1
Power
Supplies power to the machine If this is turned off, no
power will be supplied to the machine
(Located on the bottom right on the back of the machine)
SW2
Front Cover
Detects opening of front cover and isolates +3.3VLD and
+24V dc power line.
Sensor
