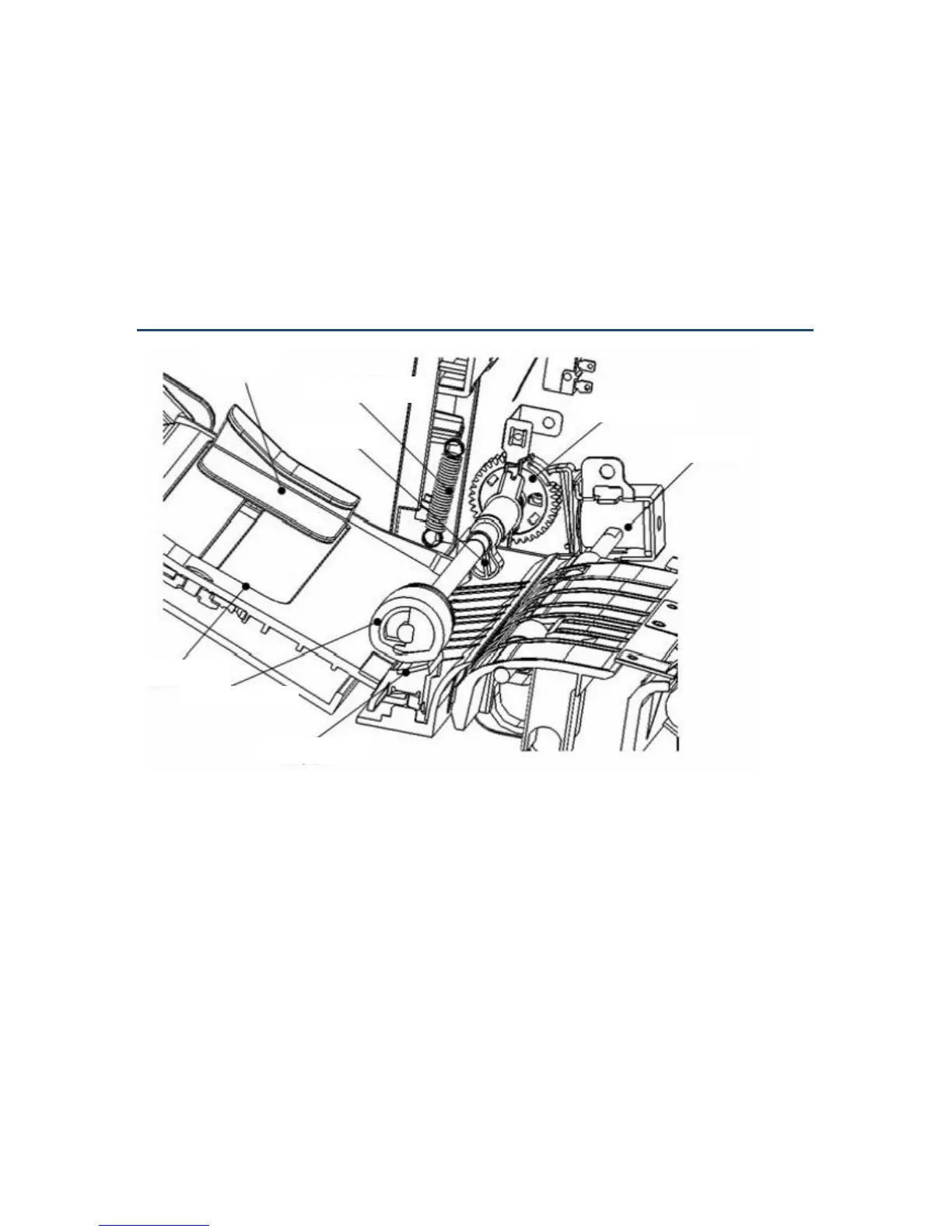

MPT is composed with the following 6 components and rolls of each component are as the followings.
1) MPT A’ssy: Composed with MPT cover, base plate and extension.
2) MPT Cam: Links with the MPT pickup roller and pickup roller
3) Lower Body and Upper Guide: Act a guide on paper feeding
4) Solenoid and Segment Gear A’ssy: Delivers or isolates power to MPT pickup roller
5) Friction Pad: Prevent multiple paper feeding
6) Paper Load Detect Sensor: Detects paper presence in the tray
MPT can load 50 sheets of plain paper, and when MPT is opened to load papers, the base plate goes
down by cam and isolates with pickup roller for easy paper loading.
When loading papers, pull the extension out all the way and load papers less than 50 sheets on the tray
and adjust side fences to not to have papers move around.
When feed signal is sent, solenoid gets operated to disable segment gear and delivers power from main
motor to MPT’s pickup roller. Therefore, when the cam that operates with MPT’s pickup roller rotation
rotates, the base plate rises by base plate spring to generate feeding force by contacting loaded paper
with pickup roller and allows loaded paper to be fed in orders from top by pickup roller’s rotation.
