Sindoh M400 - Registration Roller Removal

Registration Roller Removal

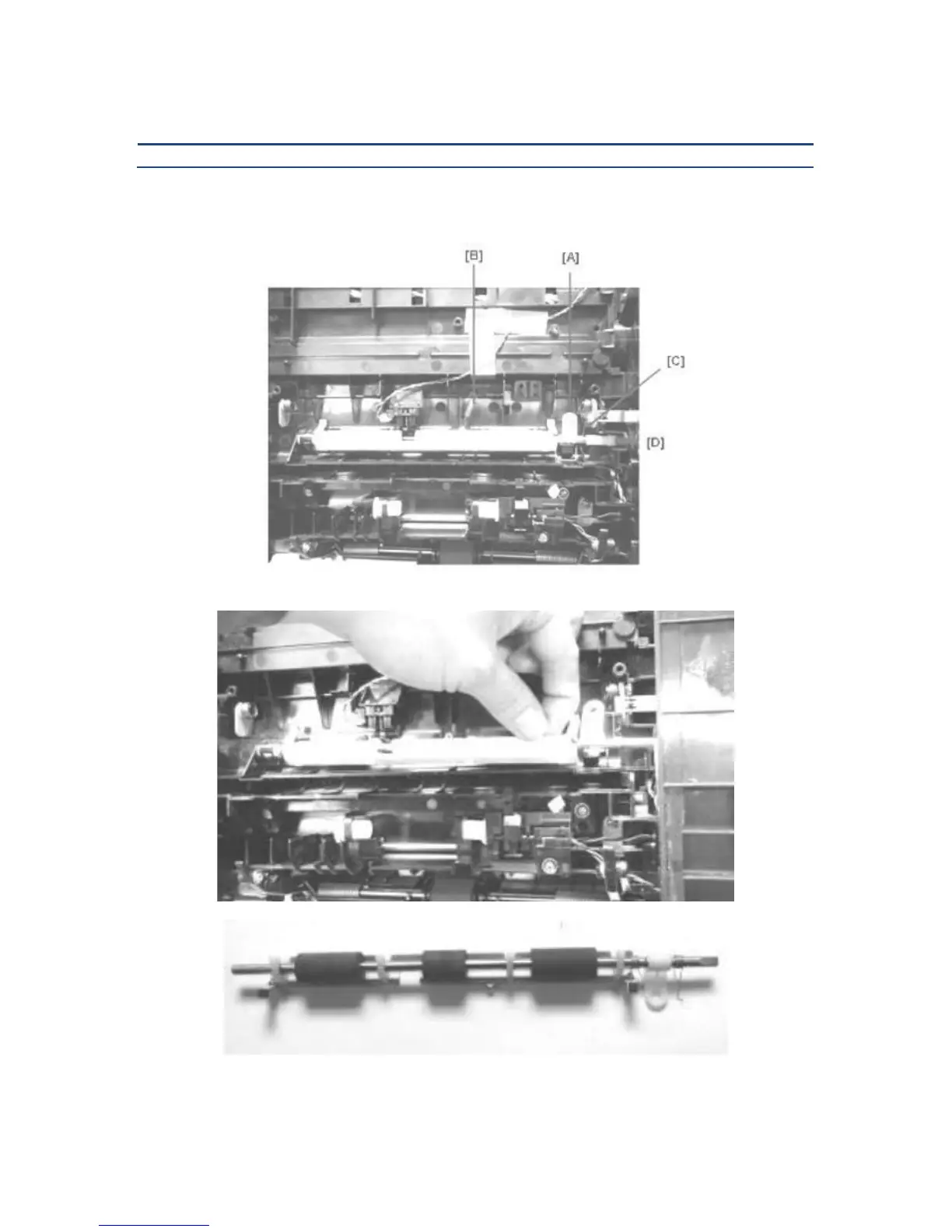

1. Remove the screw [A] and spring [B] from the bottom and disconnect spring [C].
2. Push coupler [D] outward to remove.
2. Hold the coupler removed from cover’s side and lift it to remove the Registration roller a’ssy.
