Sindoh M400 - Main Driving Gear Units; Main Driving Gear Unit Components; Installing;Removing Image Cartridge

1. Main Motor
2. Tray Feed Solenoid
3. Bypass Tray feeding solenoid
Main Driving Gear Units
Main Driving Gear Unit Components

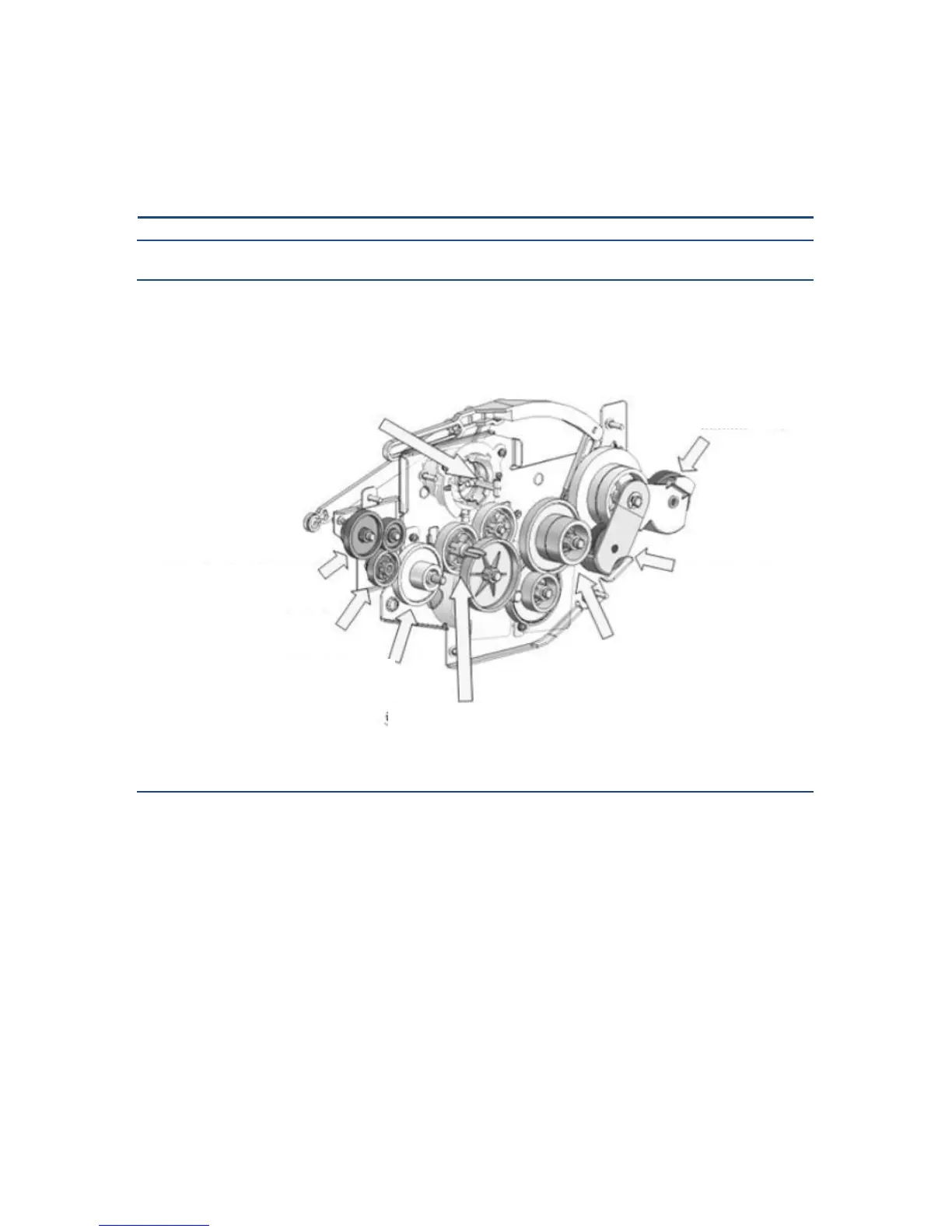

The machine has one main motor and the rotation of this motor is delivered to the train of gears
composed with various gears to operate developer/drum, bypass tray, Fusing unit, duplex unit,
Registration roller and pickup roller.
Installing/Removing Image Cartridge
1. Opening Front Cover
Operate Developer
Operate Fusing Unit
Operate Duplex unit
Operate Drum
Operate Registration Roller
Operate Pickup Roller
Bridge Roller
Operate Multipurpose Tray
