Sindoh M400 - Scanner Drive Assembly

Scanner Drive Assembly
1. Remove ADF assembly.
2. Remove the scan cover assembly.
3. Remove CIS assembly.

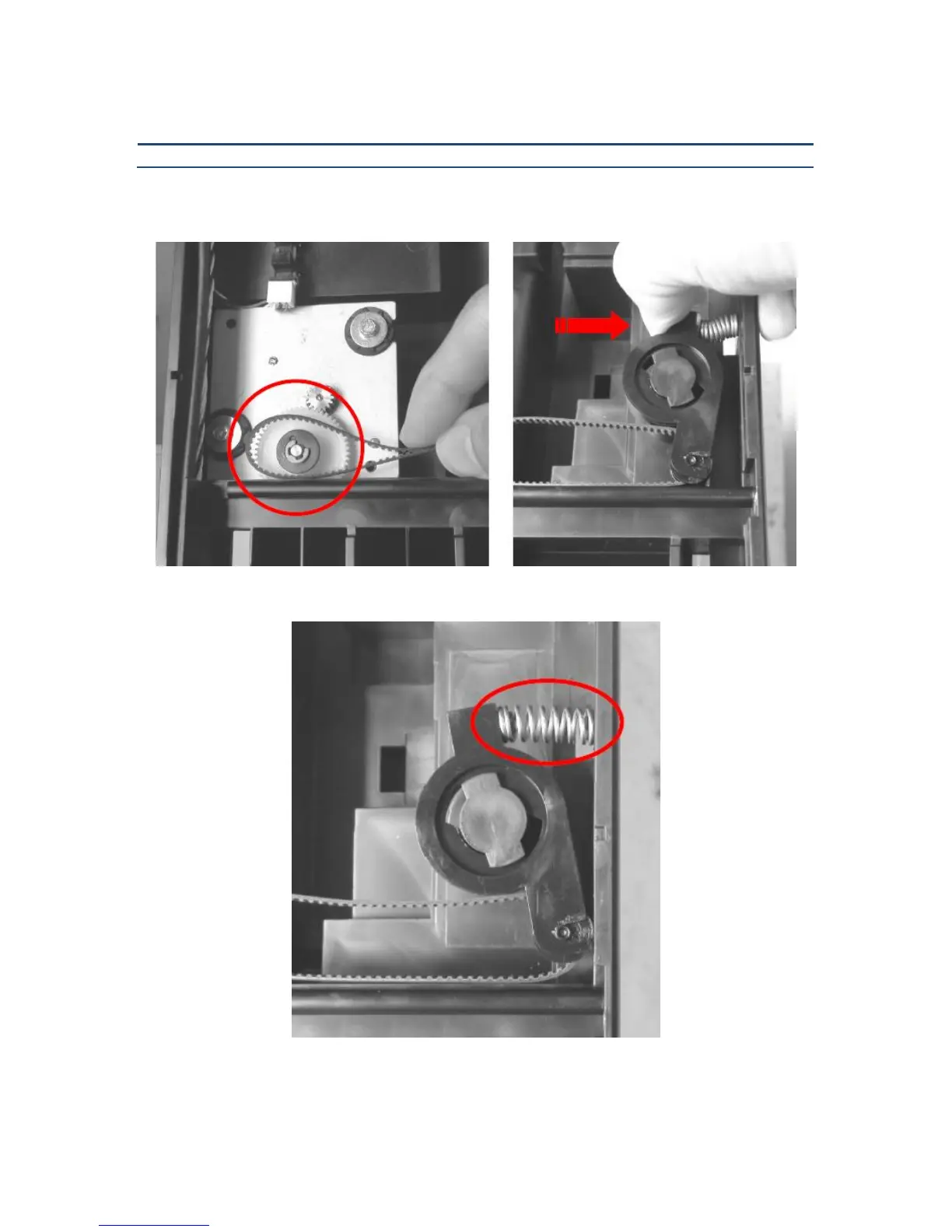

4. Press pulley housing to arrow direction to loosen the timing belt to remove timing belt from driving
gear.
5. Remove pulley housing spring and remove the pulley housing from scanner frame.
