A3 Clutch Assembly

1. Remove ADF assembly.

2. Remove ADF Top Guide and Motor Assembly.

3. Remove ADF back plate.

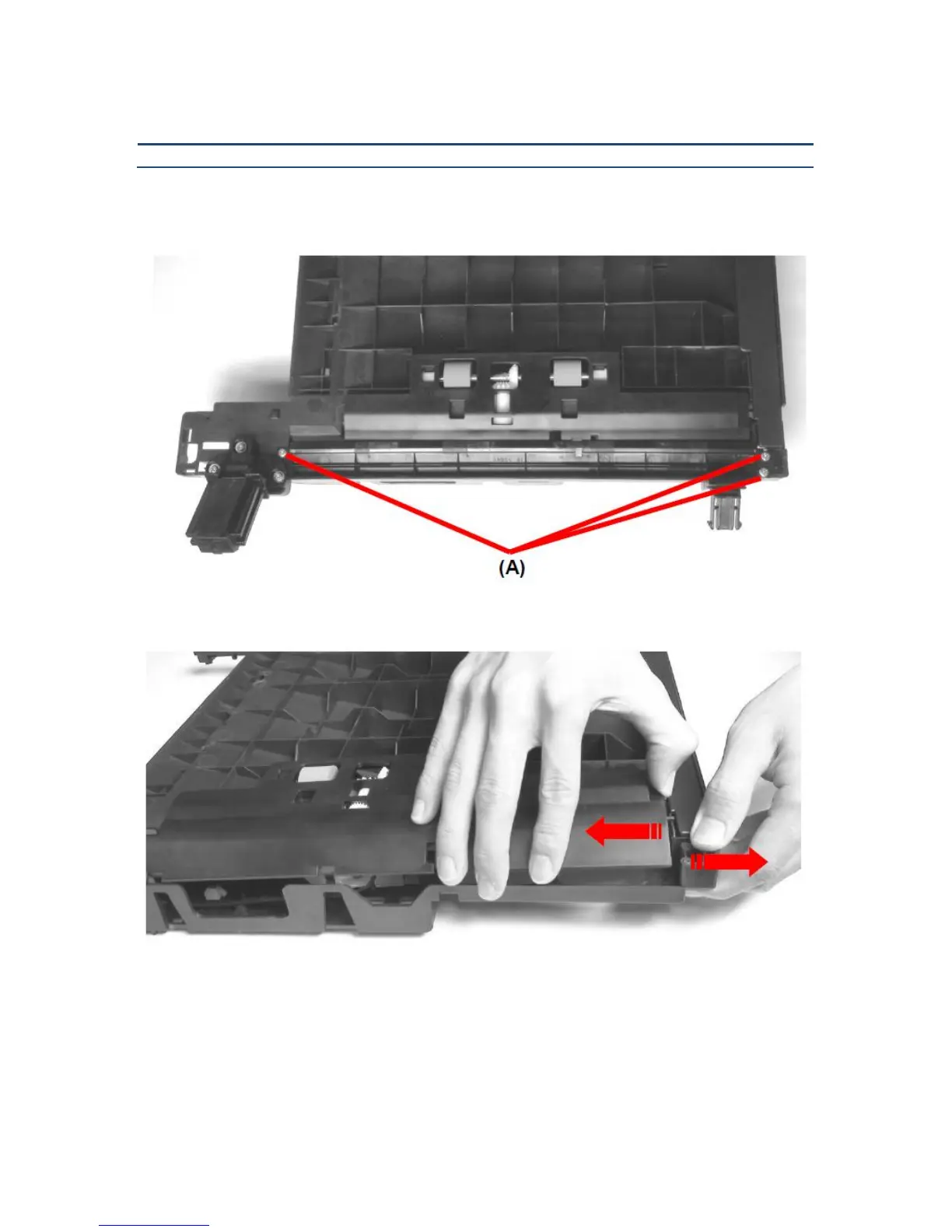

4. Remove 3 screws (A) and A3 guide.

5. Press it to arrow directions and remove A3 assembly from ADF frame and A3 clutch harness.
