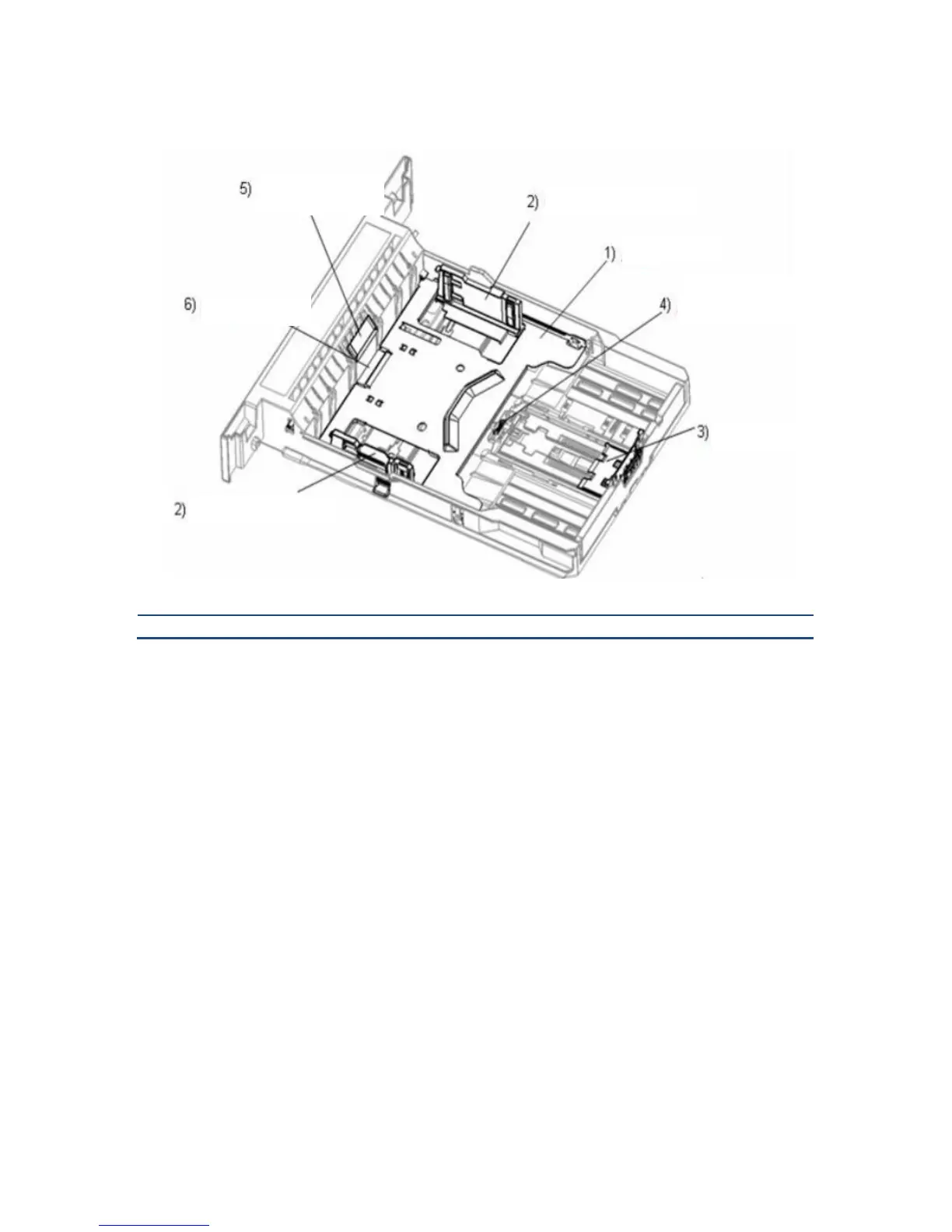

Main Tray is composed with the following 6 components and rolls of each component are as the
followings.
1) Pickup Roller: It picks the paper up by using tray’s feeding pressure.
2) Pickup roller Idler: It is at the both sides of pickup roller to reduce resistances from paper transfer
and contacts with feeder friction pad on pickup stand-by mode.
3) Pickup Shaft: It delivers the operation from segment gear to the pickup roller.
4) Pickup Roller Bushing: It holds the pickup roller’s position from both ends of pickup roller.
5) Pickup Solenoid: Pickup solenoid operates per feed timing to connect operation with pickup roller.
6) Segment Gear Assy: Some gear teeth are missing to disconnect the operation of main operation
and pickup roller’s operation at Pickup roller’s Home-Position.
