© Feb. 2023
60 TB20J Plus Maintenance Manual
POWER SYSTEM
Fuel System
Check the Fuel Level
The fuel level can be checked from the energized
ground controller display or platform controller display.

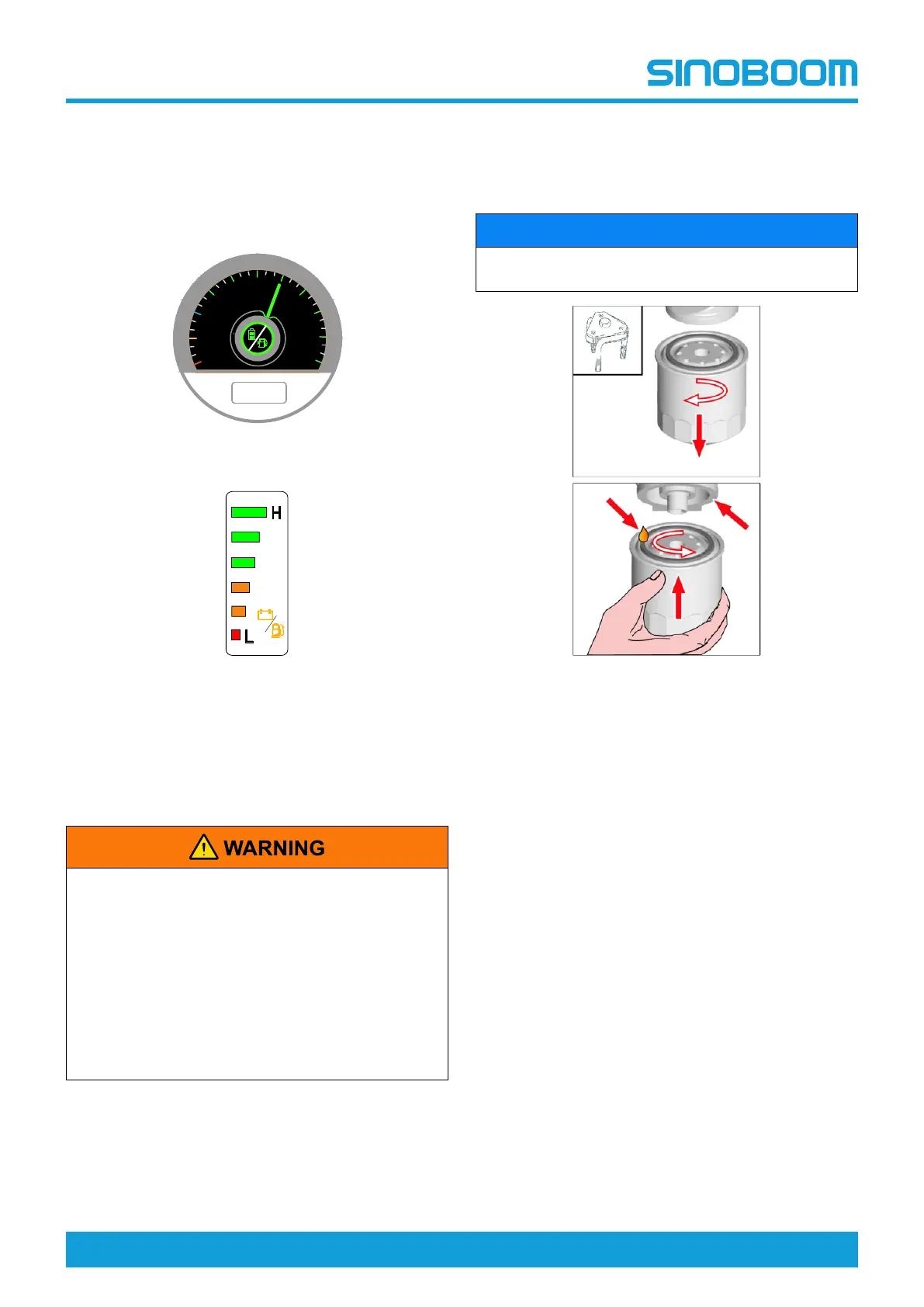

Fig 1 Fuel level (ground controller)
Fig 2 Fuel level (platform controller)
Fill the Fuel Tank
Turn off the engine, fill with correct diesel fuel according
to the Oil Requirements , and never overfill the tank.
• Do not mix gasoline, alcohol, or their mixture
with diesel fuel.
• Do not refuel the machine while the engine is
running.
• Due to the extremely accurate tolerance match
of the diesel injection system, it is critical to
keep the fuel clean and free of dirt or water.
The dirt or water entering the combustion sys-
tem can cause severe damage to the fuel pump
and injectors.
Replace the Fuel Filter Element
It is recommended to replace the fuel filter element
every 6 months or after 500 hours of operation.
NOTICE
Do not pre-fill the filter, or the filter may be
contaminated.
Fig 3 Diagram of replacing fuel filter element
1. If twist protection is installed (optional), remove the
clamp first.
2. Place an appropriate oil-collecting vessel under the
fuel filter.
3. Use a special tool to loosen and unscrew the filter
element.
4. Collect the drained fuel.
5. Wipe the sealing surface of the filter carrier with
clean, non-fiber cloths.
6. Apply a thin layer of oil to the sealing surface of the
new filter.
7. Screw on the new filter by hand until the gasket is
touching, then tighten it with the torque of 10-12Nm
(7-9ft-lb).
8. Secure the clamp on the twist protection (optional).
9. Vent the fuel line.
