Sintrones VBOX-3600 - VGA JST Connector

2.0 Internal Connector Specification
User’s Manual Page 2-1
2.0 INTERNALCONNECTORSPECIFICATION
2.1 VGAJSTConnector
Connector
size
2 X 8 = 16 Pin
Connector
type
JST-2.0mm-M-180
Connector
location
VGA1
Connector
pin
definition
Pin Signal Pin Signal
1 RED 2 GREEN
3 BLUE 4 NC
5 CER_DET 6 GND
7 GND 8 GND
9 +5V 10 GND
11 NC 12 DAC_SDA
13 HSYNC 14 VSYNC
15 DAC_SCL 16 NC

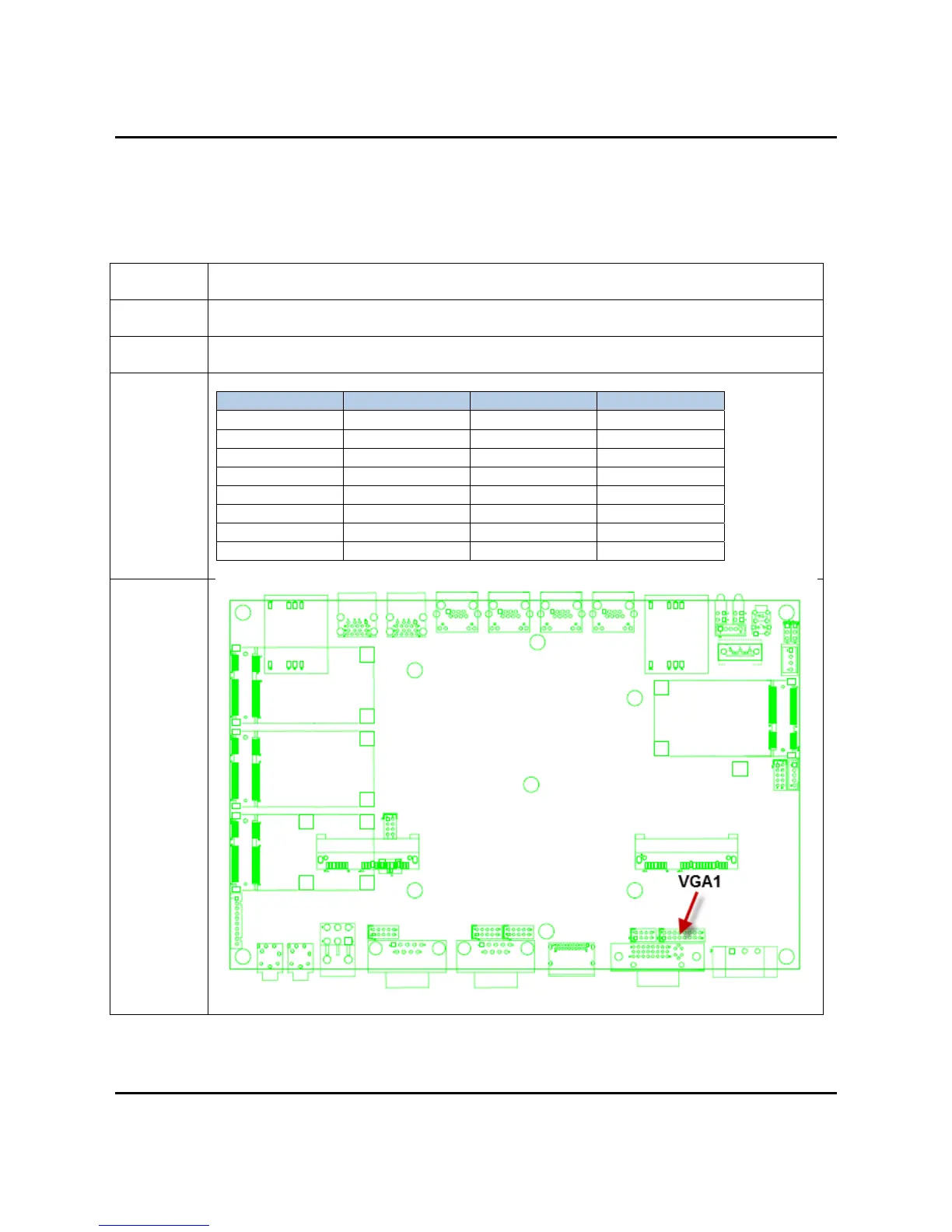

Connector
map
