Sintrones VBOX-3600 - RJ45 Connector (LAN1)

3.0 External Connector Specification
User’s Manual Page 3-3
3.3 RJ45Connector(LAN1)
Connector
size
12 Pin
Connector
type
RJ45+LED
Connector
location
LAN1
Connector
pin
definition
Pin Signal Pin Signal
1 LAN0_MDI0P 2 LAN0_MDI0N
3 LAN0_MDI1P 4 LAN0_MDI2P
5 LAN0_MDI2N 6 LAN0_MDI1N
7 LAN0_MDI3P 8 LAN0_MDI3N
9 LAN0_ACT# 10 LAN0_ACTPW
11 LAN0_LINK# 12 LAN0_LINKPW

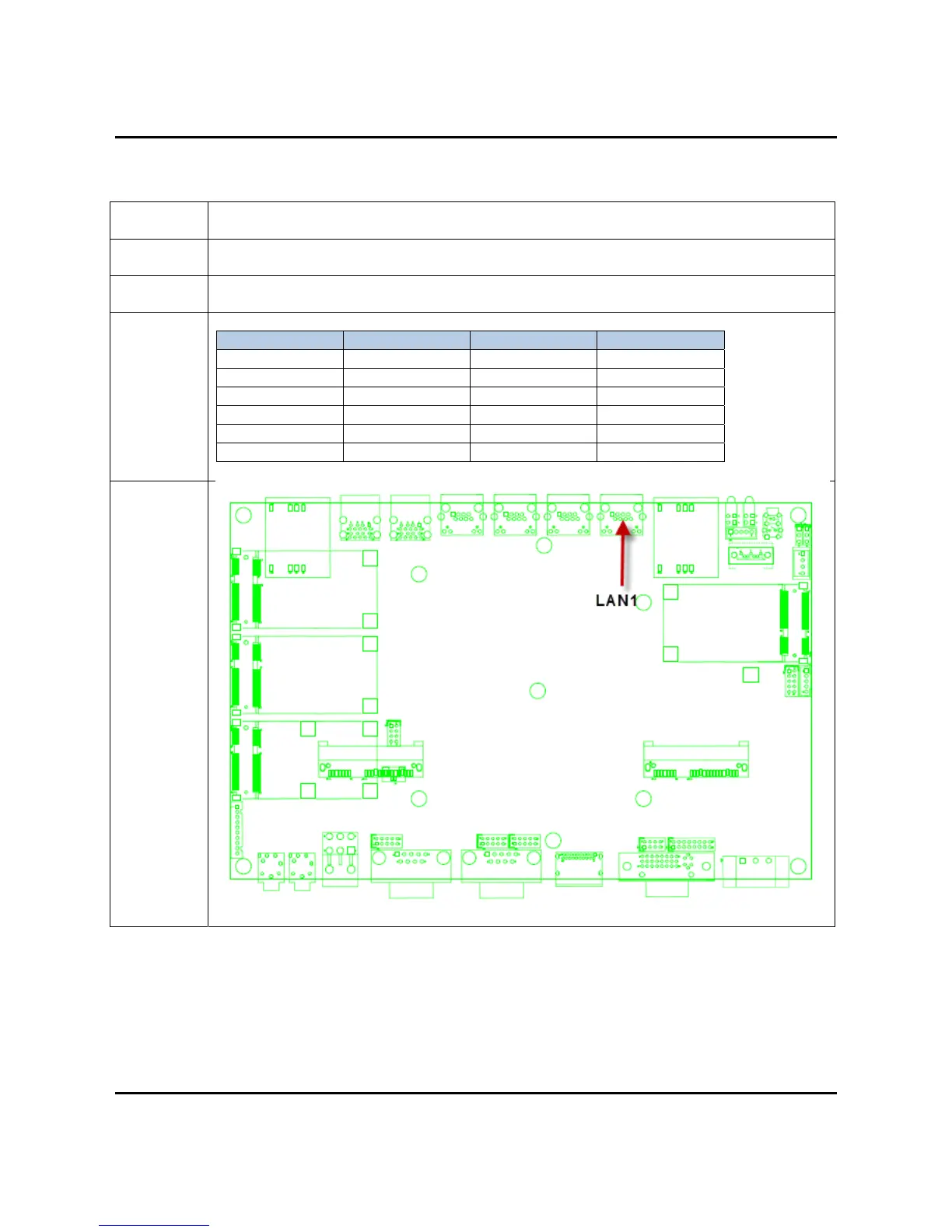

Connector
map
