Sintrones VBOX-3600 - ATX 6 PIN Connector (POWER OUT)

3.0 External Connector Specification
User’s Manual Page 3-14

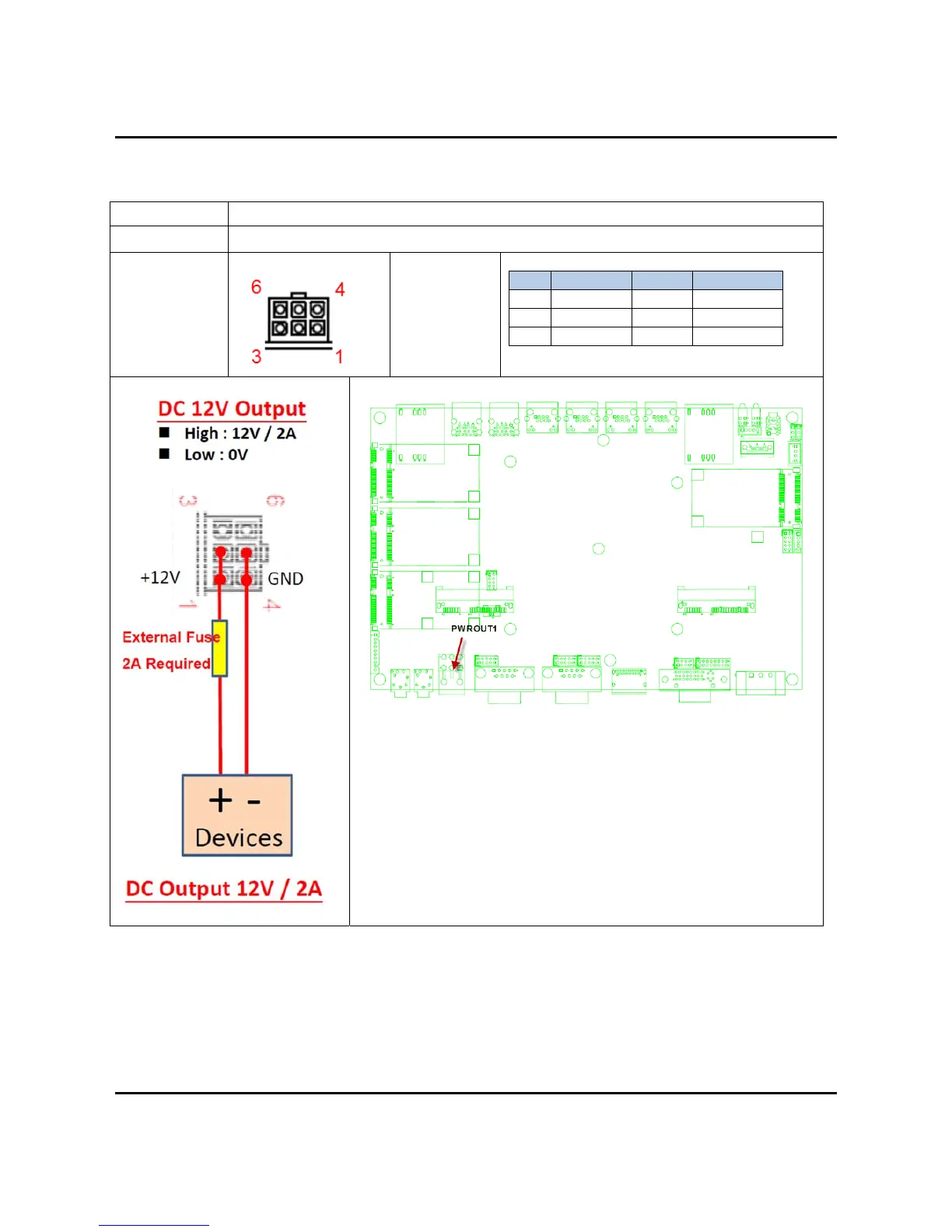

3.14 ATX6PINConnector(POWEROUT)
Connector size 6 Pin
Connector type ATX 6PIN
Connector
location
PWROUT1 Connector pin
definition
Pin Signal Pin Signal
1 +12V 2 +12V
3 EXT_DI1 4 GND
5 GND 6 EXT_DI2
Connector map





