Sintrones VBOX-3600 - GPIO JST Connector

2.0 Internal Connector Specification
User’s Manual Page 2-4
2.4 GPIOJSTConnector
Connector size 2 X 5 = 10 Pin
Connector type JST-2.0mm-M-180
Connector
location
GPIO1
Connector
pin definition
Pin Signal Pin Signal
1GPI0 2 GPI1
3GPI2 4 GPI3
5 GPO0 6 GPO1
7 GPO2 8 GPO3
9 GND 10 +12V

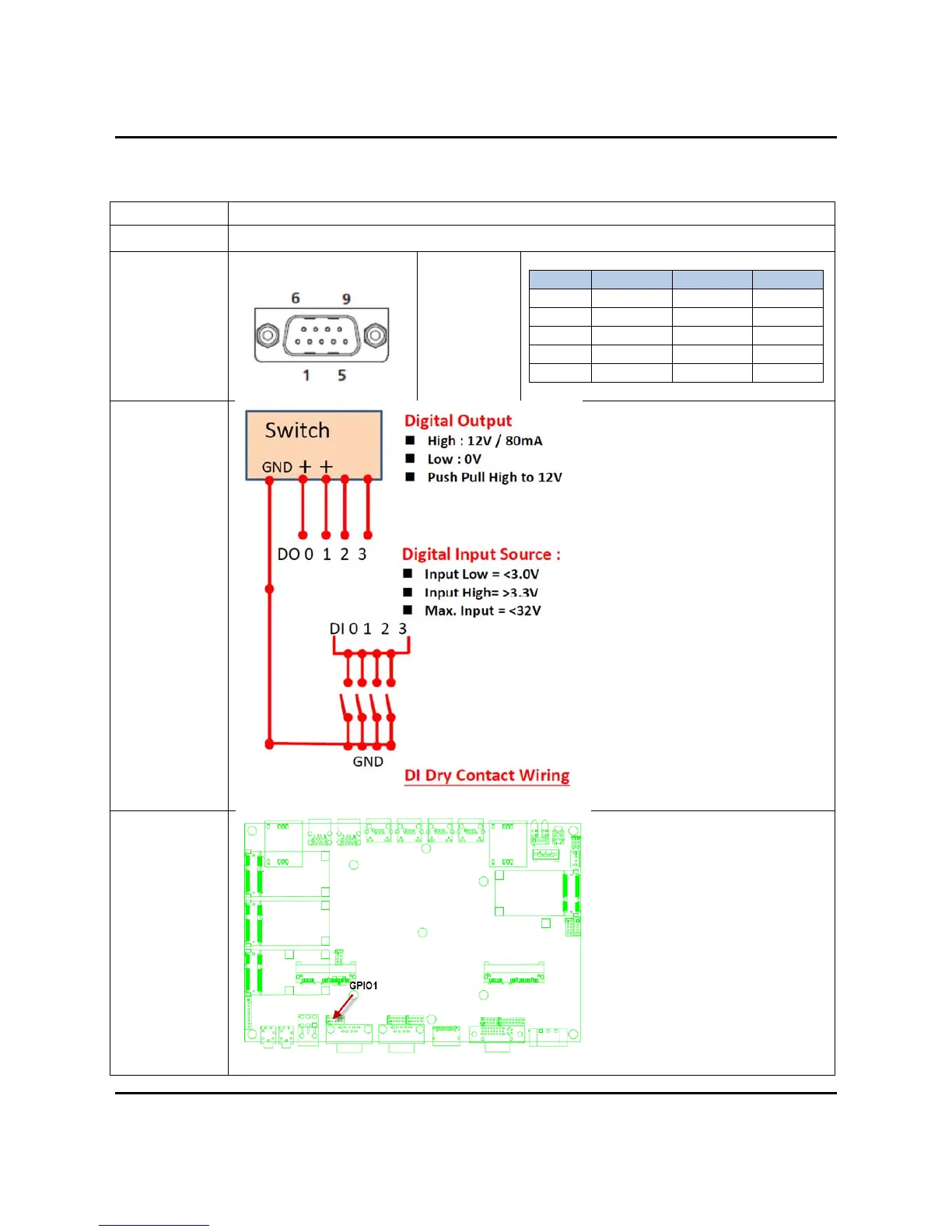

Connector map
