2.0 Internal Connector Specification
User’s Manual Page 2-10
2.10 AUDIOJSTConnector
Connector
size
1 X 10 = 10 Pin
Connector
type
JST-2.0mm-M-180
Connector
location
AUDIO1
Connector
pin
definition
Pin Signal
1 NC
2 NC
3 NC
4 NC
5 NC
6 NC
7 MIC_IN_ L
8 MIC_IN_
R
9 MIC-JD
10 GND

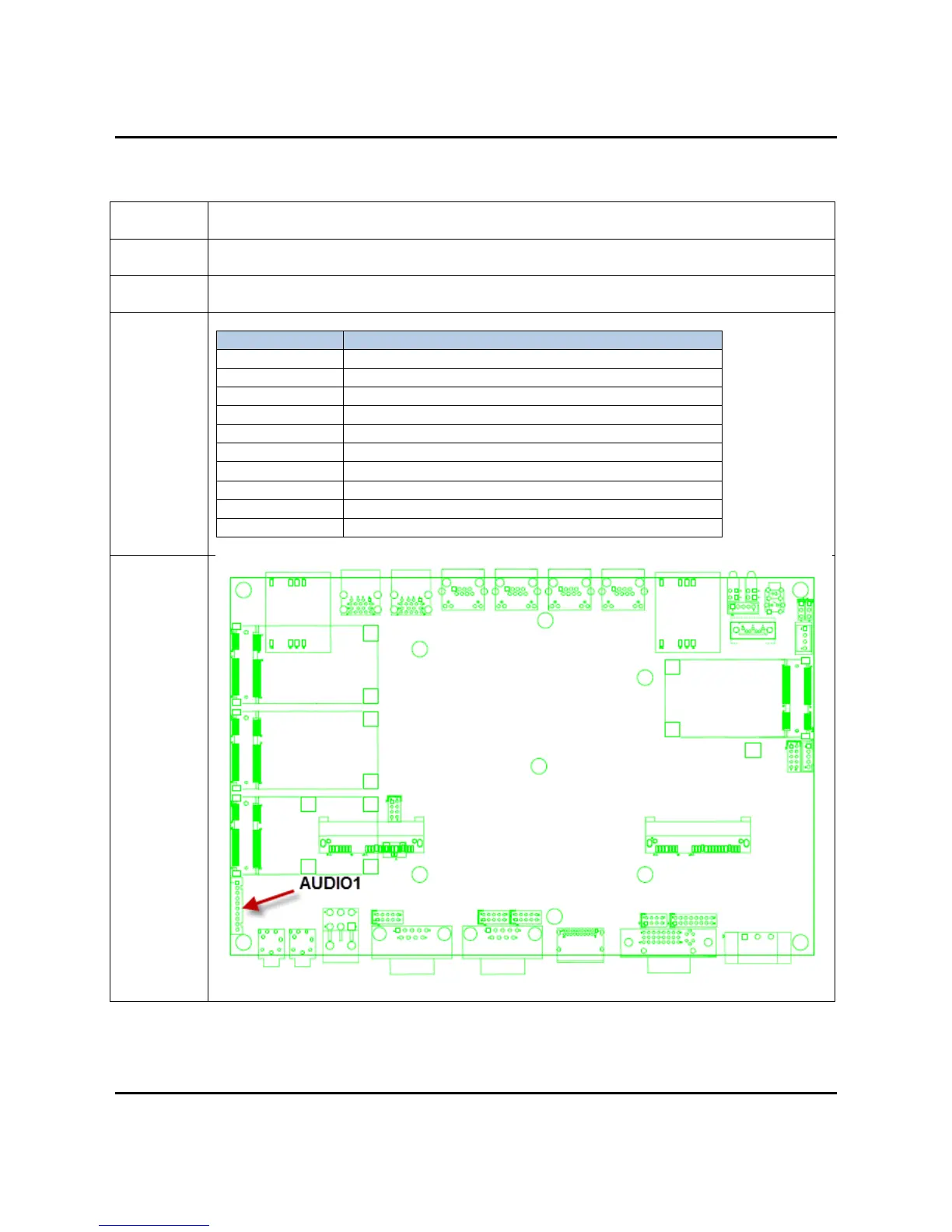

Connector
map
