Sintrones VBOX-3600 - USB JST Connector (USB2)

2.0 Internal Connector Specification
User’s Manual Page 2-2
2.2 USBJSTConnector(USB2)
Connector
size
2 X 4 = 8 Pin
Connector
type
JST-2.0mm-M-180
Connector
location
USB2 (Co-layout with DVI-I1)
Connector
pin
definition
Pin Signal Pin Signal
1 5VSB 2 5VSB
3 USB_7N 4 NC
5 USB_7P 6 NC
7 GND 8 GND

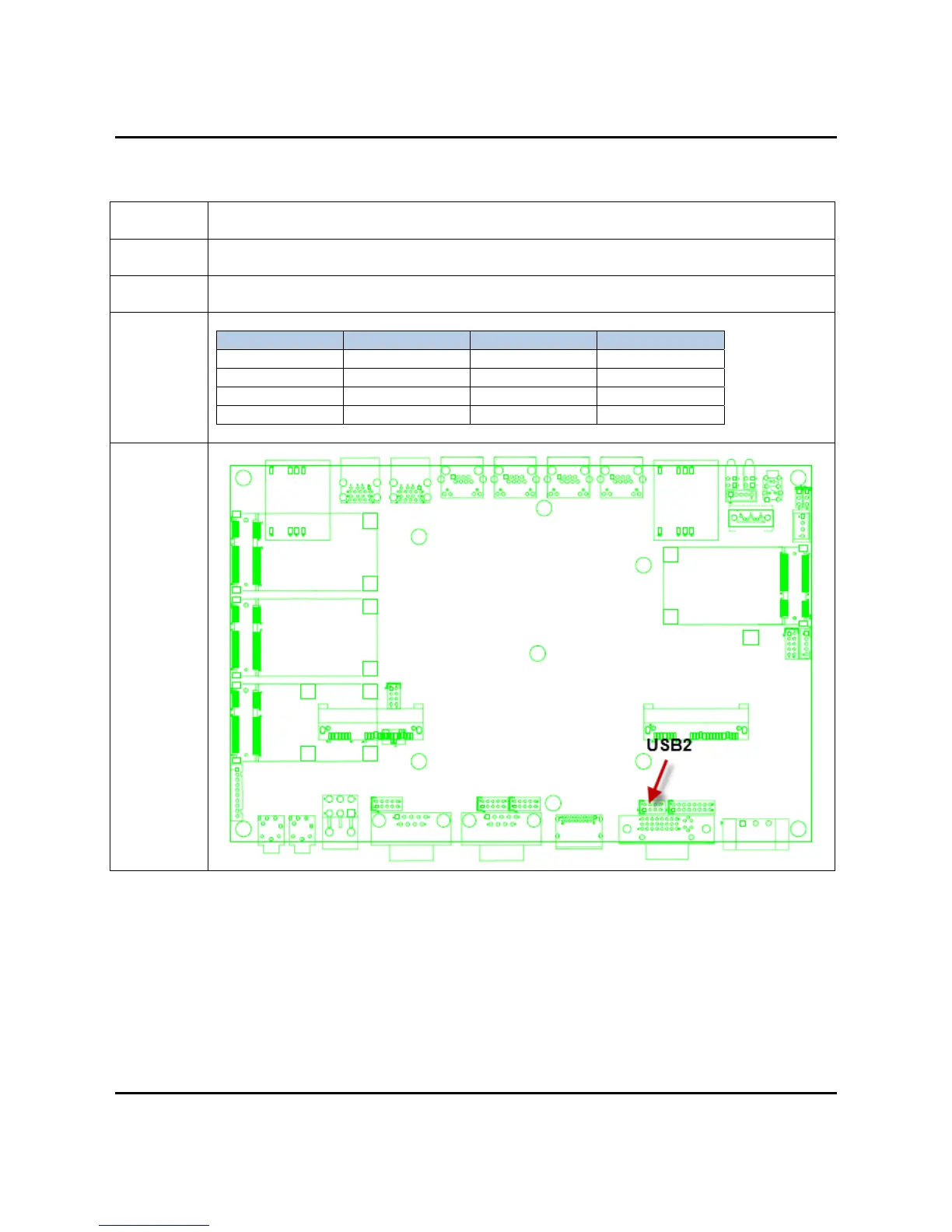

Connector
map
