Sintrones VBOX-3600 - USB3.0 Type A Connector

3.0 External Connector Specification
User’s Manual Page 3-1
3.0 EXTERNALCONNECTORSPECIFICATION
3.1 USB3.0TypeAConnector
Connector
size
8 Pin
Connector
type
USB3.0 Type A
Connector
location
USB3
Connector
pin
definition
Pin Signal Pin Signal
1 5VSB 2 USB0
_
N
3 USB0
_
P4GND
5 SSRX0_ON 6 SSRX0_OP
7 GND 8 SSTX0_ON
9 SSTX0_OP 10 5VSB
11 USB1
_
N12USB1
_
P
13 GND 14 SSRX1_ON
15 SSRX1_OP 16 GND
17 SSTX1_ON 18 SSTX1_OP

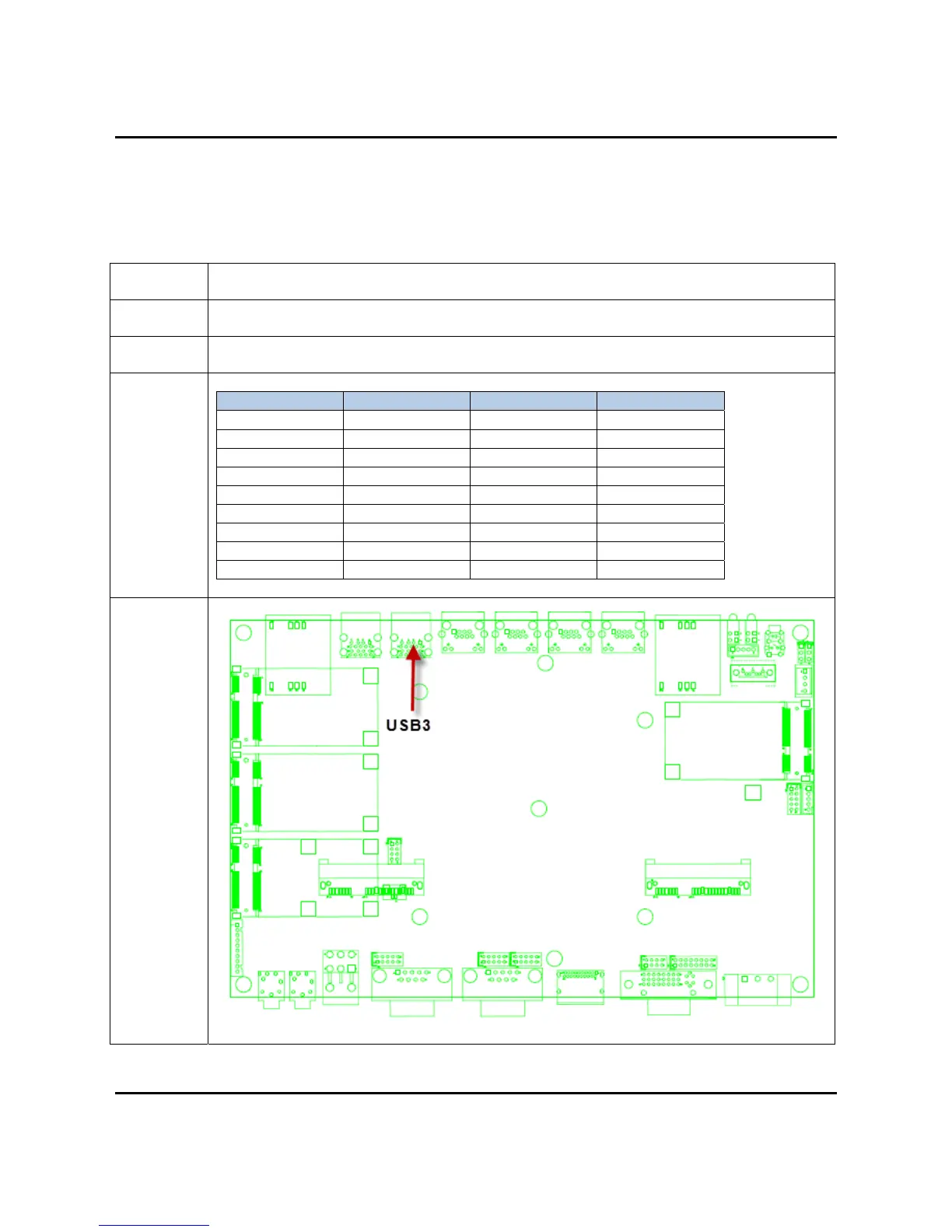

Connector
map
